ID: 5549

17" fanless touch panel pc industrial embedded computer i3 8145U resistive touch tpm2.0 COM/LAN/USB

0.0 ( votes)
US $ 2169.78 - 2283.78 / piece


  • CPU:Intel Core i3-8145U Dual Core 2.1GHz(L3 Cache:4MB)

  • Memory:DDR4L 2400MHz 4GB, Up to 32GB

  • Harddisk:1
    x mSATA 64G SSD (Up to 120G / 250G / 500G SSD(if you need other number
    of memory or harddisk,just ask customer service add an option )

  • Audio:Realtek ACL662 Audio controller

TPM standards ensure secure data storage, as well as platform authentication and integrity auditing.

TPM 2.0’s three hierarchies permit multiple root keys for improved security over TPM 1.2 standards.

This provides better resistance to malware and rogue applications affecting legitimate processes.

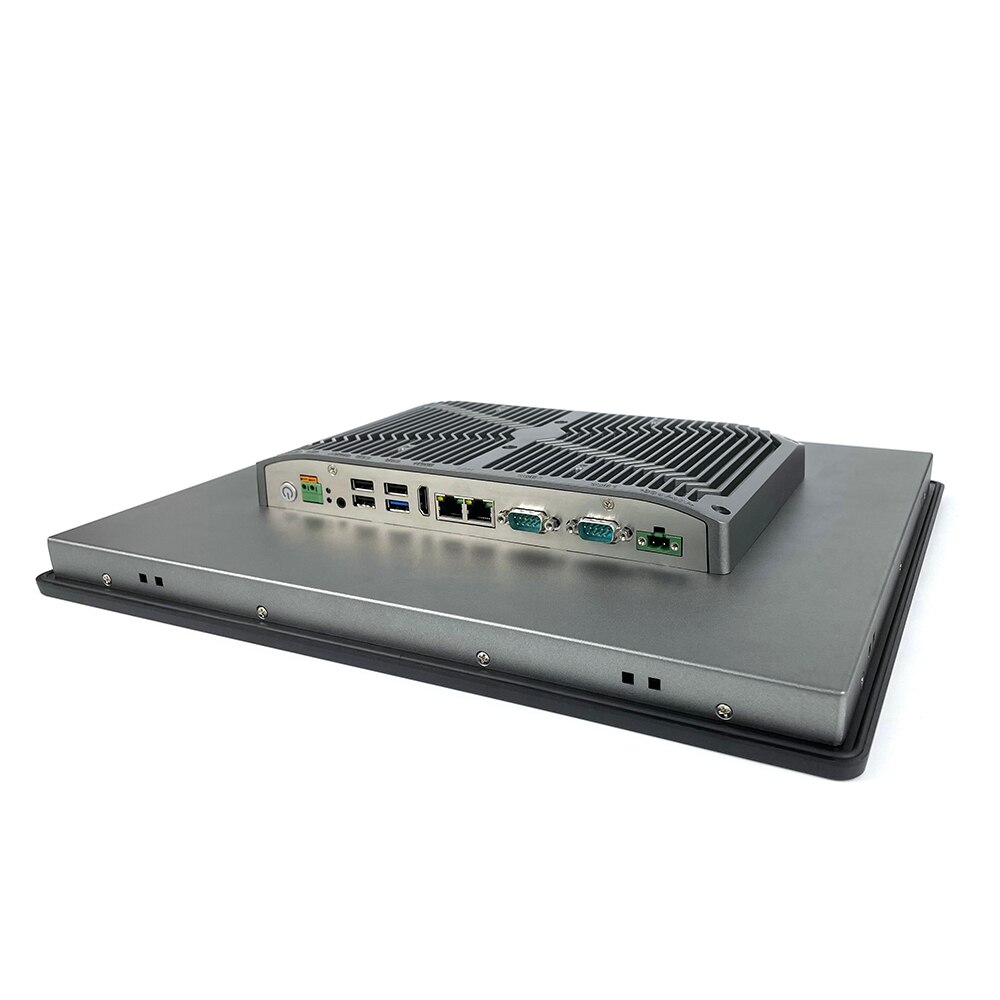

I / O Ports

  • 1 x H-DMI

  • 2 x LAN(Intel I211-AT GbE LAN,support Wol and Pex)

  • 4 x USB3.0

  • 2 x RS-232 / 422 / 485(can be switch via BIOS set)

  • 1x audio_out and  Mic_in  2 in 1 port

  • Wireless Network:Wifi+Bluetoth optional

I/O ports:COM can be add 4 ports ,USB can be add 6 ports ,also can be
add GPIO,4G

LCD Panel

  • Panel Size:17" LED

  • Resolution:1280 x 1024

  • Aspect Ratio:5:4

  • Display Brightness:400 cd/m2

  • Contrast Ratio:1000:1

  • Backlight Lifetime:50000 Hr (min.)

  • Viewing Angle:88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

  • Touch Screen Type:5 Wire Resistive touch

  • Transmittance:>80%

  • Response Time:<10ms

  • Surface Hardness:≥3H

  • Supply Voltage:5.0V DC

  • Touch Life:≧ 3500W


  • Material:High-strength Al-alloy.(Fanless design,Heat dissipation shell )

  • Mounting:1.VESA mounting 100x100mm(wall/desktop mounting), 2.Embedded installation:include 8pcs buckl, Cut-out Size:381 x 313 mm

  • Packing Size:500 x 180 x 450 mm,weight:8kg

  • Waterproof Rate:IP65

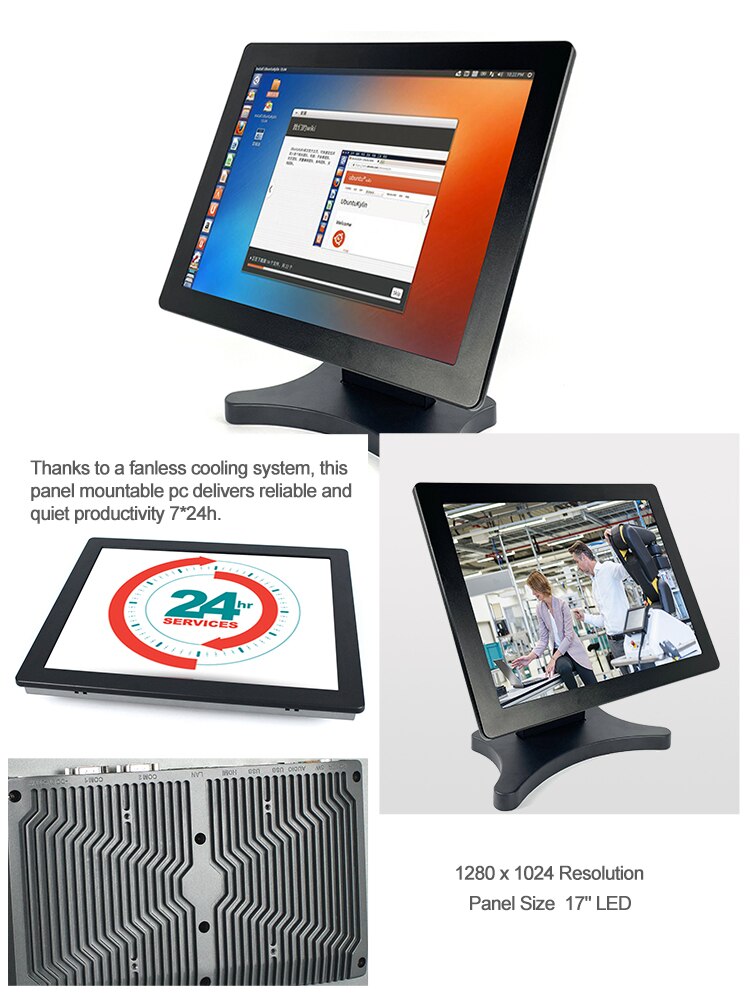

The industrial touch panel PC is a slim design made for standard industrial
applications with thin client terminal.IP65 waterproof front panel ,5 Wire Resistive Touch Screen
Type, for easy control and manage production processes.industrial PC is
the most robust available designed for heavy industry application such
as dairy farms and automotive and
beverage,pharmaceutical,cleanrooms,kiosk and retail,factory
automation,intelligent transportation.

Power and Environment

  • -20~70°C wide Operating Temperature,continued work in 7x24 hours.

  • DC9~36V Working Voltage,over voltage,over current,reverse protect.

  • motherboard set with Anti-static chip, which with 6KV(touch), 8kv(non touch) , 600W Surge.

Package list

  • 1x PPC-3017SAR Series Industrial Panel PC
  • 1x Utility DVD Driver
  • 8x Embedded Buckles
  • 1x Power Adaptor

  • Plug Type: EU plug
  • Color: Gray
  • Package: Yes
  • Model Number: PPC-3017SAR
  • Type: Embedded Computer
  • Brand Name: QI YU TAI
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • CPU: Intel Core i3-8145U Dual Core
  • Memory: DDR4L 2400MHz 4GB, Up to 32GB
