433Mhz Remote Control Switch for Light,Door, Garage Universal Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller
SALE
ID: 45514

433Mhz Remote Control Switch for Light,Door, Garage Universal Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller

4.8 (550 votes) | 856 orders
Price: US $11.44 - 28.76 / piece
Discount Price:
US $ 9.95 - 25.31 / piece
-13%
Ships From
Color
Quantity

Buy Now
Add to Cart






433Mhz Remote Control Switch for Light,Door, Garage Universal ac Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more


  Package include
Option Package 1:

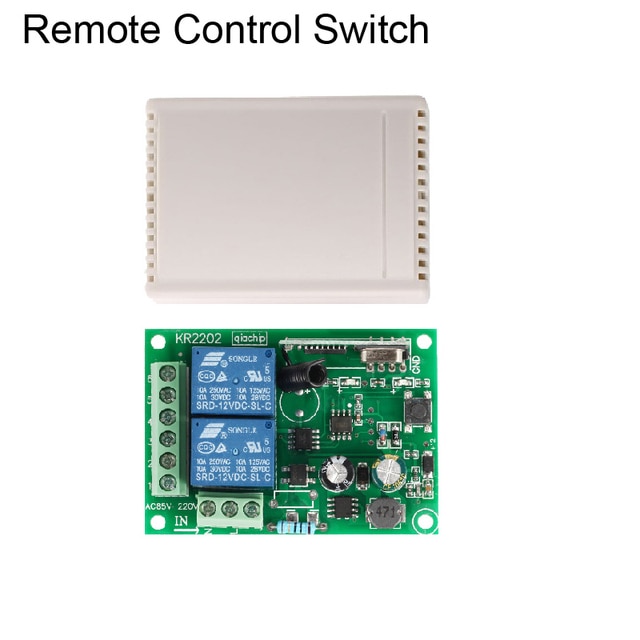

Receiver module *1PCS(Include shell)
Option Package 2:

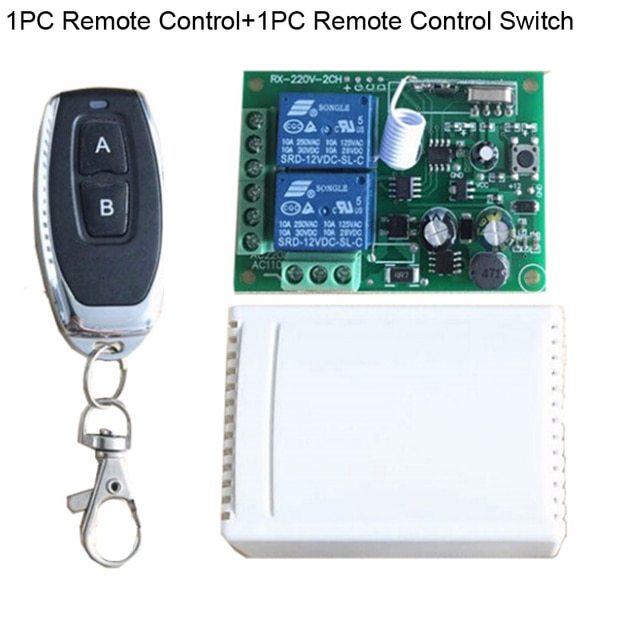

Receiver module *1PCS(Include shell) and 1PCS Remote Control (Included Battery)

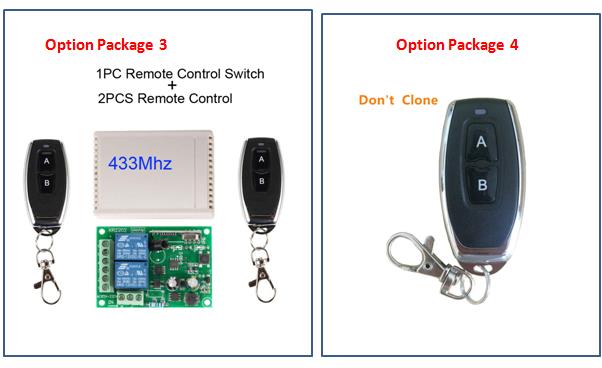

Option Package 3:

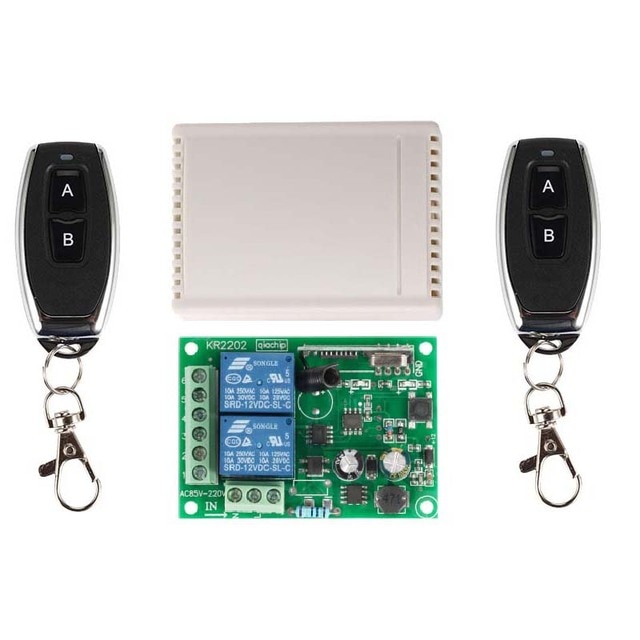

Receiver module *1PCS(Include shell) and 2PCS Remote Controls (Included Battery)
Option Package 4:

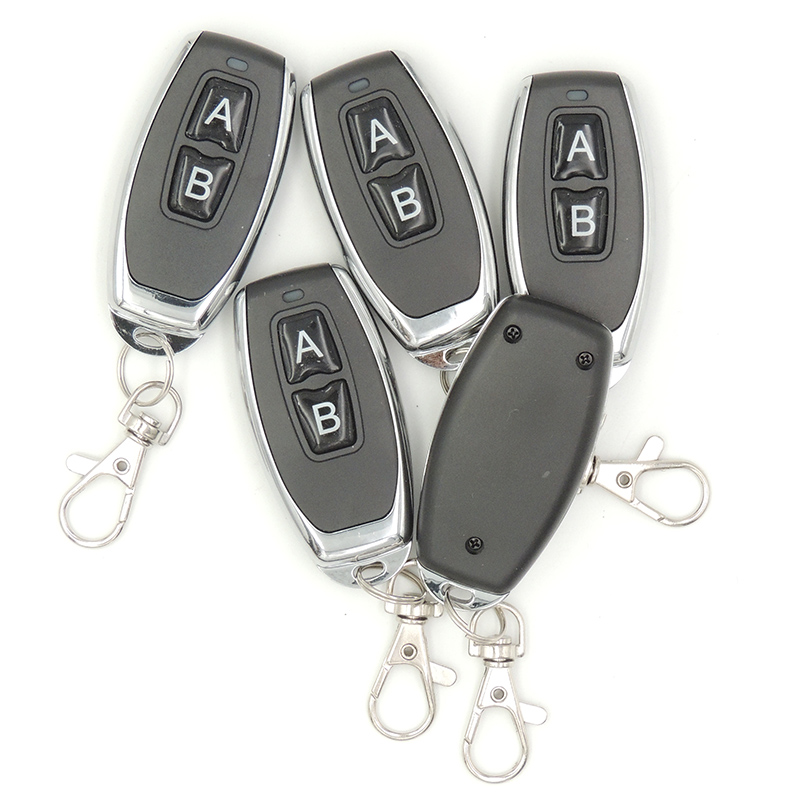

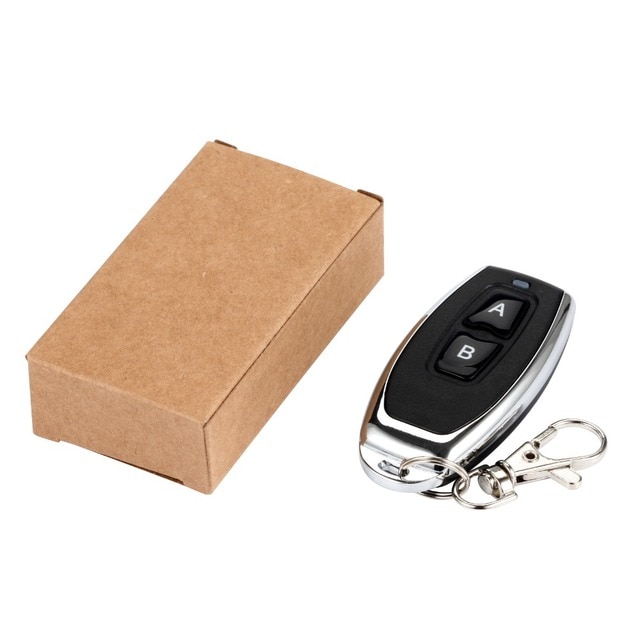

1PCS Remote Control (Included Battery)
  Display

  Technical Data

  • Input Power:AC 85V-250V

  • Standby Current:<8.5MA

  • RF Frequency: 433M

  • RF working mode: superheterodyne

  • Receive sensitivity: > 97 dbm

  • Transmitting distance: 20-100 m ( open space)

  • Decoding mode: MCU software decoding

  • Remote storage: 25 pcs

  • Support remote type: Learning code (1527 encoding )

  • Working mode: Momentary, Toggle

  • Wiring type:fixed terminal

  • Output Terminal :NO , NC , COM

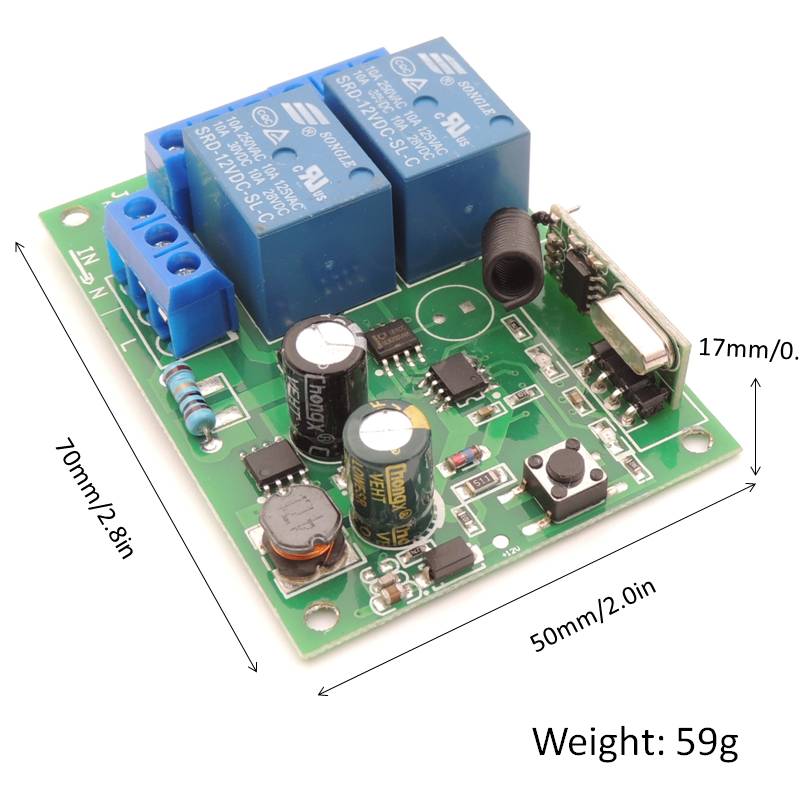

  • Dimension of PCB:68*47*26mm  (L,W,H)

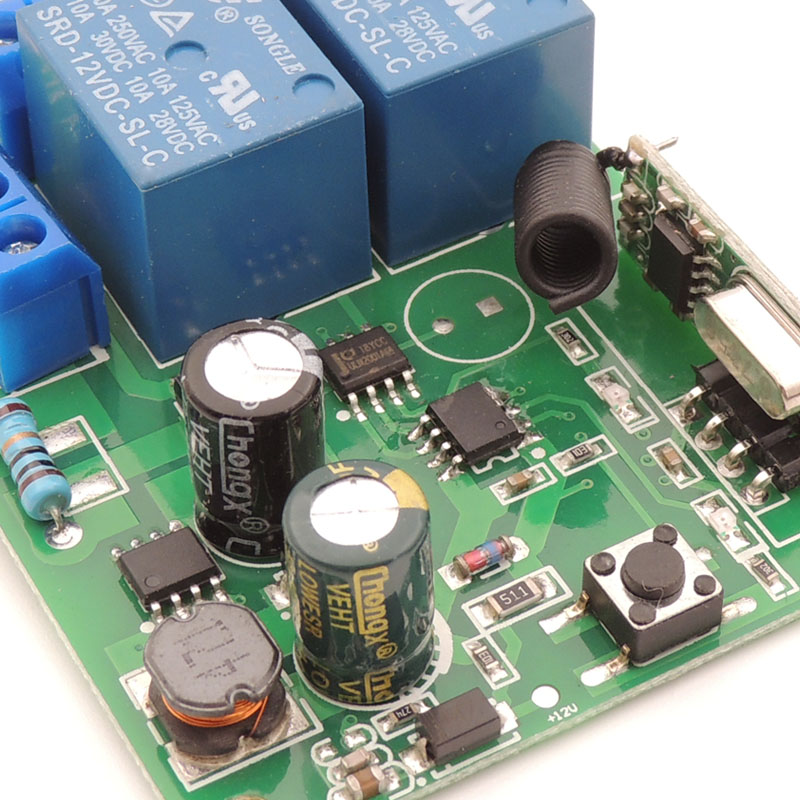

  Products  Display

Tips:
All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.

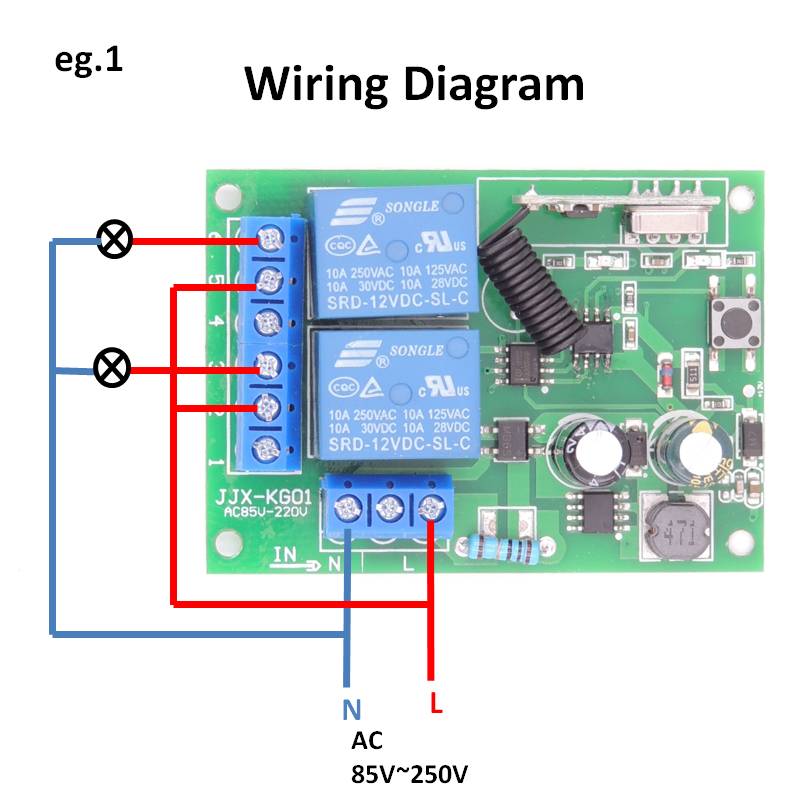

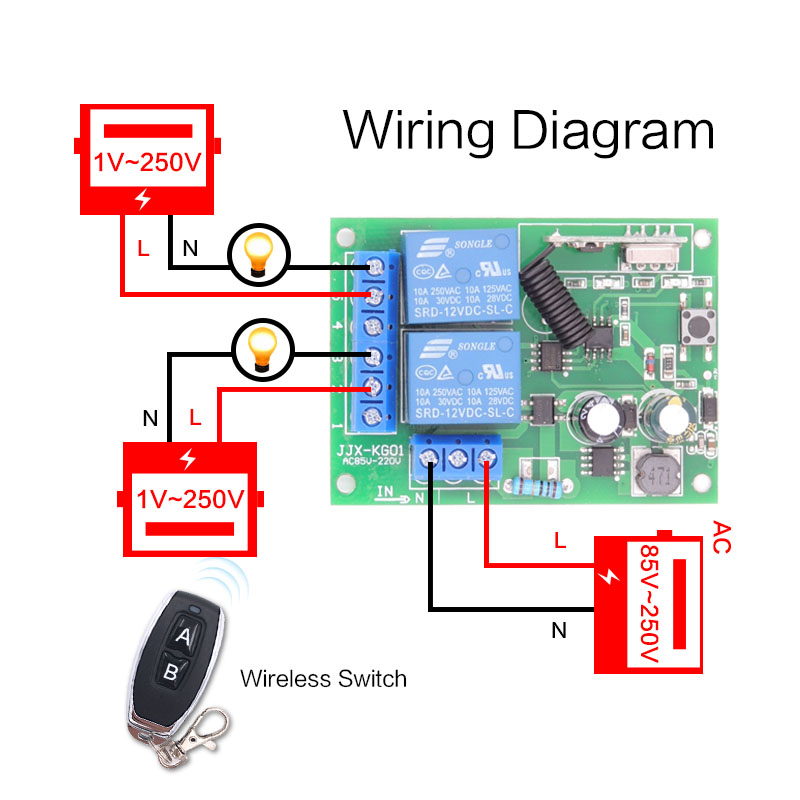

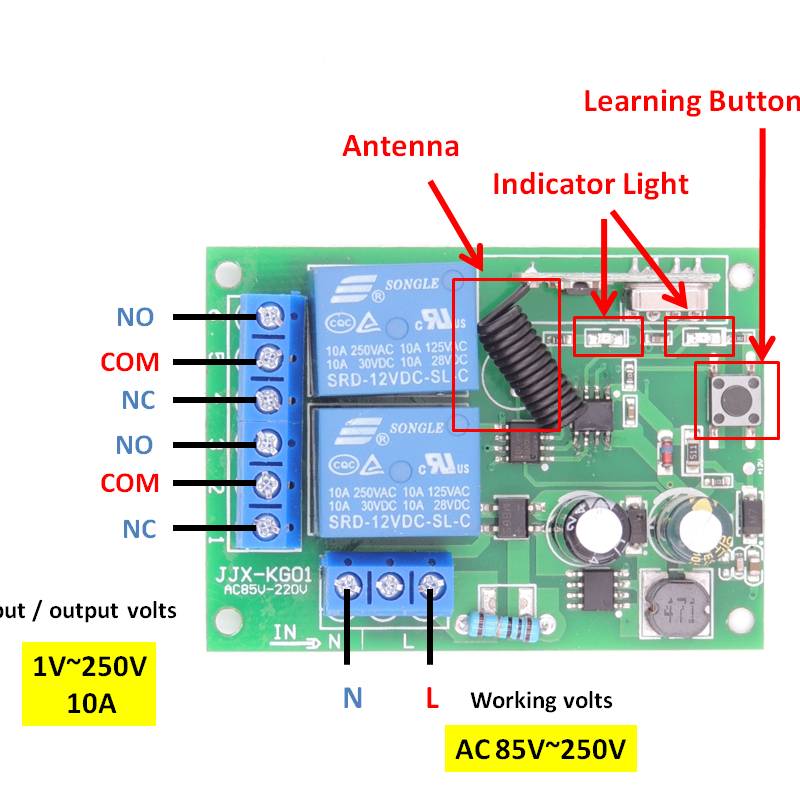

  Wiring diagram

L(Live wire): Input 85V - 250V Live wire
N(Neutral wire):Input 85V - 250V Neutral wire
NC:Normally closed Output
COM:Common port
NO:Normally open Output
  Circuit Connection modes



  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.


Remote mode 1: Momentary Mode

Press and hold on one button -> ON; Release the button -> OFF

Details:
Press one button (on the  remote control) , the relay (on the receiver board) turn to switch-on ;
Release the button, the relay turn to  switch-off .


Remote mode 2: Toggle Mode

Press one button -> ON; Press the same button again -> OFF

Details:
Press one button (on the  remote control) once , the relay (on the receiver board) turn to  switch-on ;
Press the same button again , the relay turn to  switch-off.


Remote mode 3:  Latched  Mode

Press button "A" -> ON; Press button "B" ->  OFF(at the same time another channel ON)

Details:
Press one button (on the remote control) once, the relay (on the receiver board) turn to  switch-on ;
Press the another button, the relay turn to switch-off( at the same time another channel ON ).



  Set Up

   -  Part 1:Delete the existing data about remote mode

Note: When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about remote mode for the first application.

Press the learning button on the  Receiver Switch Module board  8 times ,  the existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.



  -  Part 2: Set up the Remote Mode

Set up : Momentary Mode

STEP 1
Press the learning button on the Receiver board once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press one button on the  Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3
Press another button on the Remote Control, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.


Set up :Toggle Mode

STEP 1
Press the learning button on the Receiver board twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press one button on the Remote Control, the LED on the receiver board will flash on then turn off ,  indicating the button was learned.

STEP 3
Press another button  on the  Remote Control , watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

Set up :L atched Mode
STEP 1
Press the learning button on the Receiver board 3 times.

STEP 2
Press one button on the Remote Control,

STEP 3
Press another button   on the   Remote Control
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*





  • Support APP: No
  • Frequency: 433 MHz
  • Channel: 2
  • Package: Yes
  • Model Number: KR2202 garage remote control mando garaje
  • Wireless Communication: RF
  • Use: Universal,Lighting,Electric Door,Automated curtains,Switch
  • Brand Name: Diese
  • Origin: Mainland China
  • Certification: CE,RoHS
  • Working Voltage: AC85-250V
  • Quiescent Current: 8.5mA
  • Decoding: 1527
  • RF working mode: superheterodyne
  • shell: Yes
  • Matching Mode: Intelligent Learning code
  • Working temperature: -10 ~ +80
  • PCB dimension: 68*47mm
  • Modulation Mode: ASK
  • USE: Lighting,Automated curtains,Electric Door,Universal
  • Max Load: 2200W
  • Max Current: 10A
  • Control distance: more than 50 meters in open area
  • Maximum remote storage: 25 Remote Controls
