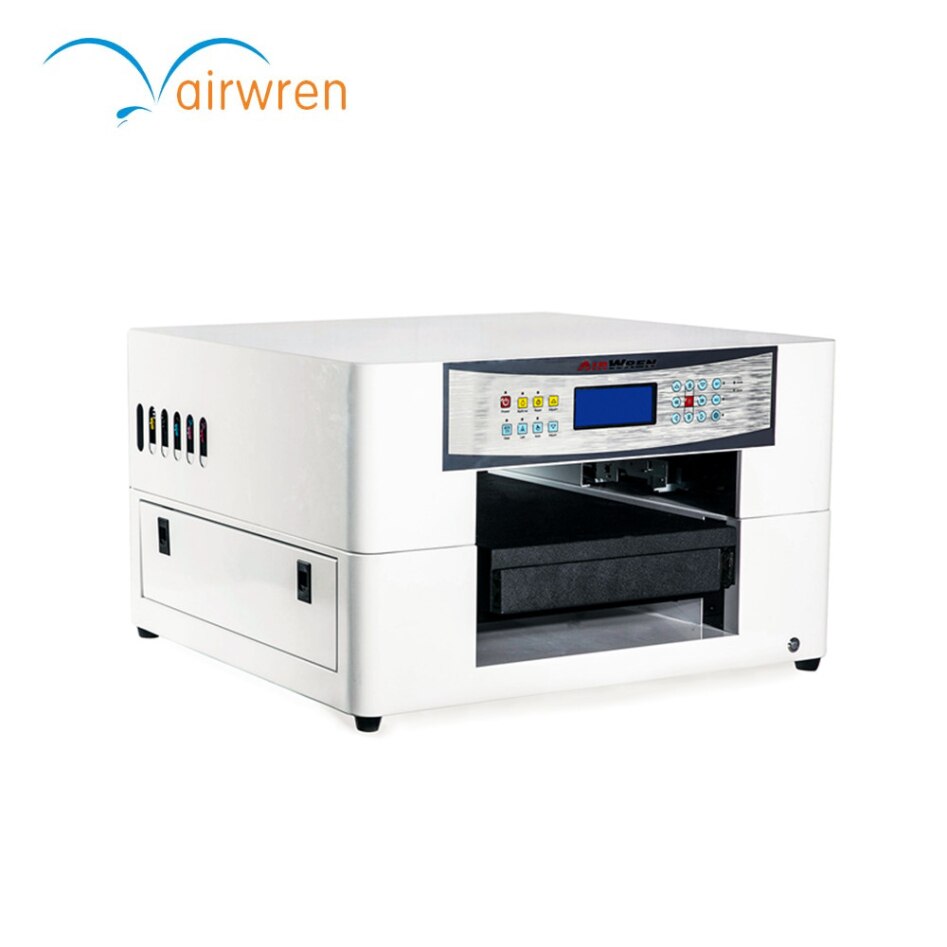

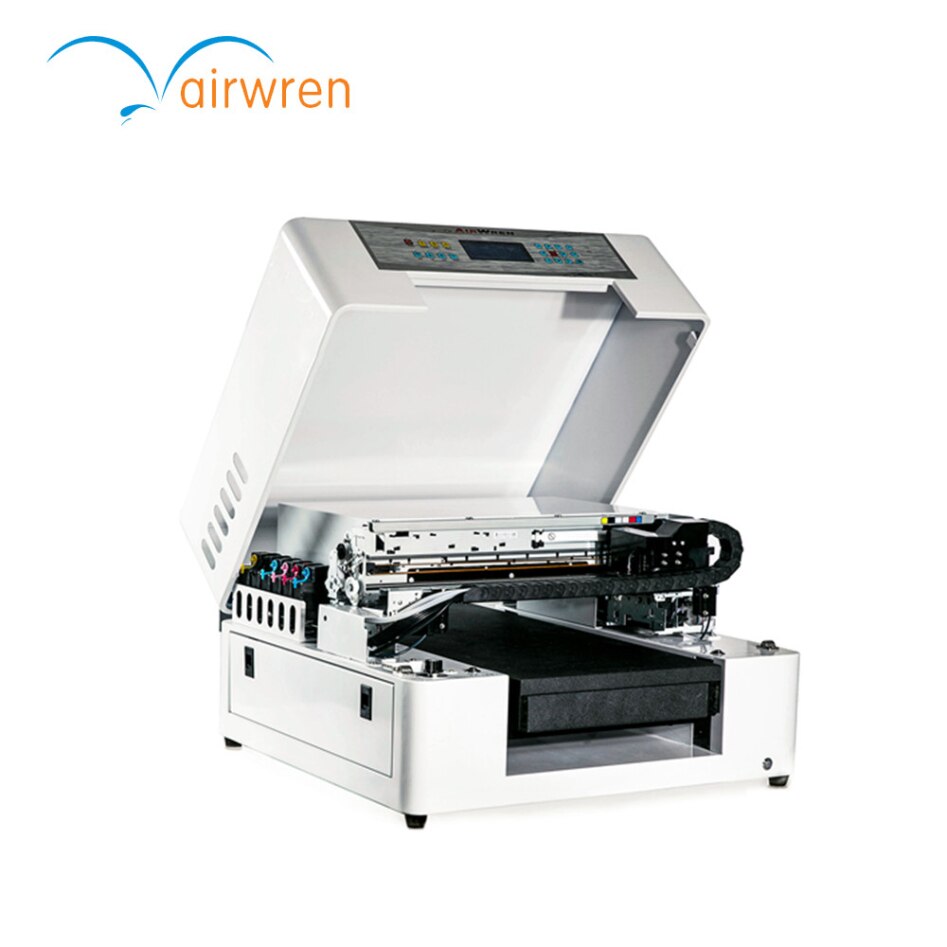

AR-LED Mini4 Flatbed LED UV Printer 3D Phone Case UV Printing Machine With High Resolution

0.0 ( votes)
Price:
US $ 7711.88 / piece
Quantity

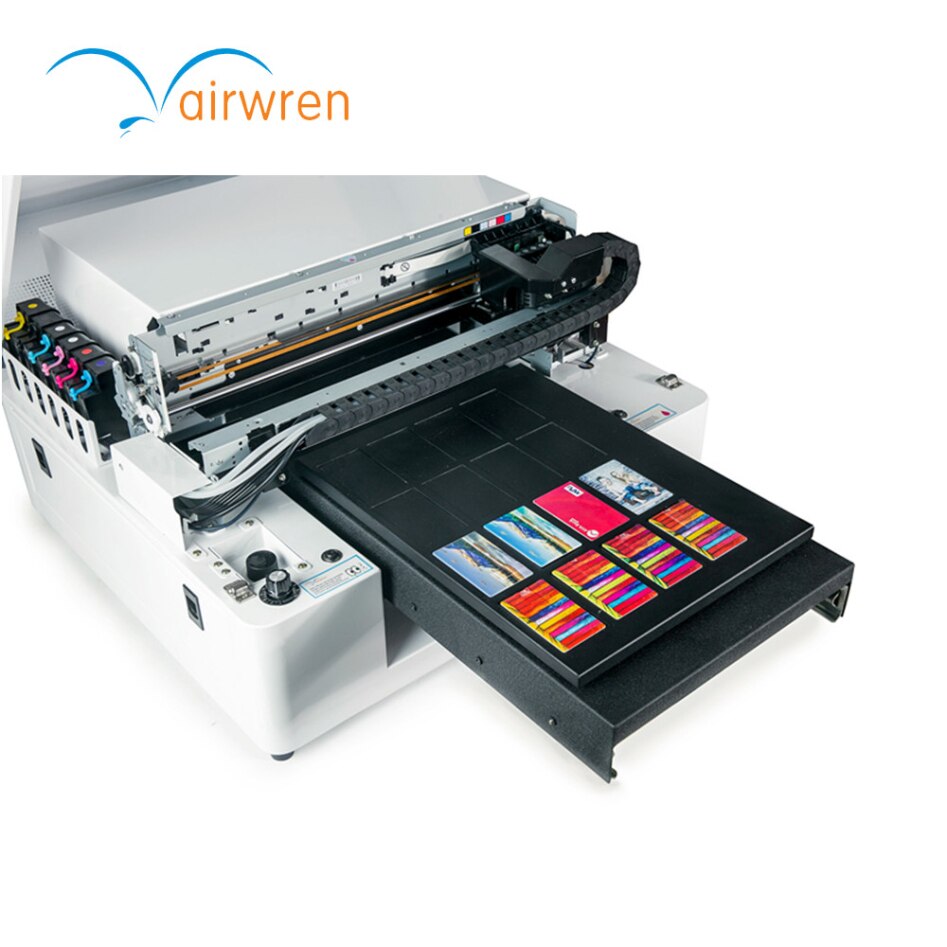

A3 size AR-LED mini4 uv printer for phone case

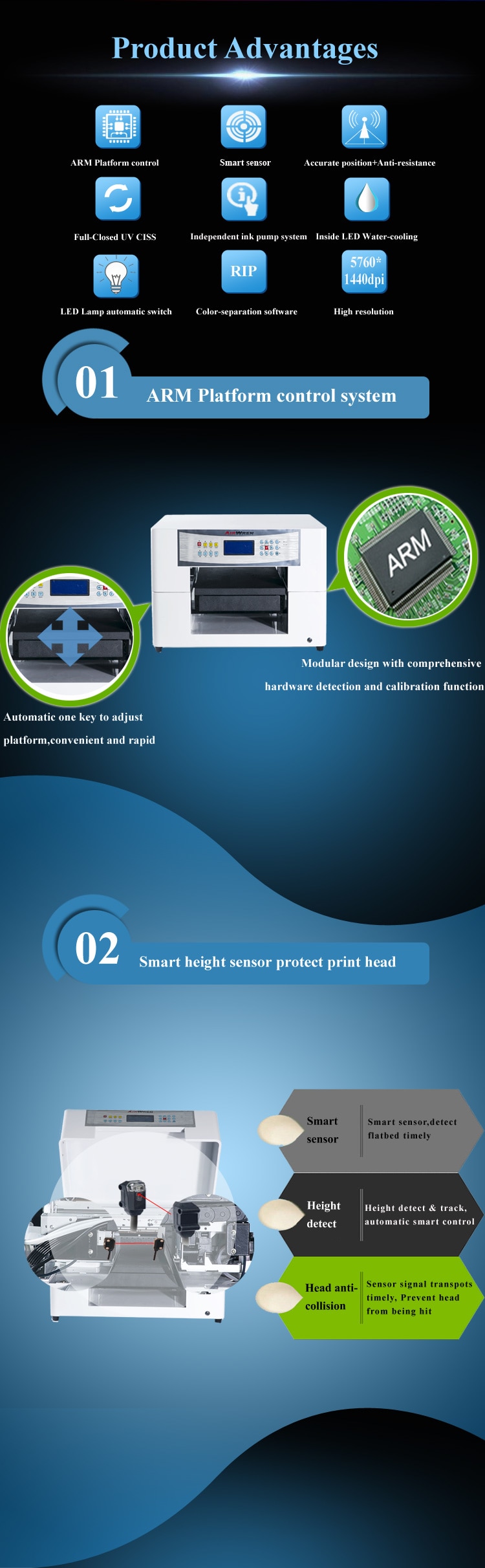

Products Advantage

1.Our UV printer product used for industrial production. It combines fast printing speed and elegant design at a suit, make the digital  printing production to become a reality.

2.Print conveniently and dry immediately.

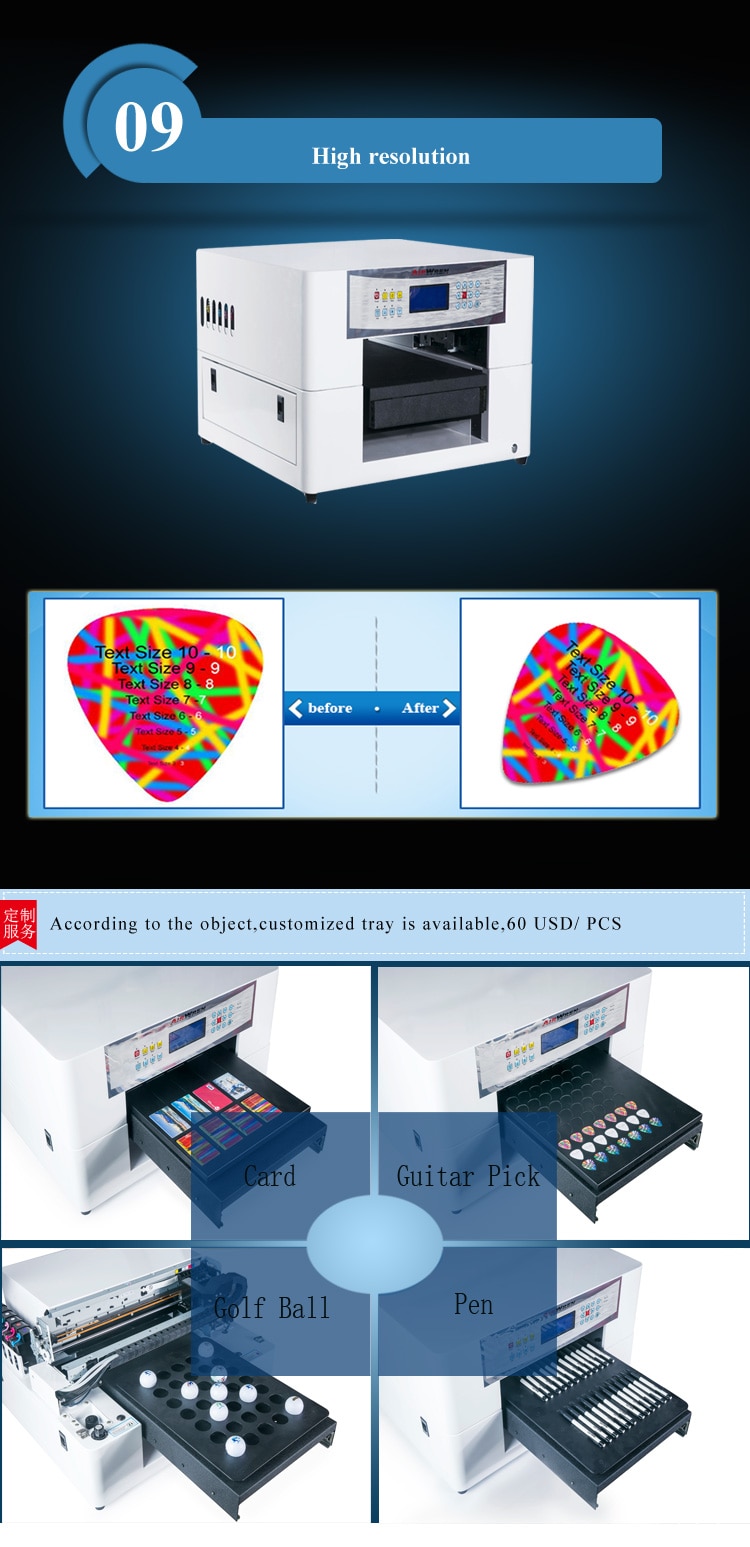

Our UV printer has 5760*1440dpi high resolution and 6 color printing selection, which provides a lifelike design quality is very reliable perfect design for ink system and nozzle moisturizing device, UV printer ensure continuity of production and spray print quality.

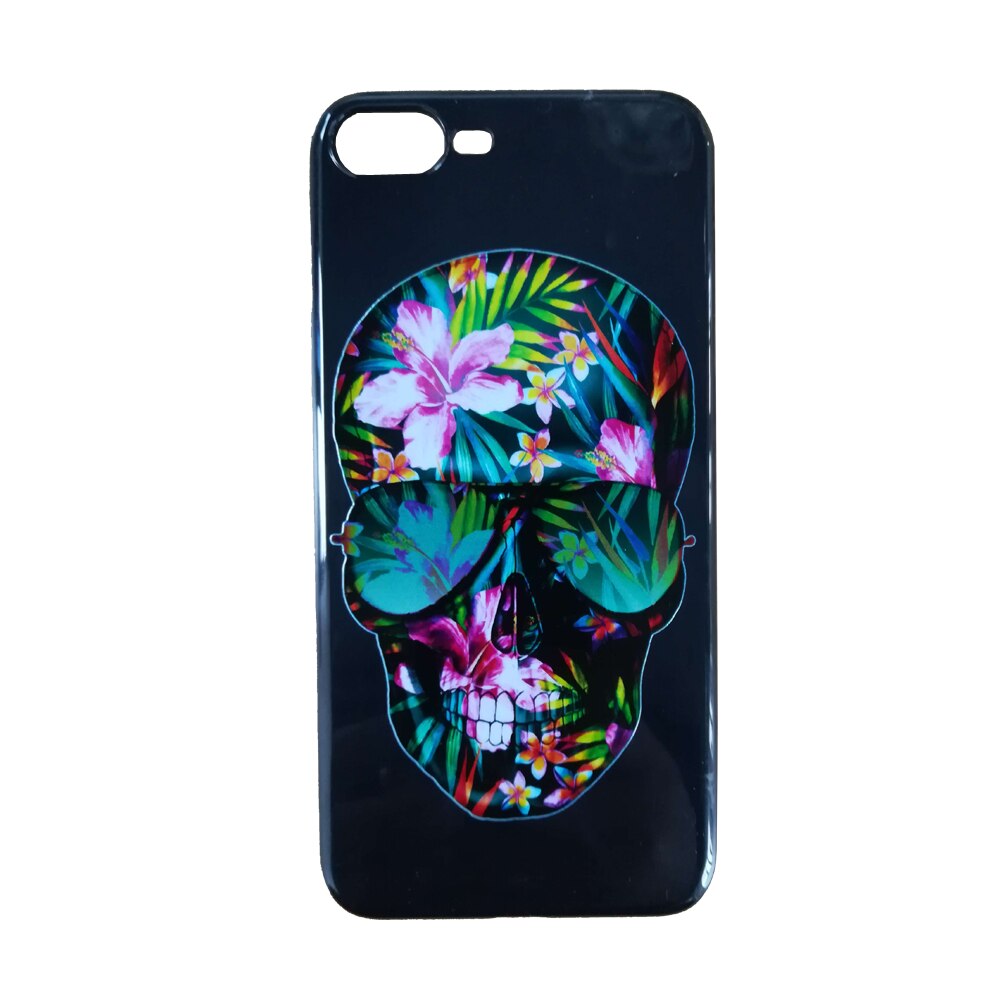

3.UV printer is applicable to many kinds of different materials, with professional color separation software to realize printing on ceramic tile,phone case, metal, glass, wood, golf ball, car CD DVD, plastic bags, card, etc. high quality, energy saving, environmental protection market demand.


Specifications of AR-LED Mini4

Model

AR-LED Mini4

Print Size

280mm*420mm

Specifications

650*650*400 mm(W*L*H)

Packing Size

770*710*620 mm(W*L*H)

Color Mode

CMYK+WW or CMYKLMLC or CMYK+VV

Net Weight

60Kg

Gross Weight

65kg

Print Speed

173sec( A3+ Photo)

Print Height

1-95mm(customized to 210mm)

Printhead Cleaning Method

automatic

Print Resolution

5760*1440dpi

Media

id card .leather . wood .bamboo .glass .golf etc

Ink

Environmental protection UV light curing ink

Voltage

AC100~120V/AC220~240V self-adaption, 50/60Hz±1Hz

Power

working mode 60W ready mode  no more than 20W

Driver

WINDOW XP/7

Operating  Environment

Temperature:5-32degree,Humidity:20-80%

Curing way

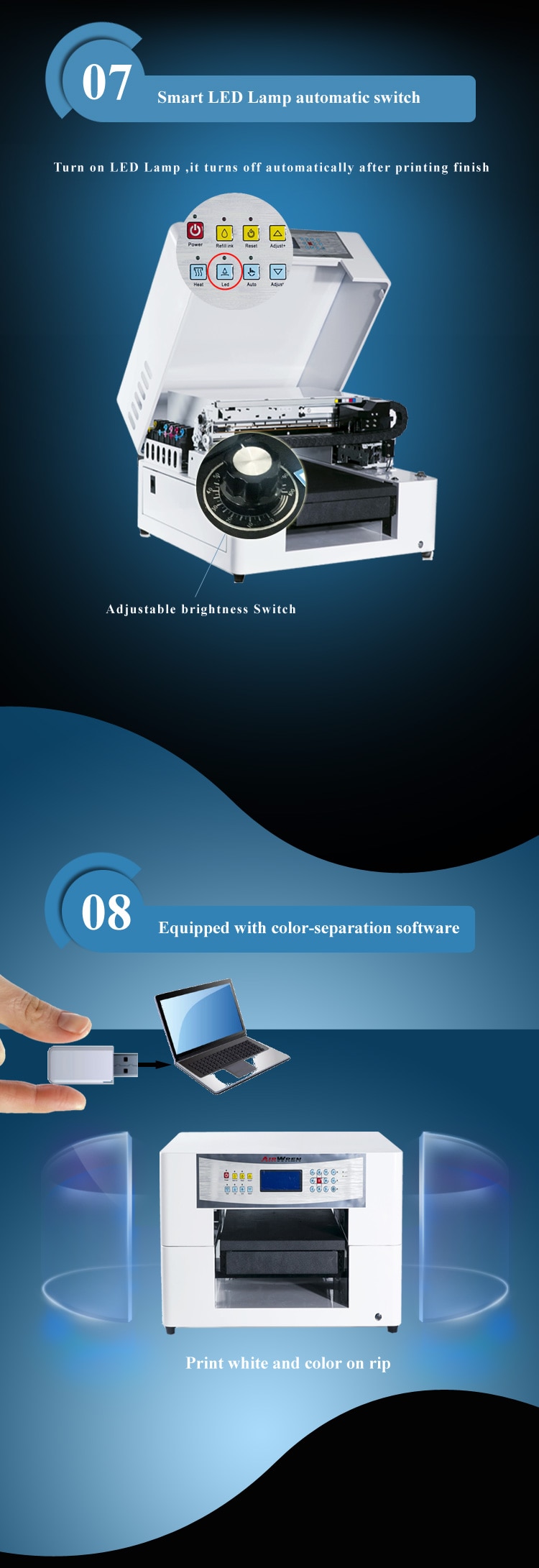

LED lamp curing,25000-30000 hours


Packing and shipping

1.Anti-pressure Carton Packing

2.Printer will be delivered by express .

3.There are no shipments on weekend and public holidays.

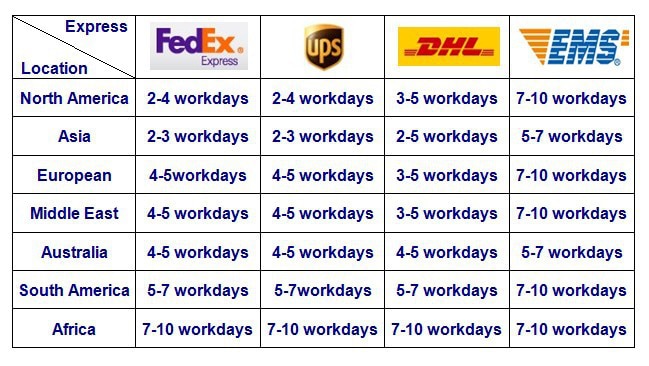

Delivery time to your country ( just for reference)

PS:The Rip software is for free for you!

Note:

1.If there is no special requirements, the printer will be shipped according to the rated voltage of the buyer's country. if buyer have special request, please indicate the voltage required in order message.

2.All printer order not contain ink ,if you need it ,you can buy it from our factory or local market .


Our after service

Our factory provides one year warranty:

Any components (except print head ,ink pump and CISS/ink cartridges) failure on normal use, will provide new one within one year(not includes shipping cost). Beyond one year, only charge at cost .

With an Haiwn printer you will receive Teaching DVD, Manual, life-time free technical support on line.  Any questions during using our machine, our technician will give life time technical support online directly .


Our Company


FAQ

1. What materials can Haiwn UV printer print on ?

Haiwn UV printers are multi-functional printers: it can print on any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...


2.Can Haiwn LED UV printer print embossing effect?

Yes, our UV printer can print embossing effect, for further information or samples pics, please contact our representative salesman.


3.Does it must be sprayed a pre-coating?

Haiwn UV printer can print white inks directly and no need for pre-coating.


4.How can we start to use the printer?

We will send the manual and teaching video with the package of the printer. Before use the machine,please read the manual and watch the teaching video and operate strictly as the instructions. We will also offer excellent service by providing free technical support online.


5.What about the warranty?

Our factory provide one year warranty: any parts (except print head,ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.


6. What’s the printing cost?

Usually,1.25ml ink can support to print a A3 full size image.

Printing cost is very low.


7.How can I adjust the print height?

Haiwn UV printer installs infrared sensor so the printer can detect the height of printing objects automatically.


8.Where can I buy the spare parts and inks?

Our factory also provide spare parts and inks,you can buy from our factory directly or other suppliers in your local market.


9.What about maintenance of the UV printer?

About maintenance,we suggest to power on the printer once a day.


If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head)






  • Application: For Commercial
  • Internal Memory: None
  • Size: 800*750*650mm
  • Voltage: 100-240V
  • Max. Resolution: 5760*1440dpi
  • Color Print Speed: 173sec(A3 full size photo)
  • Black Print Speed: 173sec(A3 full size photo)
  • Use: Card Printer
  • Print Speed: 8ppm
  • Double-sided Printing: No
  • Supports Network Printing: Wired
  • Paper Feed Mode: Auto
  • Max Paper Size: A3
  • Type: Inkjet Printer
  • Interface Type: USB
  • Brand Name: airwren
  • Certification: CE
  • Origin: Mainland China
  • Model Number: AR-LED Mini4 uv plastic id card printer
  • usage: uv flatbed printer
  • ink: uv ink
  • print size: 280mmX420mm
  • certification: CE
  • gross weight: 55kg
  • software: rip software
  • print mode: CMYK+2W
  • print resolution: 5760X1440dpi
  • type: AR-LED Mini4 uv plastic id card printer
