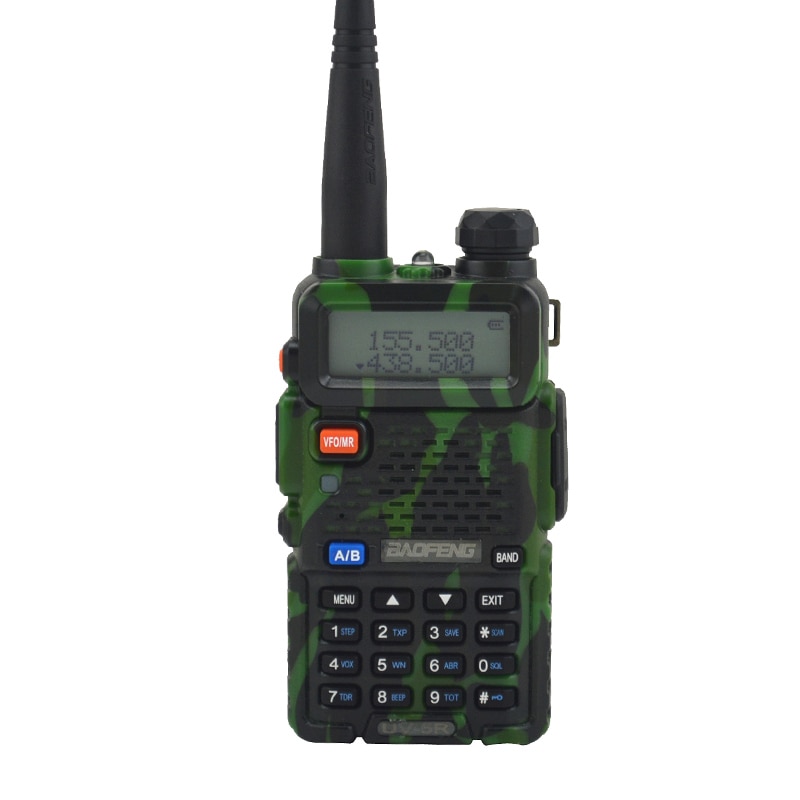

Baofeng Walkie Talkie UV-5R Dualband Two Way Radio VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with Earpiece

4.7 (140 votes)
Price: US $84.51 - 85.54 / piece
Discount Price:
US $ 47.50 - 48.09 / piece
-44%

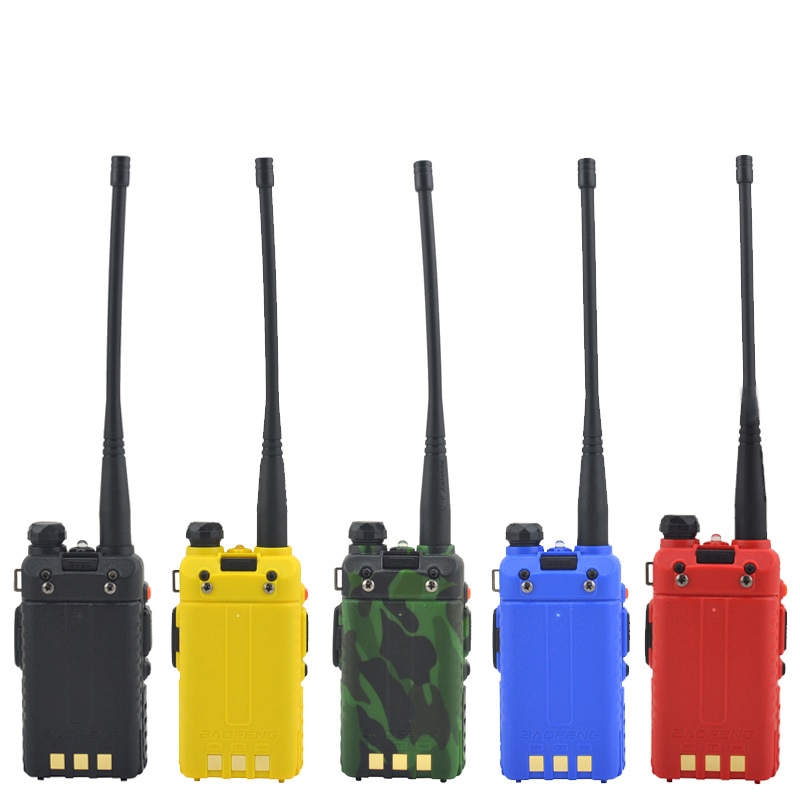

Color
Plug standard
Quantity

baofeng walkie talkie uv-5r dualband two way radio  VHF/UHF 136-174MHz & 400-520MHz FM Portable Transceiver with earpiece

Features:

  1. Frequency Range:136-174 & 400-520MHz

  2. Dual Band, Dual Display, Dual Frequency,Dual Standby

  3. Output Power:5/1Watt

  4. 128 Storage Channels

  5. 50 CTCSS and 104 CDCSS

  6. Buit-in Vox Function

  7. 1750Hz Brust Tone

  8. FM Radio(65.0MHz-108.0MHz)

  9. LED Flashlight

  10. Larger LCD Display

  11. High/Low RF Power Switchable

  12. 25KHz/12.5KHz Switchtable

  13. Emergency Alert

  14. Low Battery Alert

  15. Battery Saver

  16. Time-out Timer

  17. Keypad Lock

  18. Monitor Channel

  19. Channel Step:2.5/5/6.25/10/12.5/25KHz

  20. PC Programming

Specifications:

Dual band, dual display

A/B band independent operation

128 groups channels storage

Shortcut menu operation mode

VFO & Memory channels scan

Emergency Alarm

Tri-color background light selectable

0~9 grades VOX selectable

PTT & ANI ID

FM radio and 25 stations storage

1750Hz Brust Tone

Time-out Timer

Channel Monitor

Battery Saver

Keypad Lock

Channel Step: 2.5/5/6.25/10/12.5/25KHz

Low Battery Alert

ROGER SET

Emergency Alert

25KHz/12.5KHz Switchable

FM Radio (65.0MHz-108.0MHz)

Large LCD Display

LED Flashlight

Hight /Low RF Power Switchable

Voice companding

50 CTCSS/ 104DCS coder & tone searching

dual standby

PC programmable

Wide/Narrow Band(25kHz/12.5kHz)

Transmitter time-out timer(TOT)

High/Low TX power selectable

Busy channel lock-out(BCLO)

Specifications

General

Frequency Range

65-108MHz(FM Receive only)

136-174MHZ and 400-520MHZ (TX/RX)

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain DualBand  antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Dimension(W x H x D)

100 x 52 x 32 mm

Weight

250g(including battery, antenna)

Antenna :

SMA -Female

Earpiece / mic type :

Kenwood Plug type

Transmitter

Output power

5W / 1W (Max 5W)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

 5kHz(Wide) /  2.5kHz(Narrow)

Spurious Radiation

 7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

≤10%

Package Contain:

1× UV-5R (VHF136-174 & UHF 400-520Mhz)

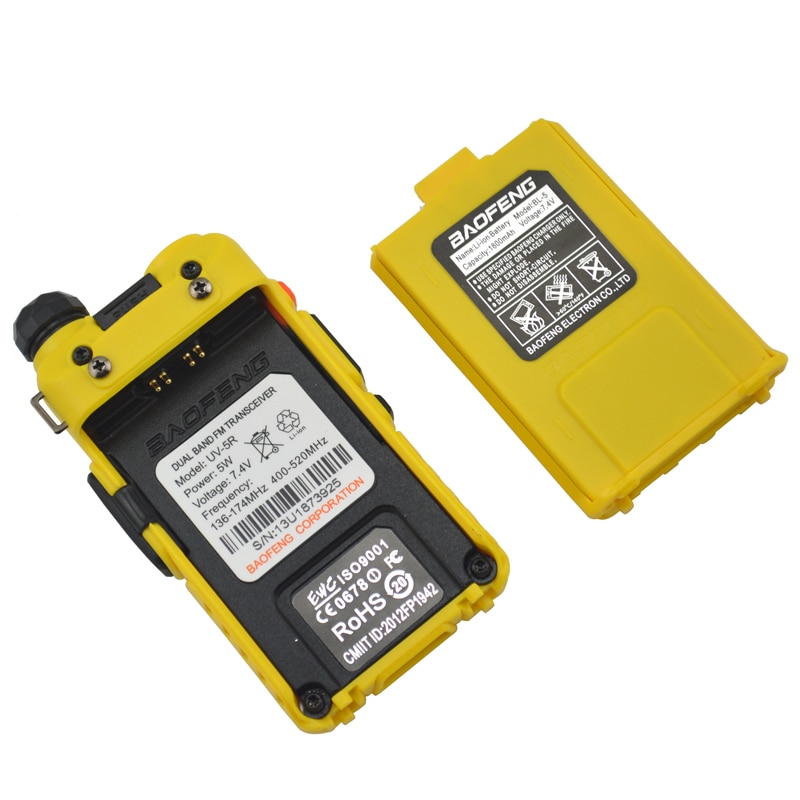

1× 7.4V 1800mah Li-ion Battery Pack

1× Dual Band Antenna

1× Belt Clip

1× ENG Manual

1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country

1× Earpiece

1× Handstrap

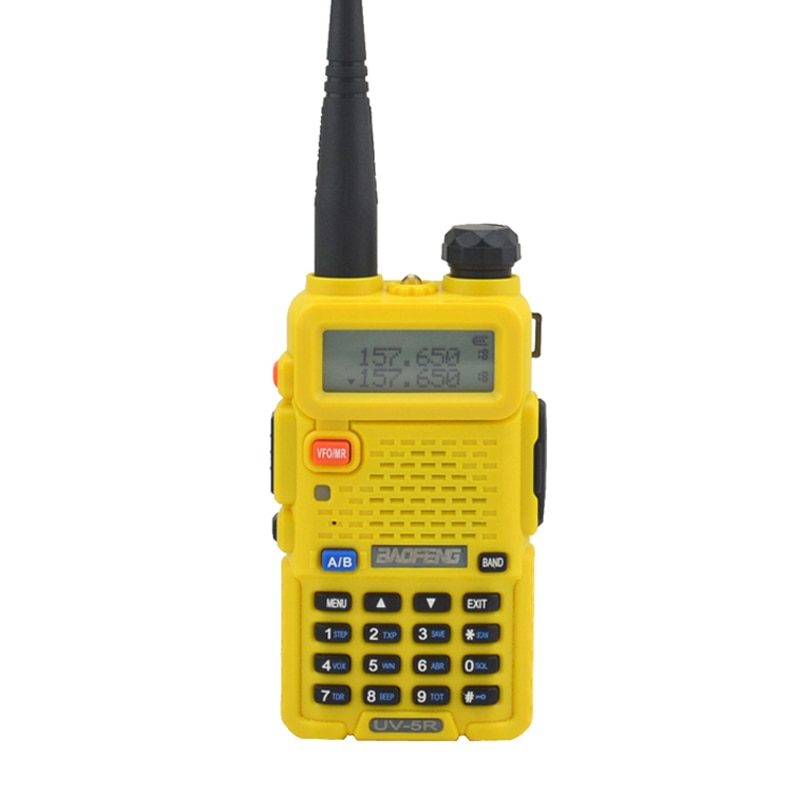

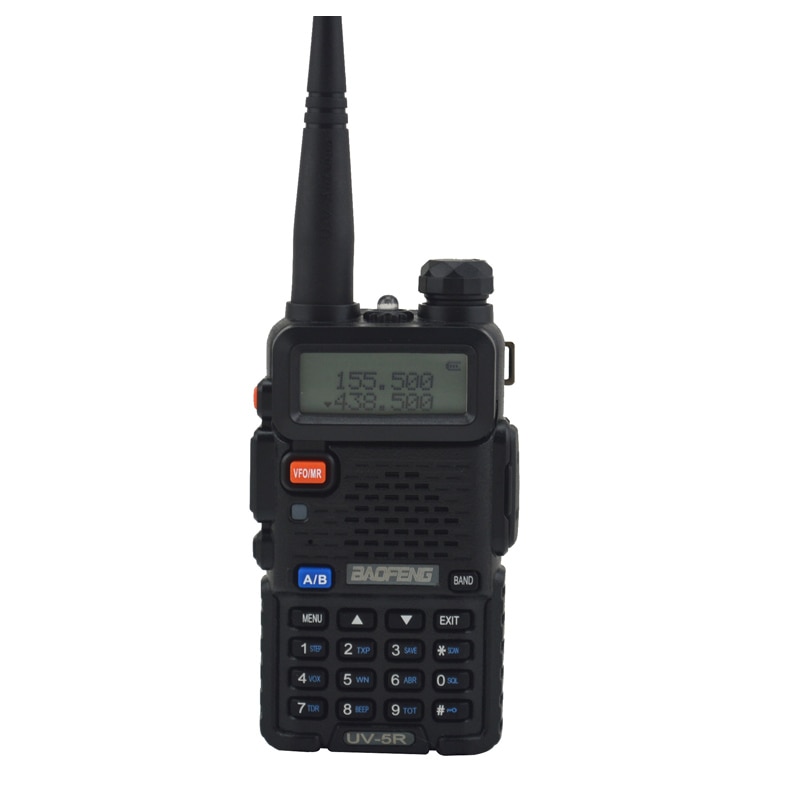

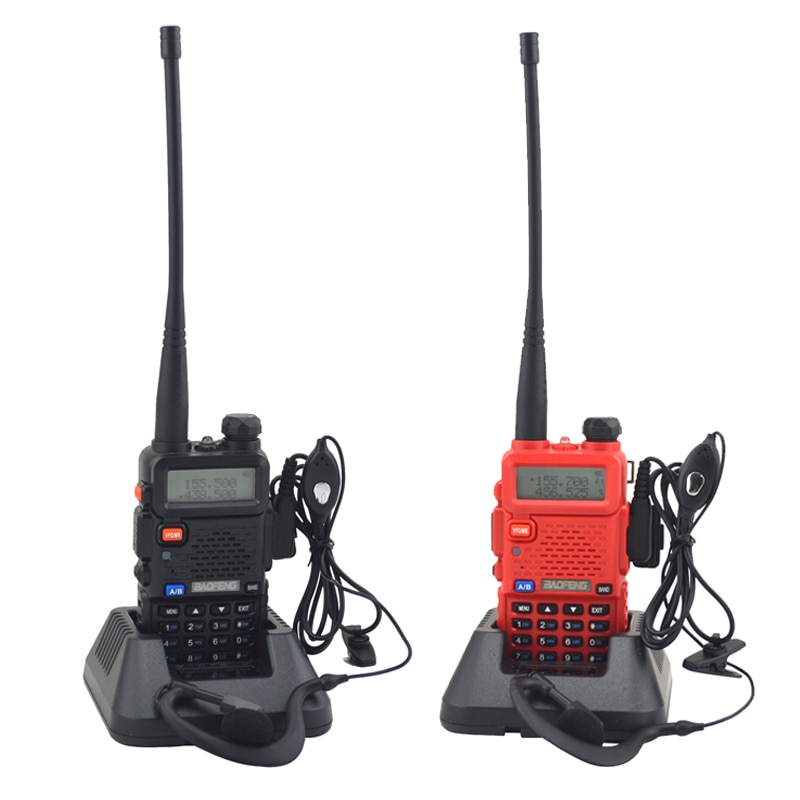

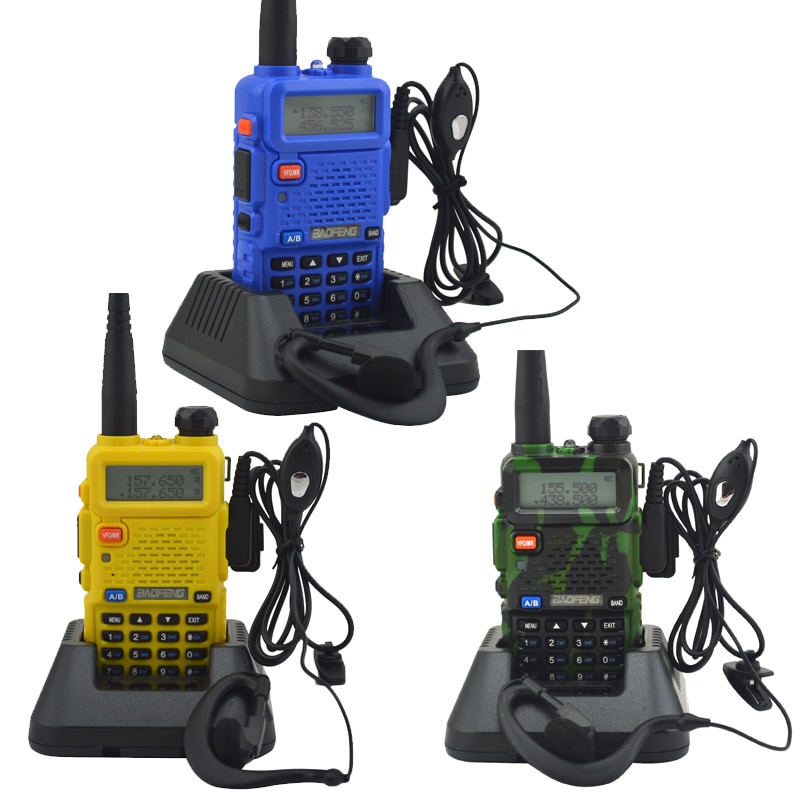

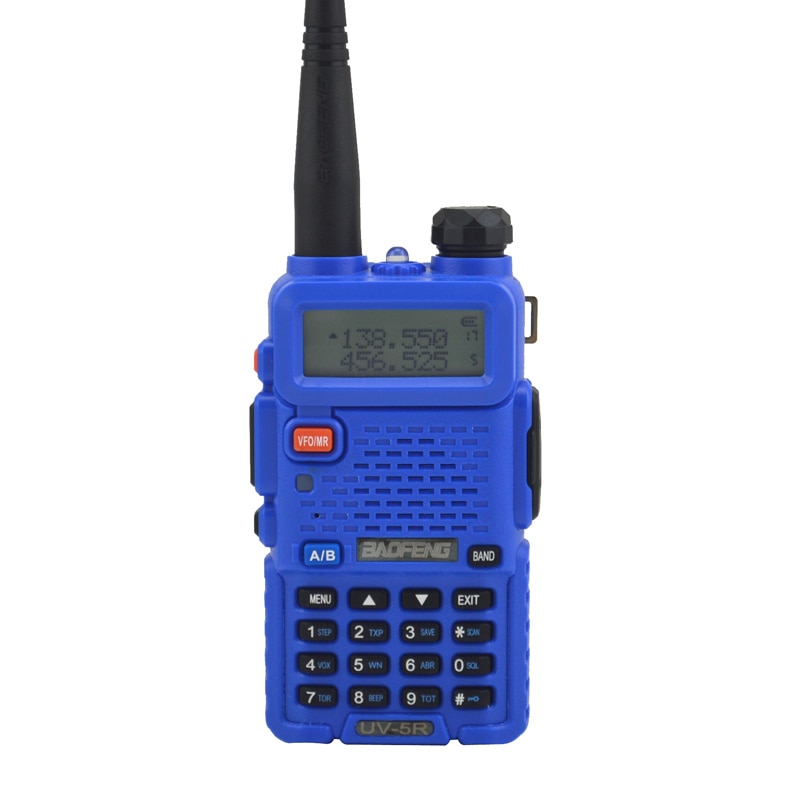

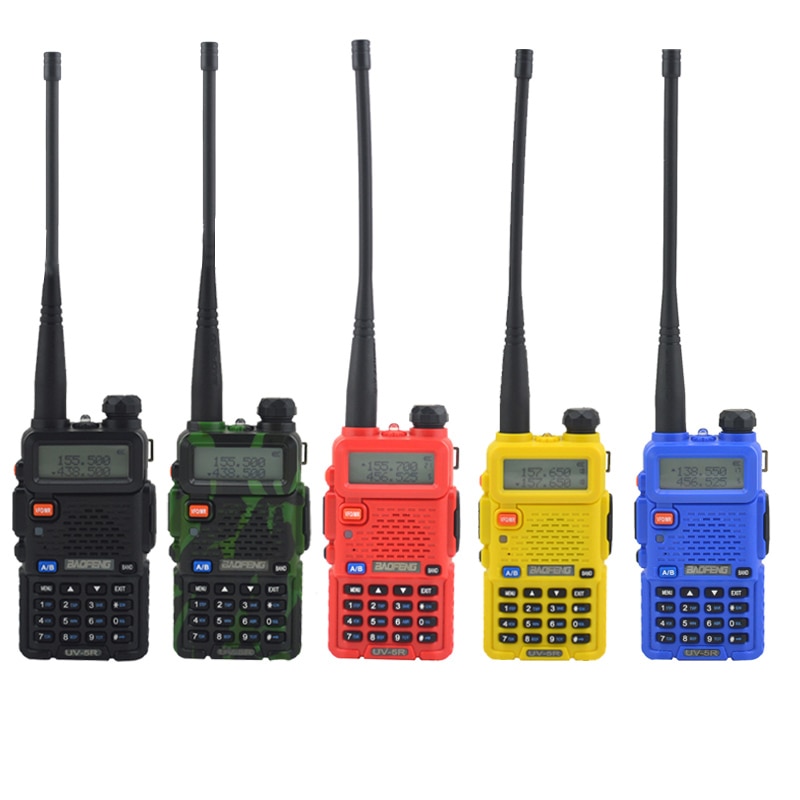

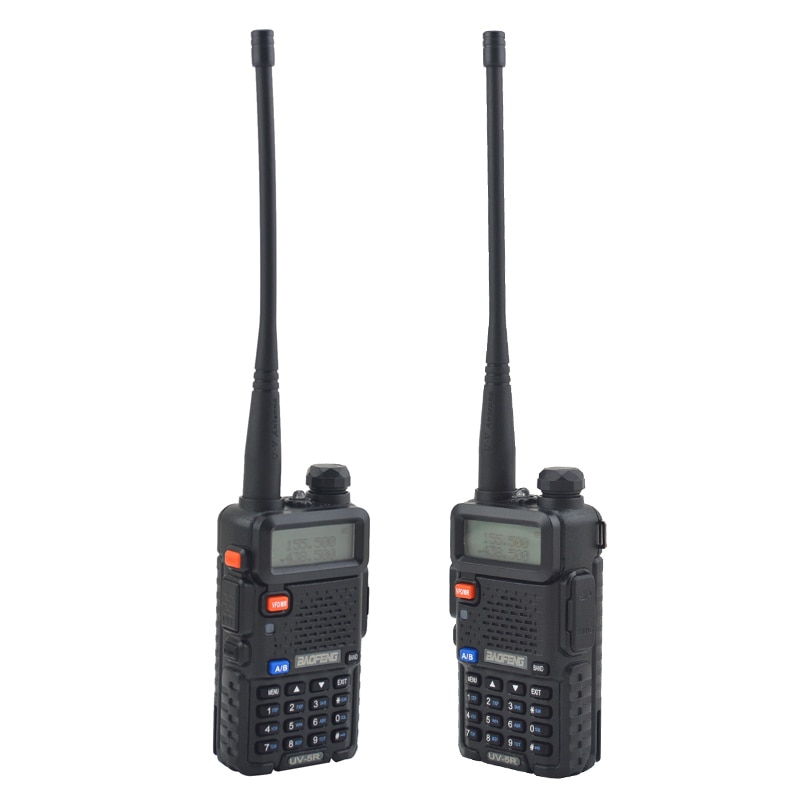

Item Picture:


  • Output Power(w): 3w-5w
  • Battery Capacity(mAh): 1800
  • Waterproof / Water-Resistant: No
  • Material: Plastic
  • Storage Channel: 128
  • Frequency Range: Dual Band 136-174MHz & 400-520MHz
  • Dimensions: 109.5x 59.5x 34.3mm
  • Model Number: UV-5R
  • Walkie Talkie Type: Portable
  • Is_Display: Yes
  • Maximum Range: 3km-5km
  • Brand Name: BAOFENG
  • Origin: Mainland China
