by BGTBL FA-3 FA3 Frequency Counter Frequency Meter 1Hz-6G 11Bit/Sec FA-3 FREQ COUNTER
SALE
ID: 74857

by BGTBL FA-3 FA3 Frequency Counter Frequency Meter 1Hz-6G 11Bit/Sec FA-3 FREQ COUNTER

4.8 (4 votes) | 2 orders
Price: US $301.99 - 870.00 / piece
Discount Price:
US $ 286.88 - 826.50 / piece
-5%
Color
Quantity

FA-3 Frequency Counter Frequency Meter 1Hz-6G 11Bit/Sec High-Precision FA-3 FREQ COUNTER

Specifications:

- Type:FA-3-6G/FA-3-12.4G/FA-3-26.5G/FA-3-6GP
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance: 50Ω/1MΩ
- CH1 input reference sensitivity: 50Ω: 25mVrms-2Vrms; 1MΩ: 25mVrms-2Vrms
- CH1 frequency accuracy: 0.1-second gate: 0.001Hz at 10M; 1-second gate: 0.0001Hz at 10M; 10-second gate: 0.00001Hz at 10M
- CH1 measurement speed: 11 bits/sec at 10M
- CH1 power test range: -50DBM to +20DBM, 1M-550M at 50 OHM
- CH1 power measurement accuracy: 0.5DB at 10MHz
- CH1 interface type: BNC
- CH2 frequency range:6G:30MHz-6GHz /12.4G:200M-12.4G/26.5G:200M-26.5G/6GP:30MHz-6GHz(with power meter)


- CH2 input impedance: 50 OHM
- CH2 frequency accuracy: 0.1-second gate: 1Hz at 1GHz; 1-second gate: 0.01Hz at 1GHz; 10-second gate: 0.001Hz at 1GHz
- CH2 input power: 6G: -20dBM to +13dBm at 0.5-5G
- CH2 interface type: SMA
- Gate time: 0.1 second/1 second/10 second
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal base year aging: 0.5Hz
- Internal reference output port power: 4dBm
- External reference input power range: 6G:-20dBM- +13dBm@0.5-5G、 12.4G:-20DBM-+13DBM@0.2-10G、26.5G:-15-+5DBM@1G-26.5G /6GP:-20-+13DBM@0.5-5G

- Panel screen: 3.2 inches, 128*64pixel

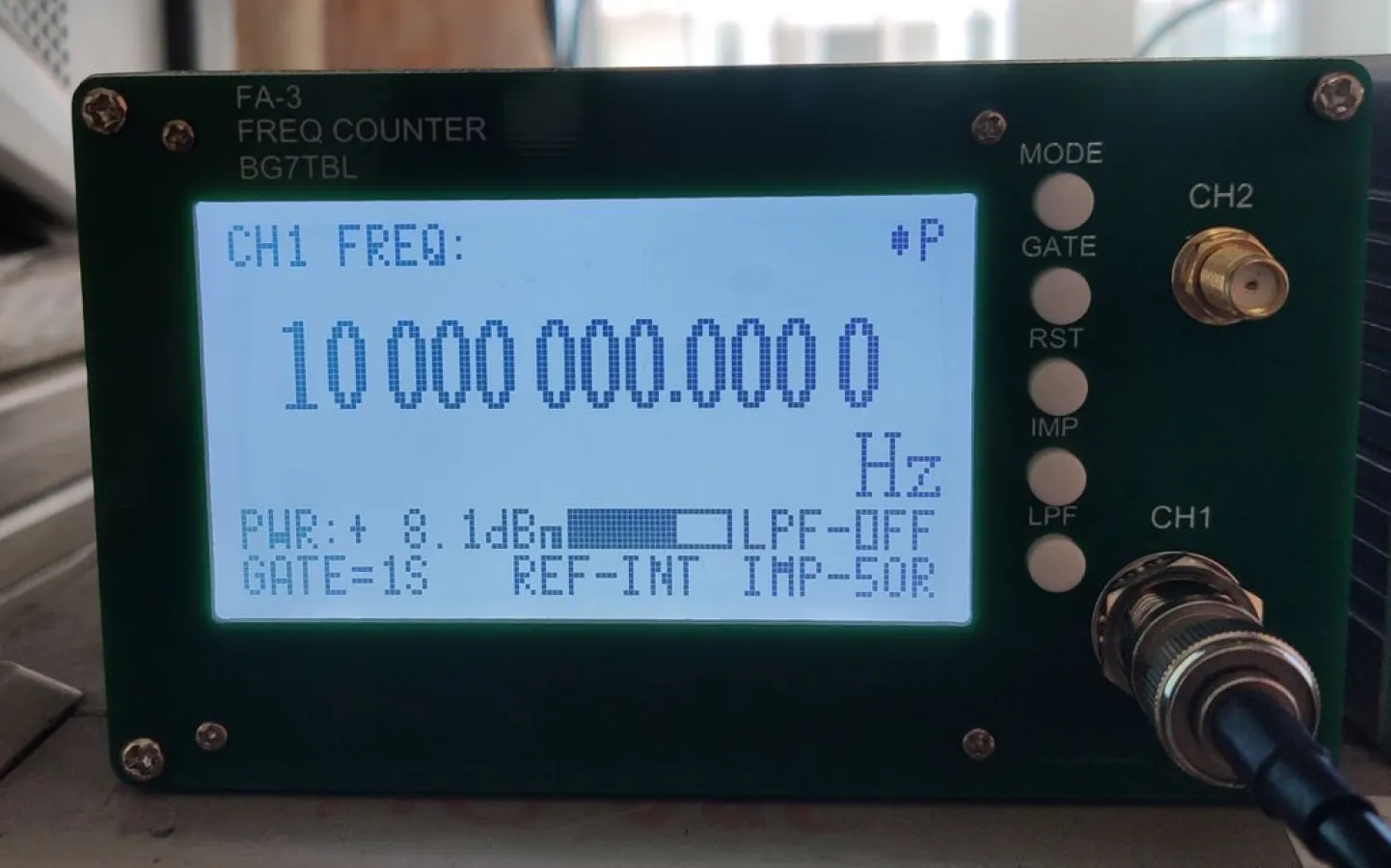

- Operation modes: CH1 frequency measurement mode, CH1 statistical mode, CH2 frequency measurement mode, CH2 statistical mode
- Statistics mode data types: average, maximum, minimum, peak-to-peak value
- Power supply: 11.7-12.5V, Start: <0.6A, Stable: <0.4A
- Size: 127*75*143mm (L*H*D)
- Net weight: 750g
- Accessory: 1pcs DC12V adapter

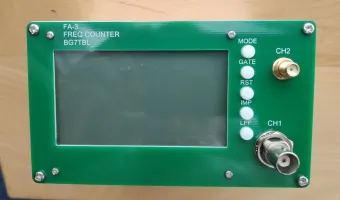

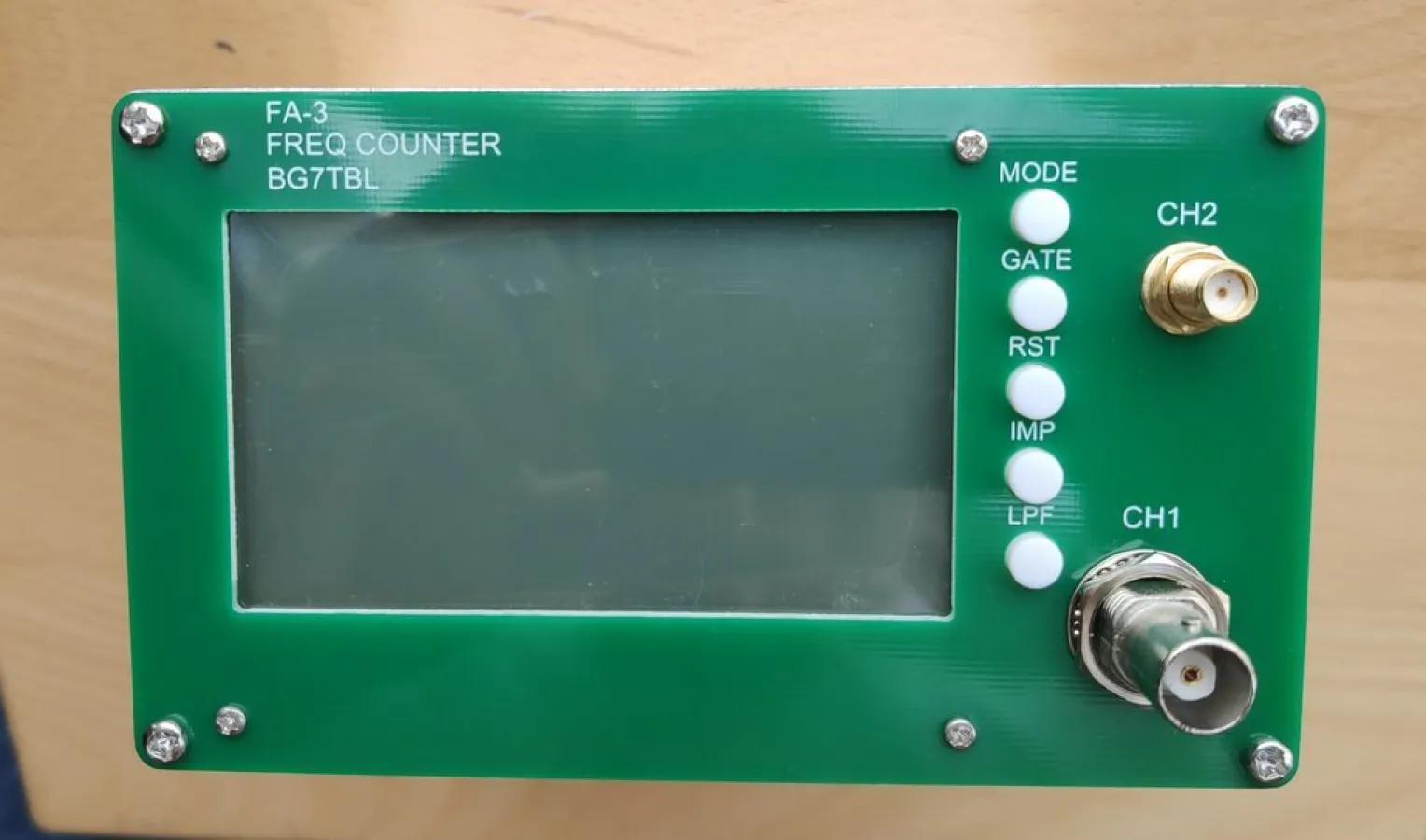

Front Panel Functions:
- MODE: operating mode conversion
- GATE: Gate time selection
- RST: restart measurement
- IMP: CH1 input impedance selection
- LPF: Whether CH1 opens 100K LPF
- CH1: Channel 1 input
- CH2: Channel 2 input

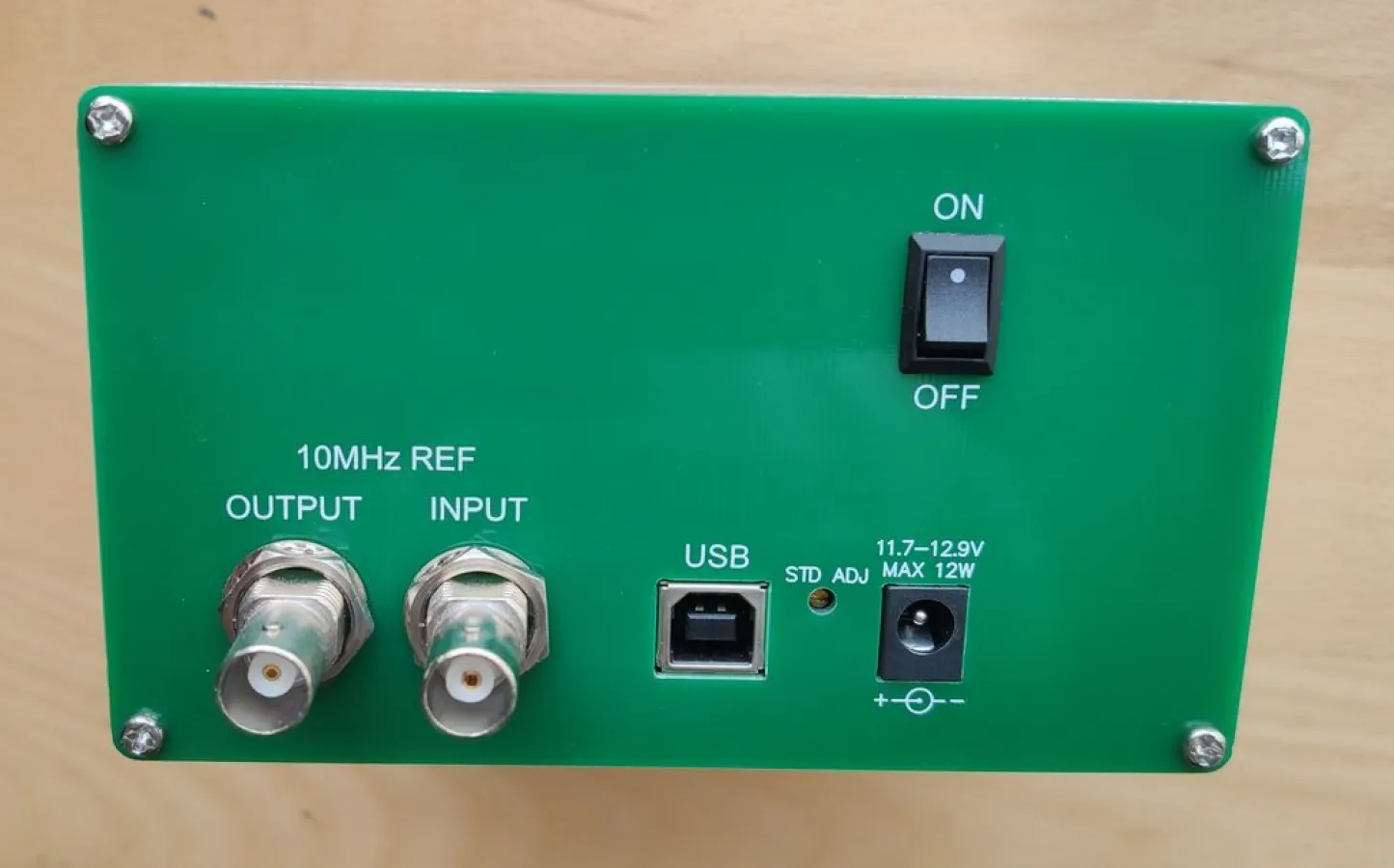

Rear Panel Functions:
- 10M REF INPUT: external 10M reference input
- 10M REF OUTPUT: 10M reference output
- USB: USB port
- STD ADJ: internal OCXO frequency fine-tuning
- ON/OFF: Switch
- With a DC socket

Package Included:
- 1 x Set of Frequency Meter

  • 1X POWER SUPPLY




  • Gain(dB): 10
  • Model Number: FA-3
  • Brand Name: AISANRAY
  • Origin: Mainland China
  • Certification: NONE
