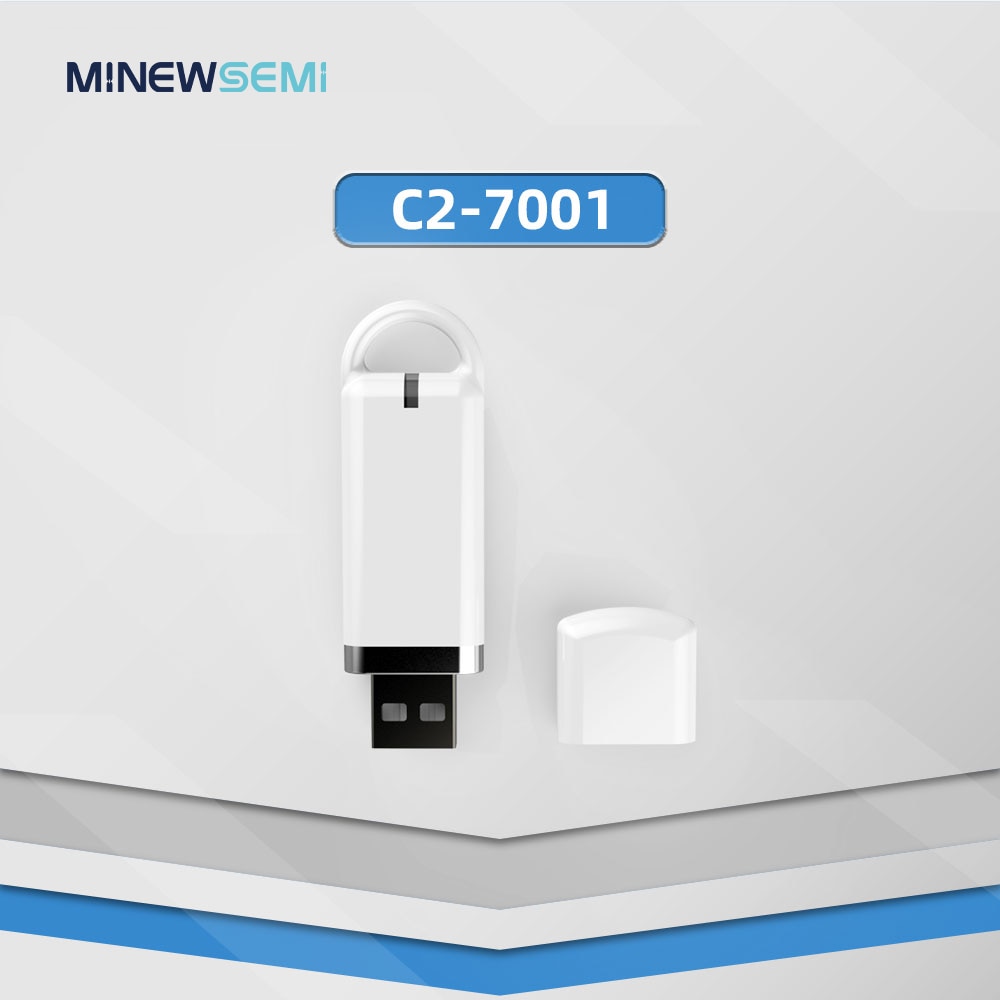

C2-7001 NRF52840 Dongle Nordic Low Power Consumption USB Dongle for Eval Bluetooth Grab Tool Module Used With NRF Conect for PC
5.0 (1 votes) | 18 orders
Price:
US $29.20
/ piece
Discount Price:
US $
25.99
/ piece
-11%
- Ships From

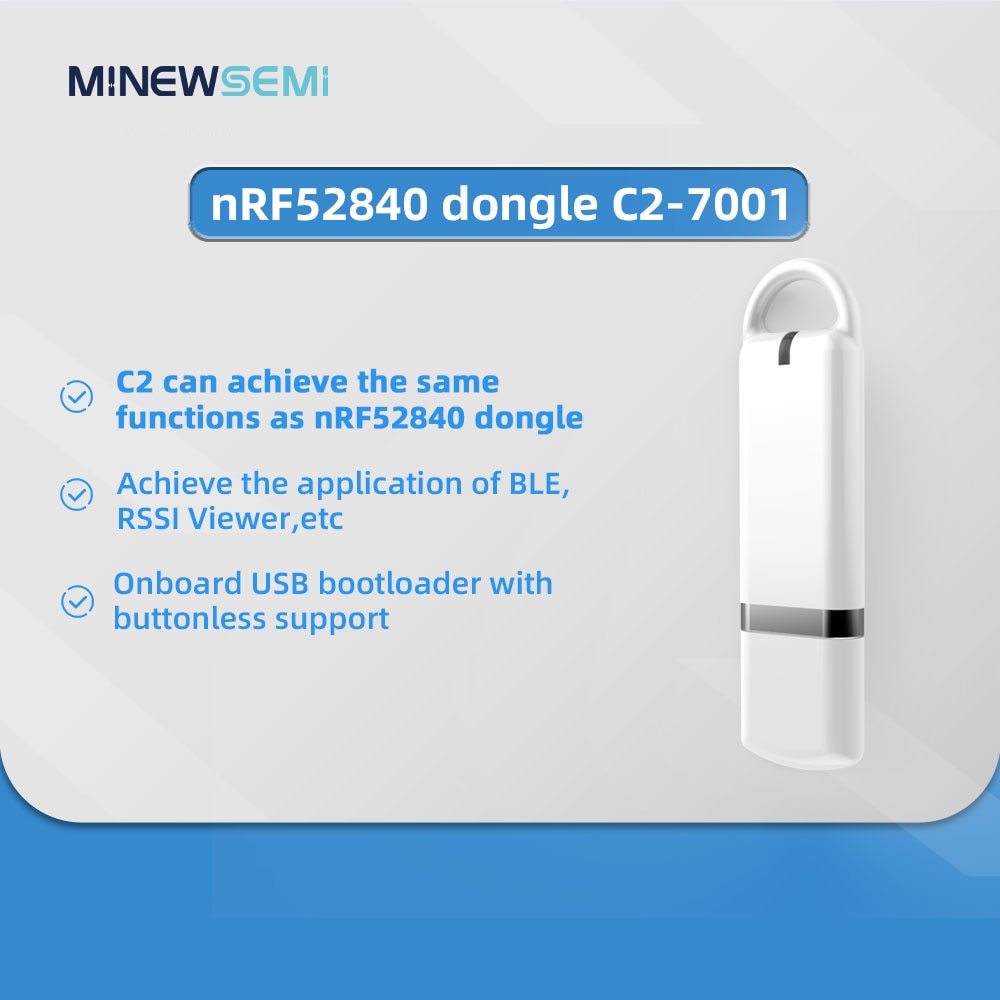

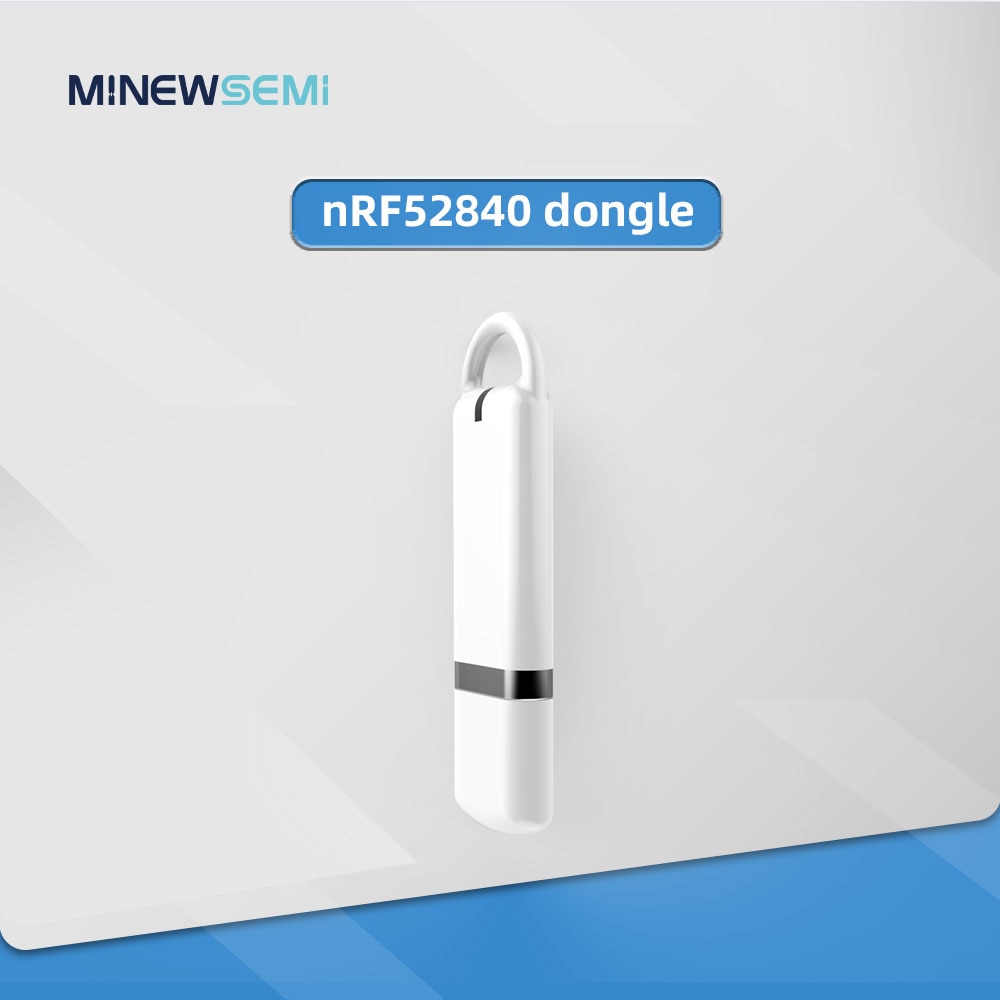

nRF52840 Micro Dev Kit USB Dongle
Low cost USB dongle supporting Bluetooth LE, Thread, Zigbee, 802.15.4, ANT and 2.4GHz
Pre-built OpenThread NCP Firmware support
Ready to test RSSI & BLE
Hardware specification
Nordic nRF52840 System-on-Chip
ARM Cortex-M4F processor optimized for ultra-low power operation
Combining Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT and 2.4GHz proprietary
On-chip USB 2.0 (Full speed) controller
ARM TrustZone Cryptocell 310 security subsystem
1 MB FLASH and 256 kB RAM
User programmable Button and RGB LED
On-board 2.4G chip antenna
3.3V regulator with 1A peak current output
VBUS & VIN Power-Path Management
Convenient USB dongle form factor
Searching for DEV kit

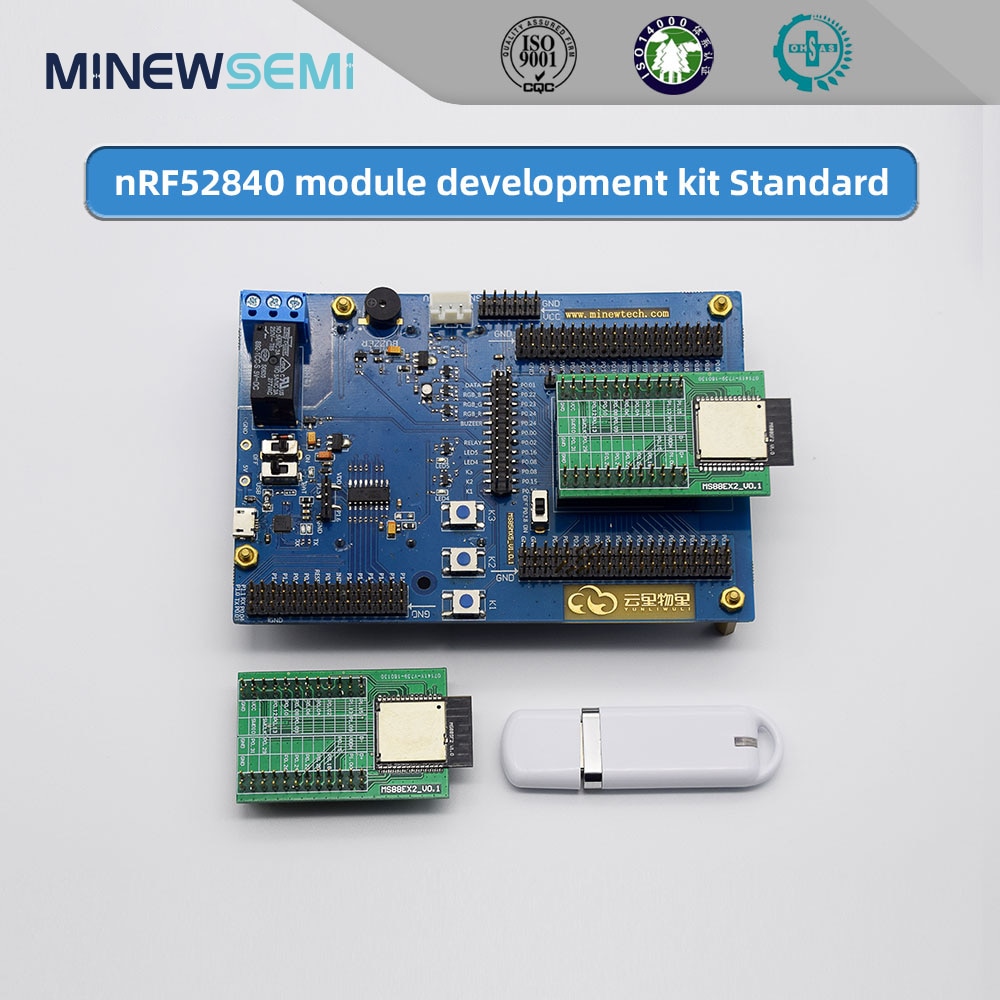

If you are interested in nRF52840 module development kit, pls refer to the link in the picture
FAQ
Q: How can i get C2 dongle datasheet?
A: After the payment. please feel free to send your email to seller, and the seller will send the datasheet for you.
Q: how can i judge a manufactuerer as reliable one?
A: Please kindly check the certification that manufacturer have passed.
Minew have passed the factory certification like ISO9001 quality management system, ISO14001 environmentalmanagement system and OAHS18001 occupational health and safety assessment
Q: where is the reset button of C2
A: insider the housing and you can open the housing easily.
Multiple product Available
Except for nRF52840 dongle, we sell nRF52840 module, dev kit, etc.
Brand Story
Minew, your professional and reliable manufacturer.
- Model Number: nRF52840 dongle
- Working Frequency: 2.4Ghz
- Brand Name: MINEWSEMI
- Origin: Mainland China
- Certification: CE,FCC
- IC: nRF52840
- interface: Type-A
- Color: White
- Application: BLE/RSSI
- Reset Botton: insider
- Using Electric: USB Powered
- Working Current: 12mA
- Operating Temperature: -20°C ~ 60°C
