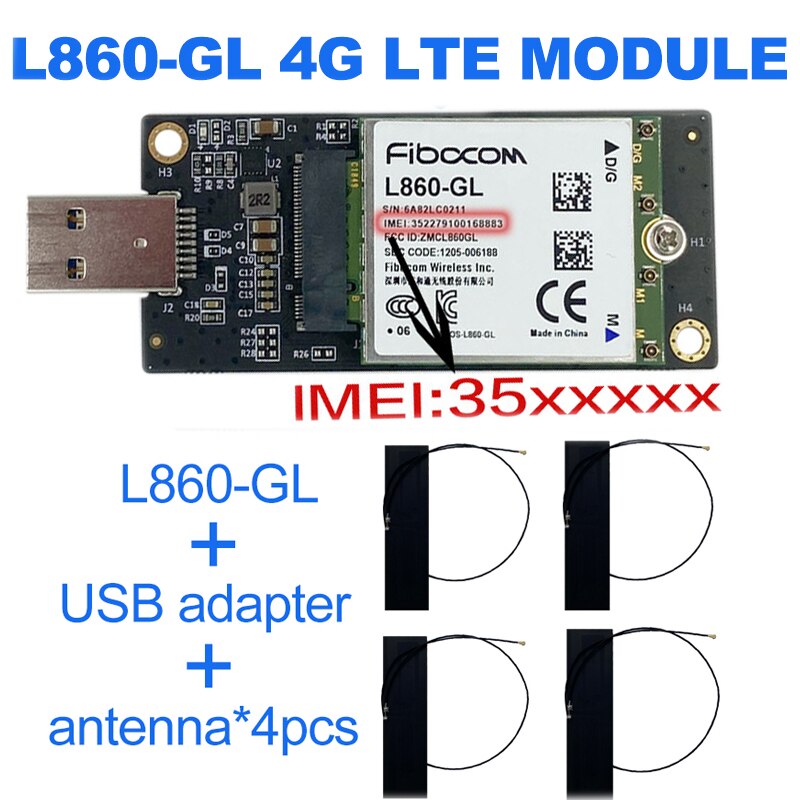

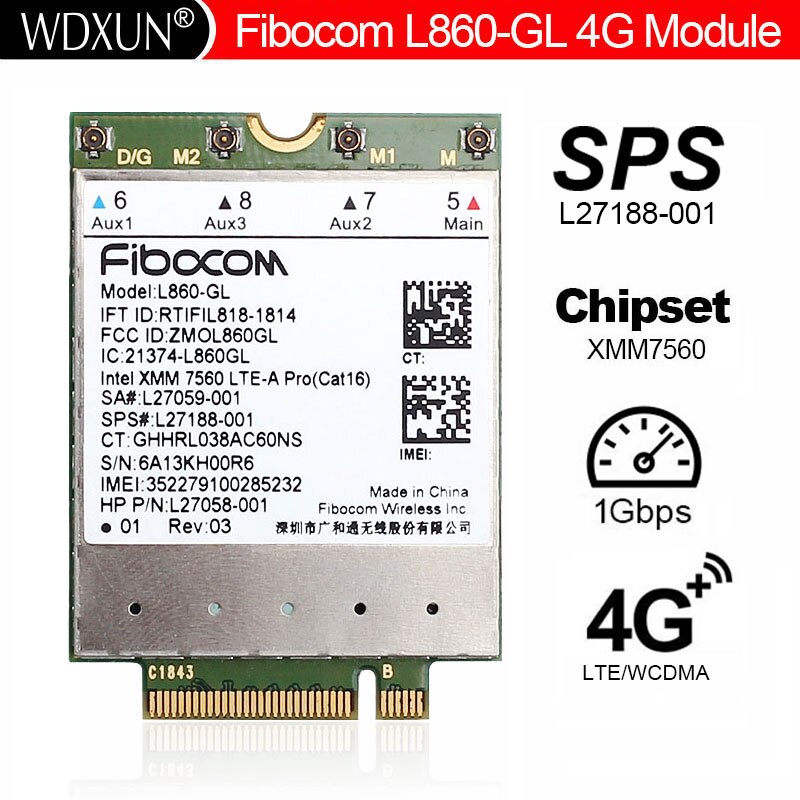

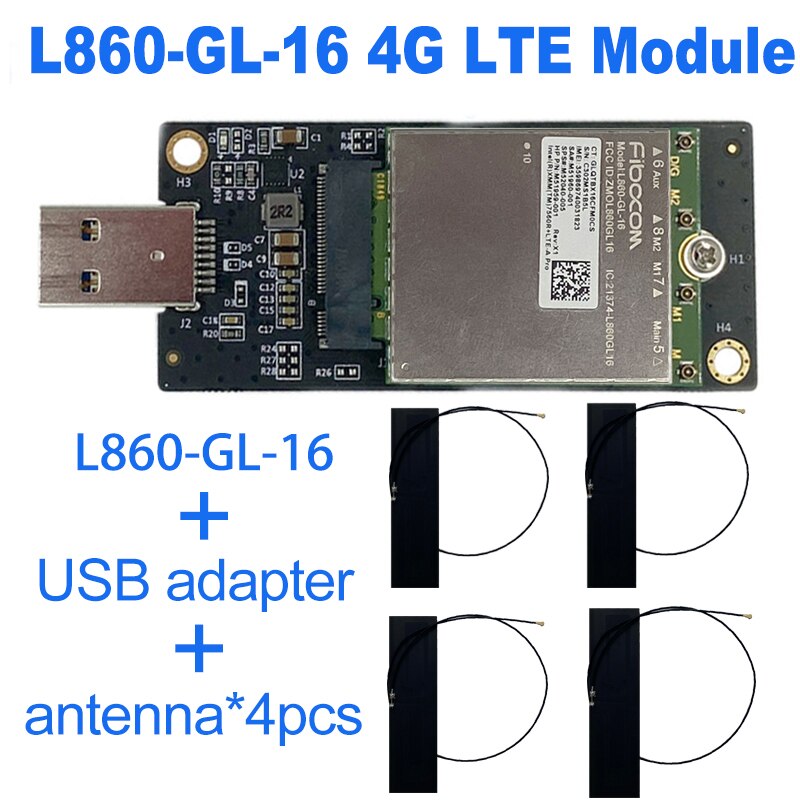

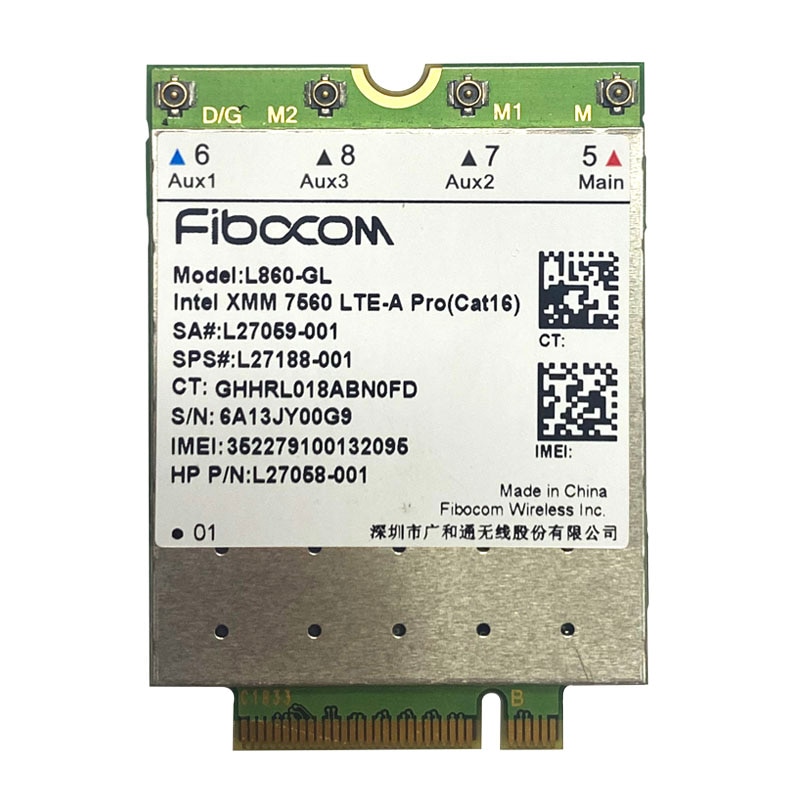

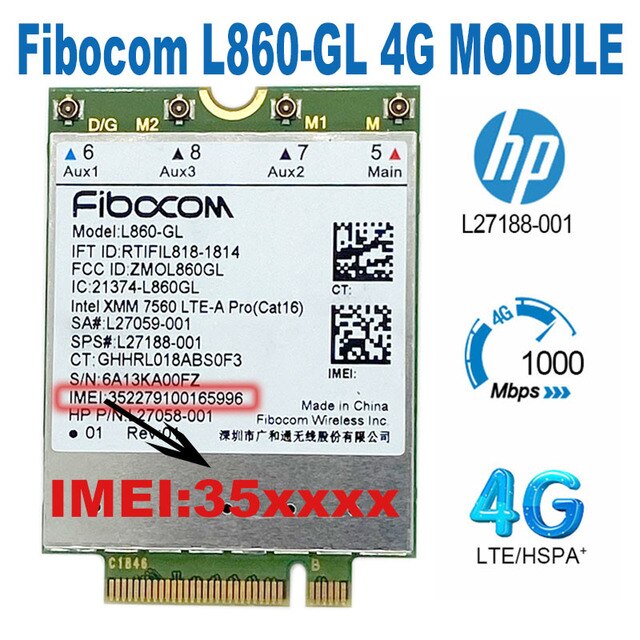

FDD-LTE TDD-LTE Cat16 Fibocom L860-GL L860-GL-16 USB 4G Module Wlan Card SPS L27188-001 For HP laptop Elitebook X360 830 840 850

5.0 (3 votes)
US $ 64.78 - 109.13 / piece

Product Introduction:

  • Specification
    Part no.L860-GL
    Manufact: Fibocom
    Dimensions [mm]30 x 42
    Formfaktor / connectM.2
    Temp.-Range-20°C to +65°C
    Band GSM-
    Frequency rangeLTE FDD Band: 1,2,3,4,5,7,8,12,13,14,17,18,19,20,21,25,26,28,29,30,32,66 WCDMA Band: 1,2,4,5,8
    Datarate downloadCAT16 (1Gbps)
    Datarate uploadCAT16 (75Mbps)
    TCP/IP internal-
    Voltage3,135V - 4,4V
    Chipset: Intel XMM7560
    LTE FDD:LTE FDD: Band 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66

    * LTE TDD: B38/39/40/41/42
    * UMTS: Band 1, 2, 4, 5, 8
    * Form factor: M.2 package
    * Dimensions: 30.0*42.0*2.3 mm
    * DL 5CA on 4 bands, DL 256QAM support
    * DL-MIMO: 2*2, 4*2, 4*4
    * DL 4x4 MIMO: Band 1,2,3,4,7,30,40,41NB, 66
    * LAA(Band 46)
    * Integrated GNSS
    * eSIM interface support
    * Operating Voltage: 3.135V~4.4V, Typical 3.3V
    * Operating Temperature: -10~+55°C
    * Storage Temperature: -40~+85°C
    * AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands
    * TX Power:
    - FDD& TDD LTE: 23dBm
    - WCDMA: 23.5dBm
    * RX Sensitivity: FDD& TDD LTE: -98dBm~102dBm
    * Data
    - FDD& TDD LTE: 1Gbps DL(Cat 16), 150Mbps
    - UL(Cat 13, 2CA on intra bands)
    - UMTS/HSPA+: 42Mbps DL(Cat 24), 11.5Mbps
    - UL(Cat 7)
    * Interface
    - USIM: 3V/1.8V
    - PCIe
    - BodySar
    * Driver: Windows 10
    * Approval:
    - CE / CCC / FCC / GCF / PTCRB etc. 100+ countries certification
    - AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus


  • Elite Dragonfly

  • HP EliteBook X360 1040 G5

  • HP EliteBook x360 1040 G6

  • HP EliteBook x360 830 G5

  • HP EliteBook x360 830 G6

  • HP EliteBook 830 G6

  • HP EliteBook 840 G5

  • HP EliteBook 840 G6

  • HP EliteBook 850 G6

  • HP Elite x2 G4

  • HP Spectre x360

  • HP Z1 Entry Tower G5

  • HP ZBOOK 14U G6



  • Card Type Device: 4G Card
  • Application: Laptop
  • Wireless Protocol: LTE FDD: Banda 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25
  • Transmission Rate: 10/100/1000Mbps
  • Package: No
  • Kind: Internal
  • Interface Type: M.2
  • Type: Wireless
  • Certification: FCC
  • Model Number: L860-GL
  • Brand Name: WDXUN
  • Origin: Mainland China
