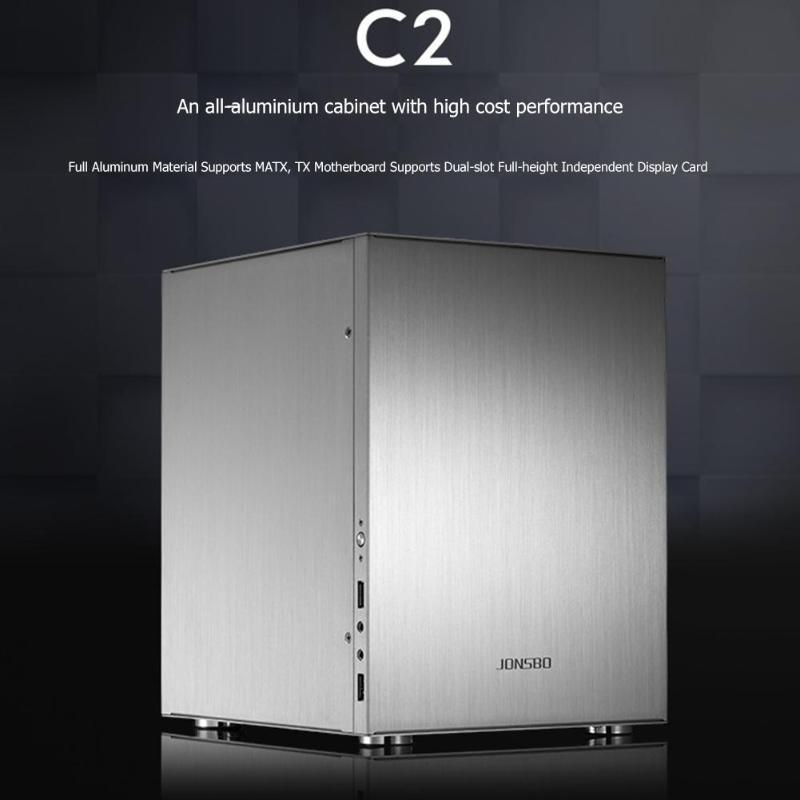

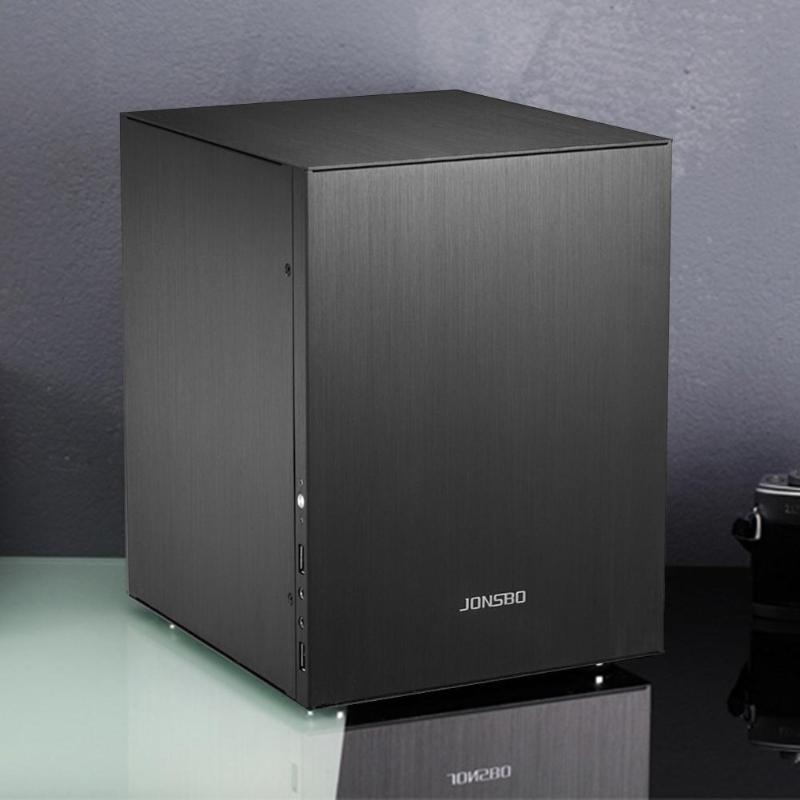

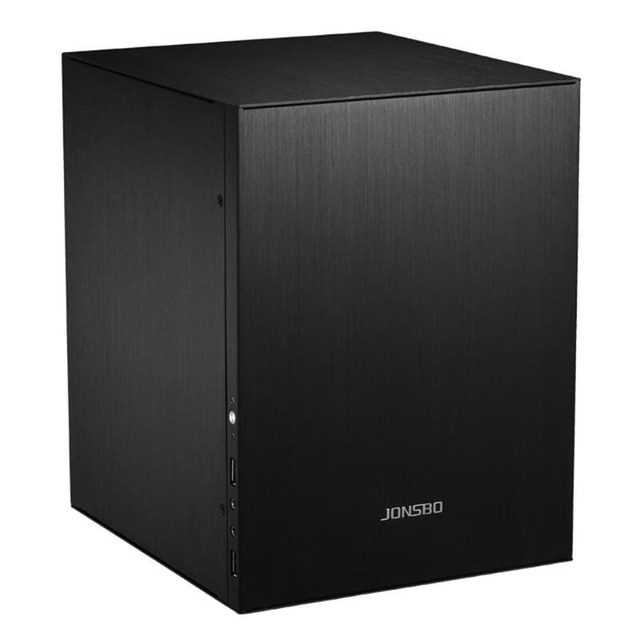

Jonsbo C2 Mini ITX/Micro-ATX PC Case корпус для пк PC 케이스 Computer Desktop PC Chassis for 170*170mm/245*215mm Motherboard
5.0 (1 votes) | 9 orders
Price:
US $86.09 - 203.05
/ piece
Discount Price:
US $
51.79 -
112.70
/ piece
-40%
- Ships From
- Color
-
-
Sorry! This item is out of stock
Features:

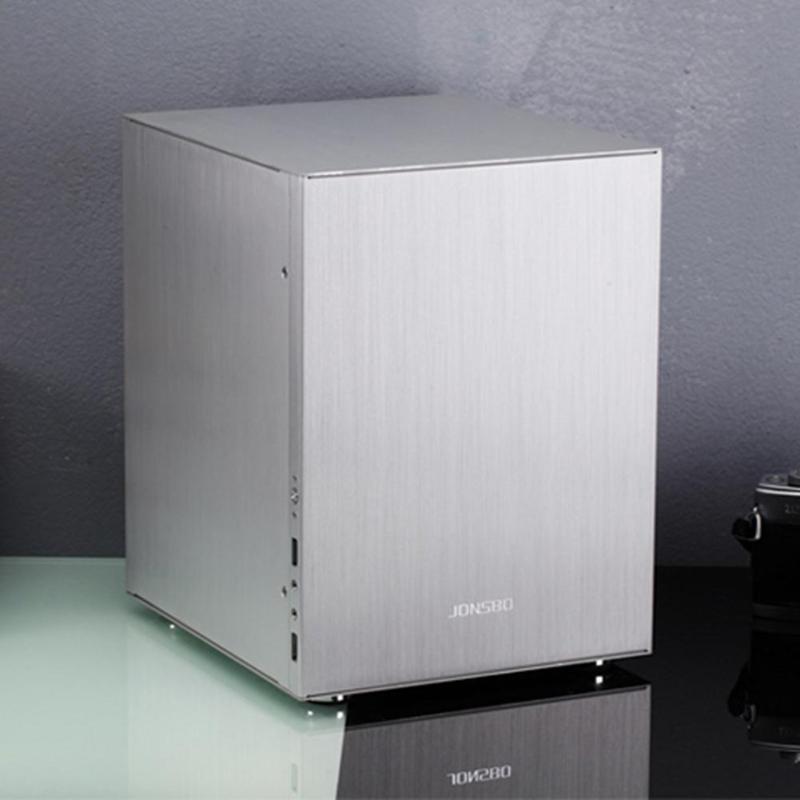

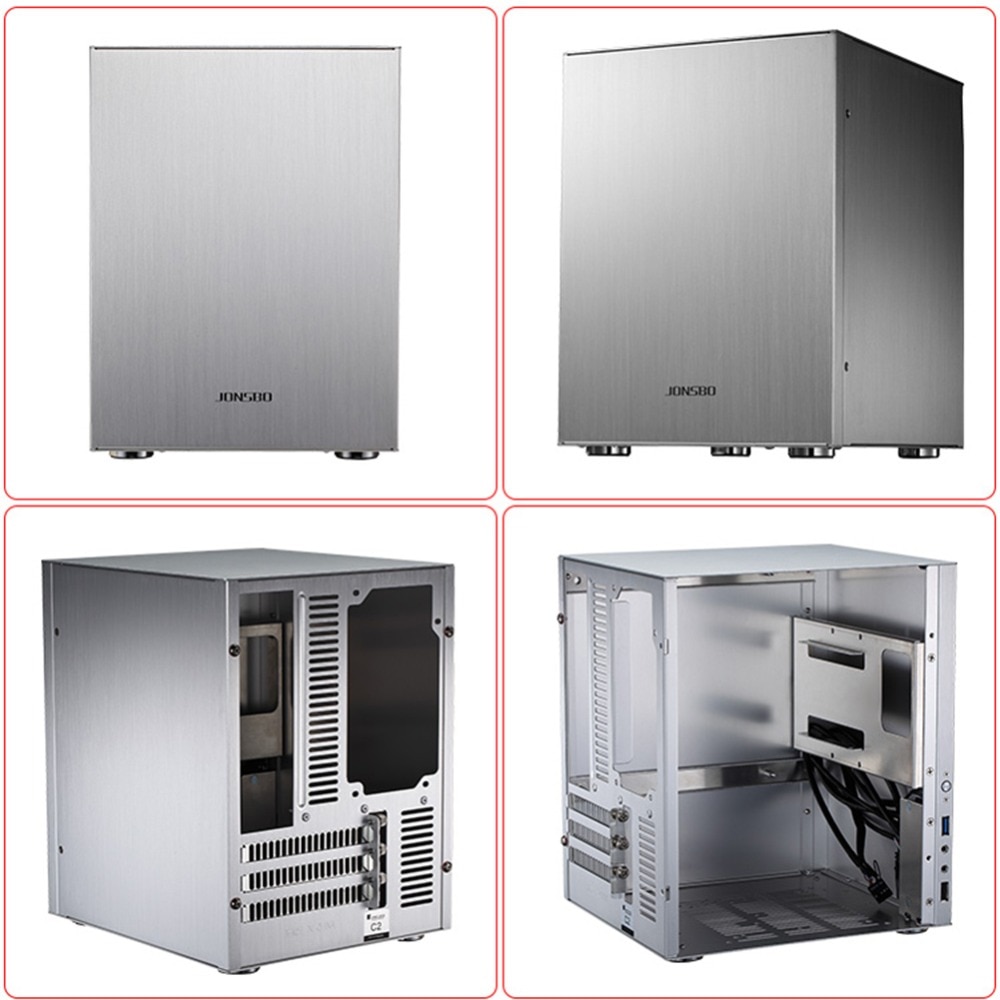

1. This chassis is designed with right angle elements under the premise of ensuring beauty, craftsmanship and quality.
2. Screw hole, USB port, cooling hole and other details of the arrangement can often reflect a manufacturer's attitude towards the product and the beauty of the control. In order to maintain the simplicity of the product, the C2's top cover and double side panels are not designed with any venting holes, and the venting holes are hidden to the bottom of the chassis. The fixing method of the top cover and the USB interface adopts the no screw surface screwing process.

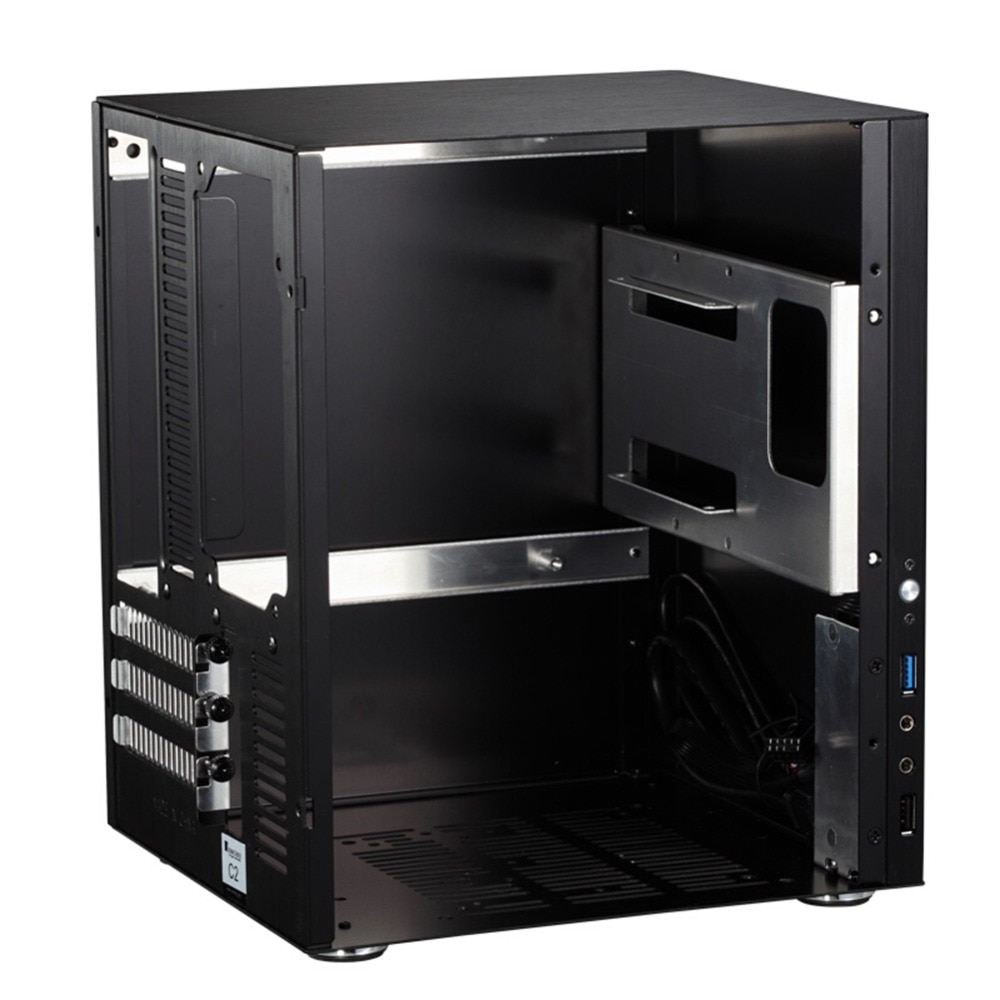

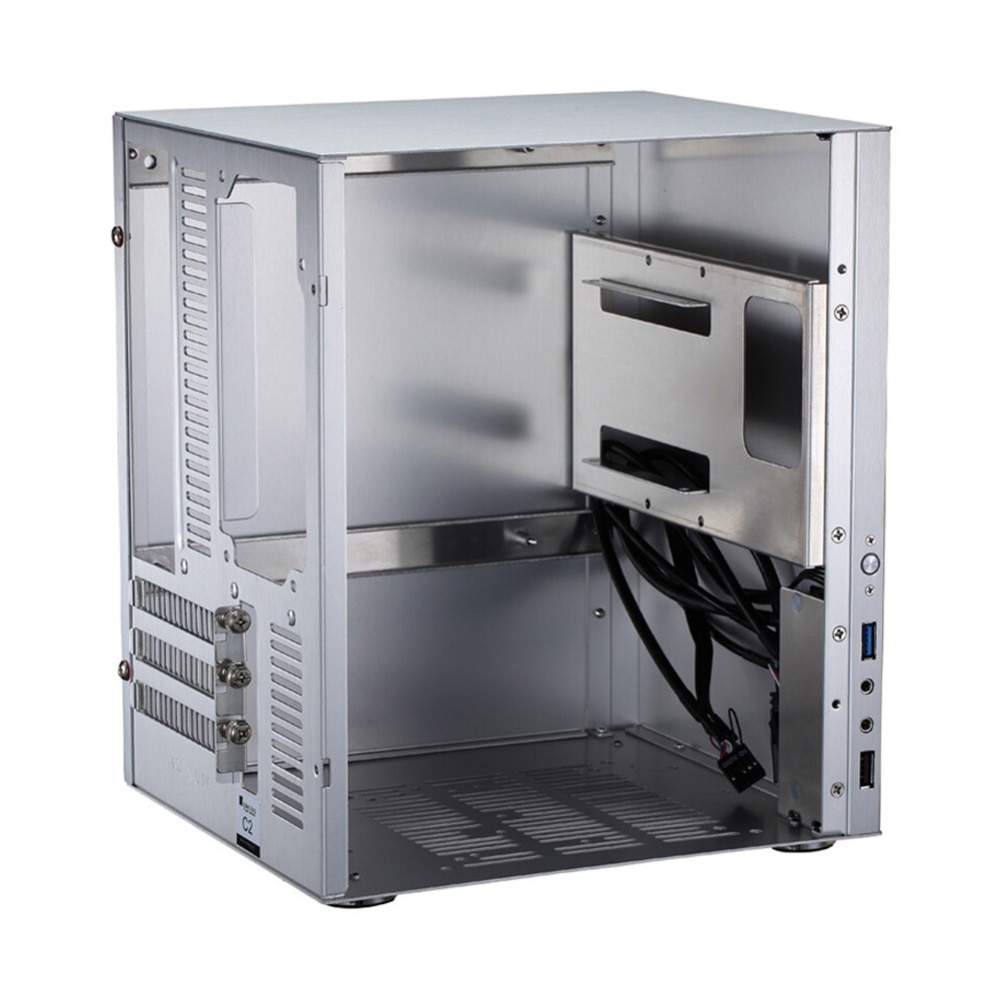

3. For C2 hardware support, I believe you will be more surprised, it is a chassis with wide compatibility. It can support ATX power, 3.5 and 2.5-inch hard drive, full-height dual-slot independent graphics card, all ITX motherboards, even MATX motherboards within 245*215mm.

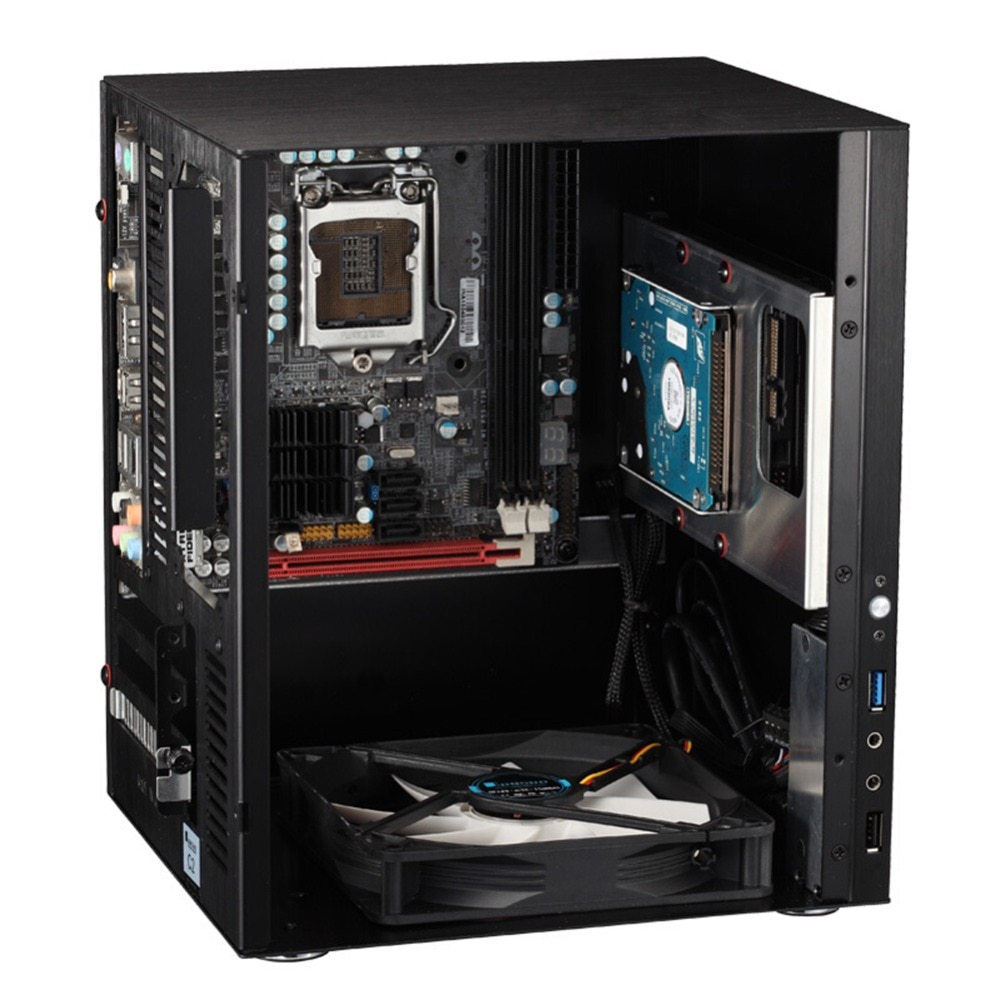

4. For C2 and the same kind of other products, the most obvious difference is that active cooling fan space is added with the appearance and volume hardly being affected for C2. The cooling holes hidden in the bottom of the chassis can support a 12cm or 14cm fan. The length of the graphics card is also supported to 220mm. If you need a small, low-cost chassis that is cheap and scalable, I believe C2 will be a good choice.
Specifications:
Supported motherboard type: for Mini ITX/Micro-ATX (245x215mm)
- For 170*170mm motherboard: hard disk is 2*3.5, 2*2.5 (when the bottom is equipped with a 12 or 14cm fan, hard disk is 1*3.5, 1*2.5)
- For 245*215mm motherboard: hard disk is 1*3.5 or 1*2.5
Cooling system: 1*120/140mm (non-standard configuration)
Supported CPU heat sink height: 80mm/3.15"
Supported graphics card length: 220mm/8.66"
Front interface: USB3.0*1, USB2.0*1, headphone*1, microphone*1
Power support: PSII (ATX)
PCI expansion slots: 3
Material: 1.5mm anode aluminum alloy plate for upper cover, 1.0mm alloy aluminum for hard disk frame, 1.2mm aluminum alloy for other structure

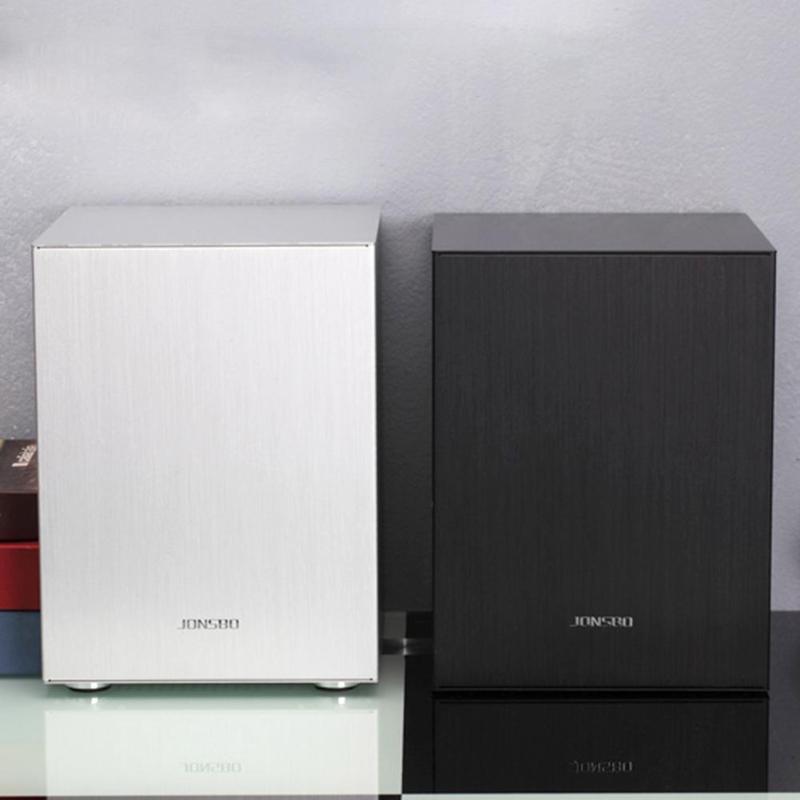

Color: Black/ Silver

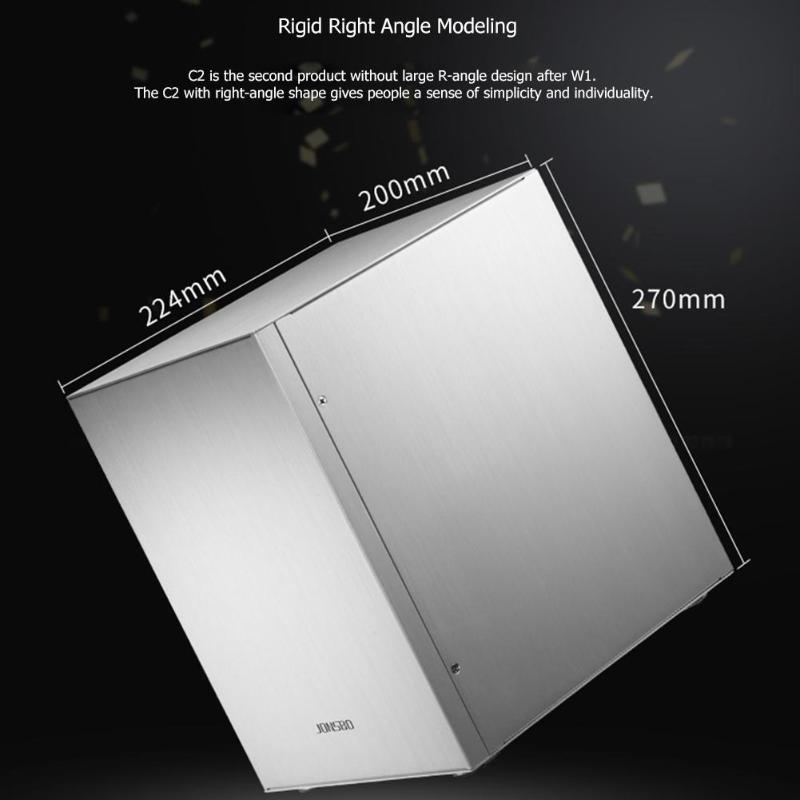

Size: 200x224x270mm/7.87*8.82*10.6"
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not show the actual color of the item because of different photographing light, angle and display monitor.
Packages:
1 X Computer Case
1 X Mounting Screw Package
1 X Manual
1. This chassis is designed with right angle elements under the premise of ensuring beauty, craftsmanship and quality.
2. Screw hole, USB port, cooling hole and other details of the arrangement can often reflect a manufacturer's attitude towards the product and the beauty of the control. In order to maintain the simplicity of the product, the C2's top cover and double side panels are not designed with any venting holes, and the venting holes are hidden to the bottom of the chassis. The fixing method of the top cover and the USB interface adopts the no screw surface screwing process.
3. For C2 hardware support, I believe you will be more surprised, it is a chassis with wide compatibility. It can support ATX power, 3.5 and 2.5-inch hard drive, full-height dual-slot independent graphics card, all ITX motherboards, even MATX motherboards within 245*215mm.
4. For C2 and the same kind of other products, the most obvious difference is that active cooling fan space is added with the appearance and volume hardly being affected for C2. The cooling holes hidden in the bottom of the chassis can support a 12cm or 14cm fan. The length of the graphics card is also supported to 220mm. If you need a small, low-cost chassis that is cheap and scalable, I believe C2 will be a good choice.
Specifications:
Supported motherboard type: for Mini ITX/Micro-ATX (245x215mm)
- For 170*170mm motherboard: hard disk is 2*3.5, 2*2.5 (when the bottom is equipped with a 12 or 14cm fan, hard disk is 1*3.5, 1*2.5)
- For 245*215mm motherboard: hard disk is 1*3.5 or 1*2.5
Cooling system: 1*120/140mm (non-standard configuration)
Supported CPU heat sink height: 80mm/3.15"
Supported graphics card length: 220mm/8.66"
Front interface: USB3.0*1, USB2.0*1, headphone*1, microphone*1
Power support: PSII (ATX)
PCI expansion slots: 3
Material: 1.5mm anode aluminum alloy plate for upper cover, 1.0mm alloy aluminum for hard disk frame, 1.2mm aluminum alloy for other structure
Color: Black/ Silver
Size: 200x224x270mm/7.87*8.82*10.6"
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not show the actual color of the item because of different photographing light, angle and display monitor.
Packages:
1 X Computer Case
1 X Mounting Screw Package
1 X Manual
1. There is no limited stock to fulfill the orders on a daily basis.
2. For USA/CA /RU the shipping is quickly.
3. Priority delivery,fast delivery in 48 hours.
2. For USA/CA /RU the shipping is quickly.
3. Priority delivery,fast delivery in 48 hours.
4. No invoice or receip or promotional materials included.
- Brand Name: Jonsbo
- Type: Vertical
- Form Factor: Mini-ITX
- RGB Support: NO RGB
- Case Weight: 1.7kg
- Material: Aluminum Alloy
- Origin: Mainland China
- Power Model: ATX
- Case Size: /
- Model Number: C2 Aluminum Computer Case
- Chassis Type: Desktops
- Application: Desktop
- Front Ports: USB
- Feature 1: Computer DIY/DIYer
- Feature 2: 24.5*21.5CM MATX Motherboard
- Feature 3: ITX
- Feature 4: Personal Computer Shell
- Feature 5: mini itx pc cases
- Supported motherboard type:: for Mini ITX/Micro-ATX (245x215mm)
- Cooling system: 1*120/140mm
- Supported CPU heat sink height:: 80mm/3.15"
- Supported graphics card length:: 220mm/8.66"
- Front interface: USB3.0*1, USB2.0*1, headphone*1, microphone*1
- Power support: PSII (ATX)
- Color: Black/ Silver
- Feature 7: pc case
- Feature 8: computer case
