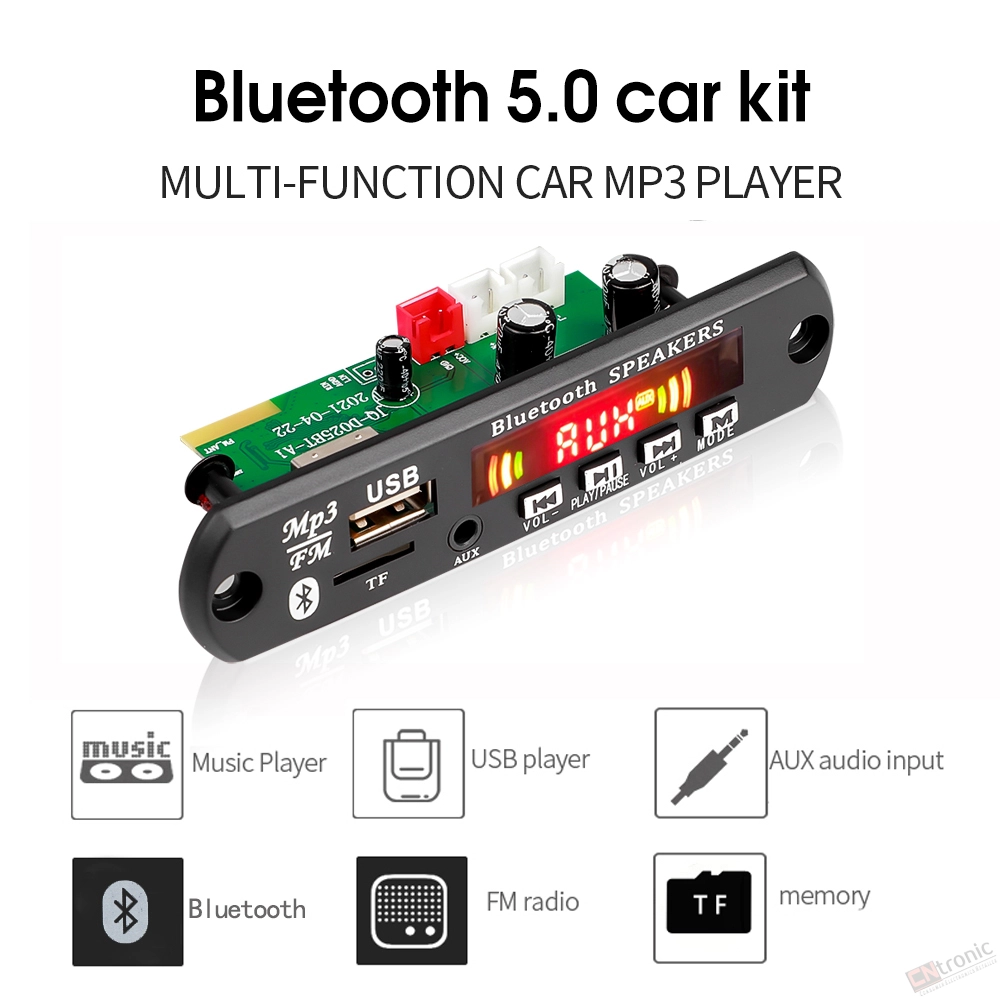

KEBIDU Hands-free MP3 Player Decoder Board 5V 12V Bluetooth5.0 80W amplifier Car FM Radio Module Support FM TF USB AUX Recorders

4.8 (45 votes) | 174 orders
Price: US $13.77 - 19.32 / piece
Discount Price:
US $ 11.23 - 14.96 / piece

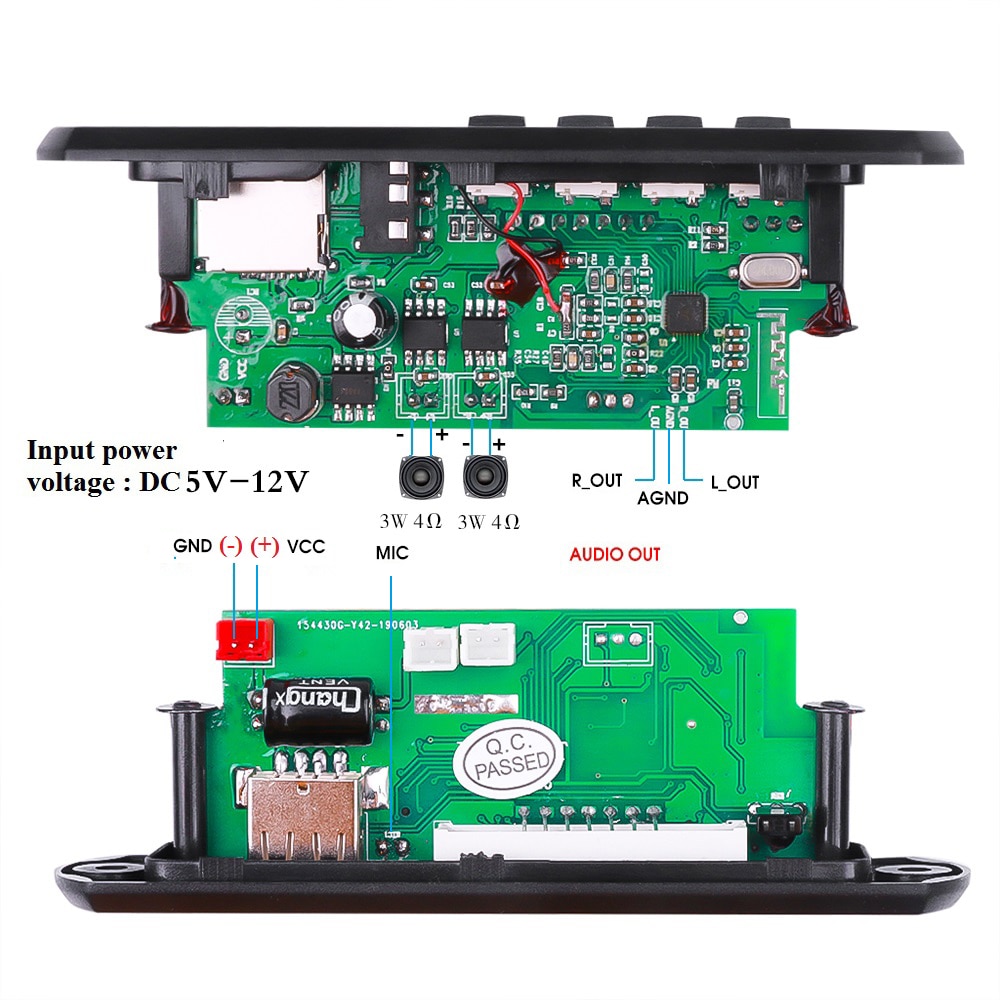

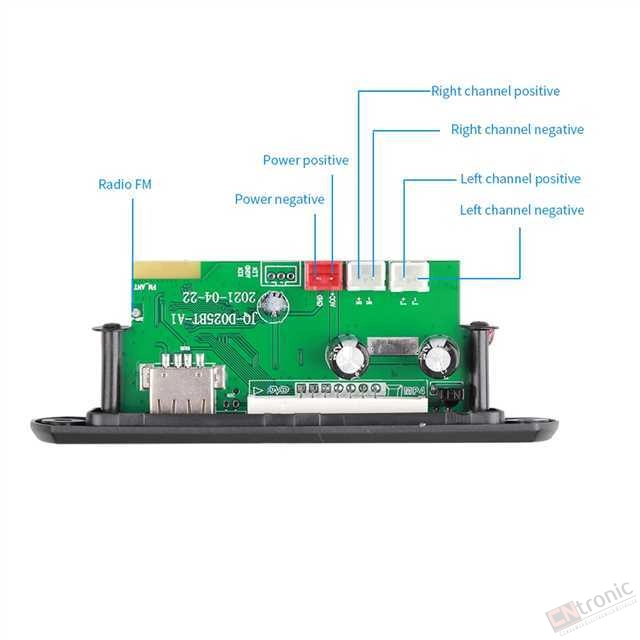

When you connect the positive and negative poles of MP3 Player, pls contact us.
Avoid WRONG operations, cause MP3 Player to be burned out.

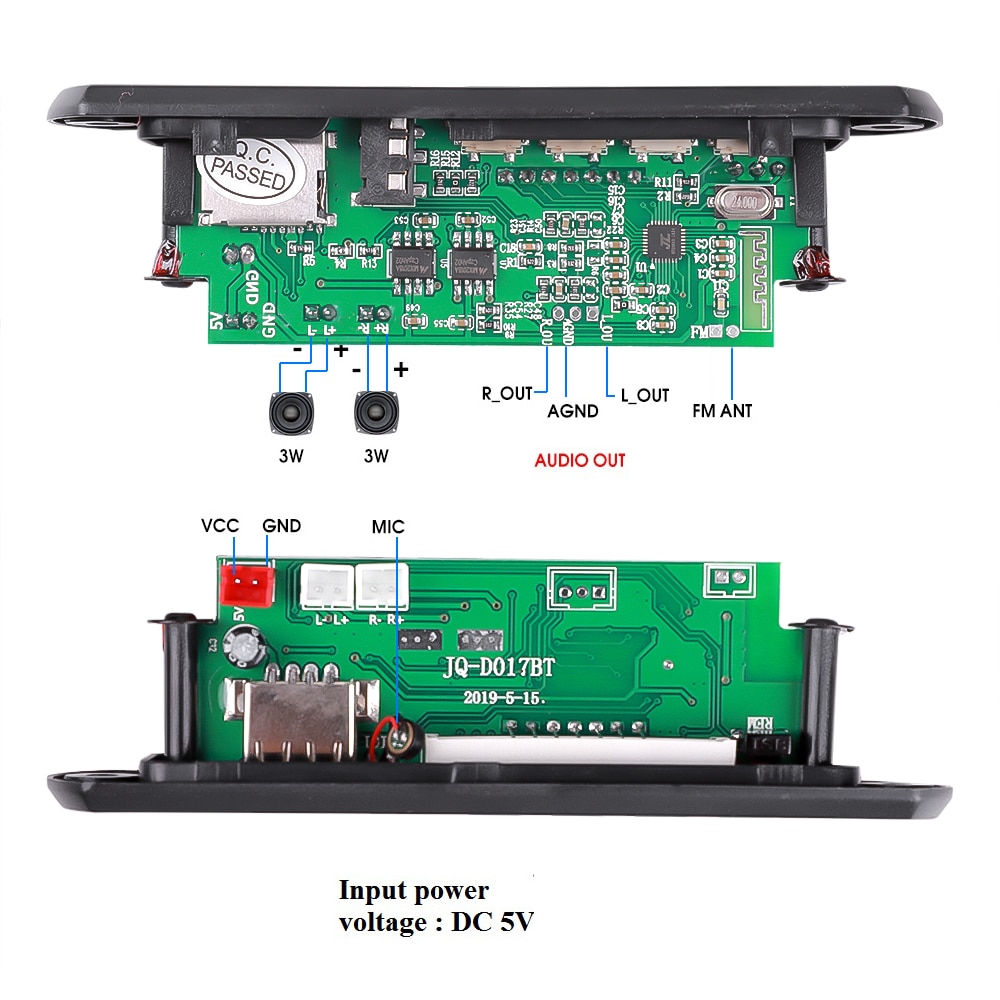

USB: Connect to U disk (maximum support 32GB)
LED Color Screen: Digital Screen Display, Red Screen Display

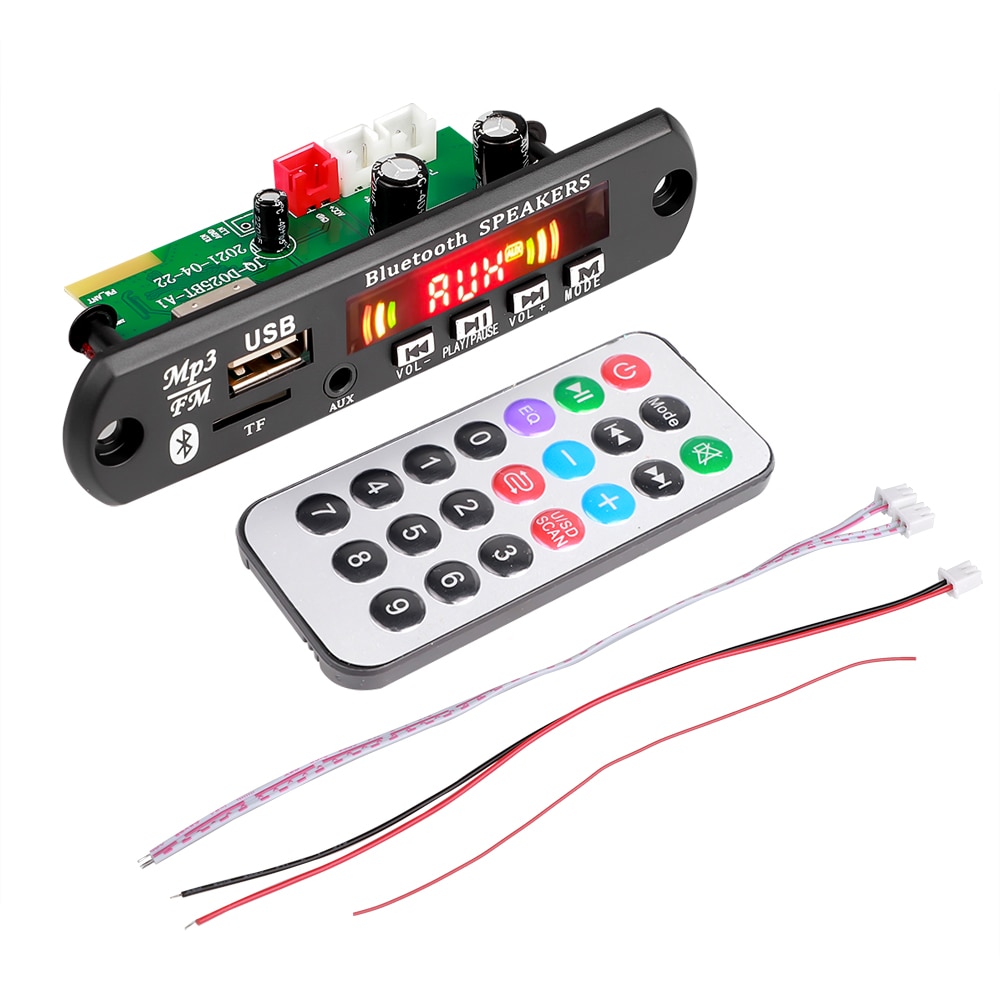

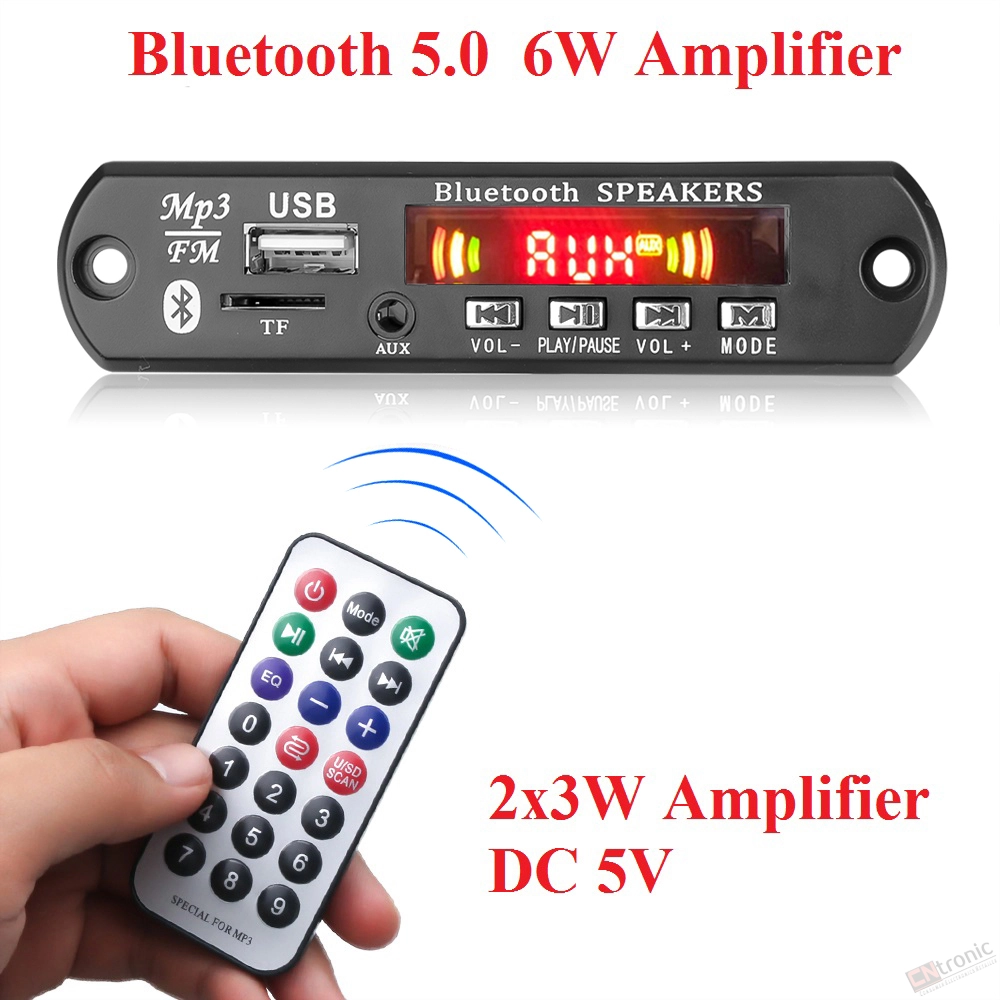

Infrared receiving module
TF: Connect to TF memory card (maximum support 32GB)
AUX: Audio Input Interface
VOL-: Short press is the last song; Long press is the volume reduction.
PLAY/PAUSE: Short press is the switch between pause and playback; Long press is the radio FM automatic station.
VOL+: Short press is to choose the next song; Long press is to increase the volume.
Master IC: AC6926
Bluetooth IC: AC6926 Bluetooth version is version 5.0
Music format: MP3/WMA/WAV/FLAC/APE lossless format music

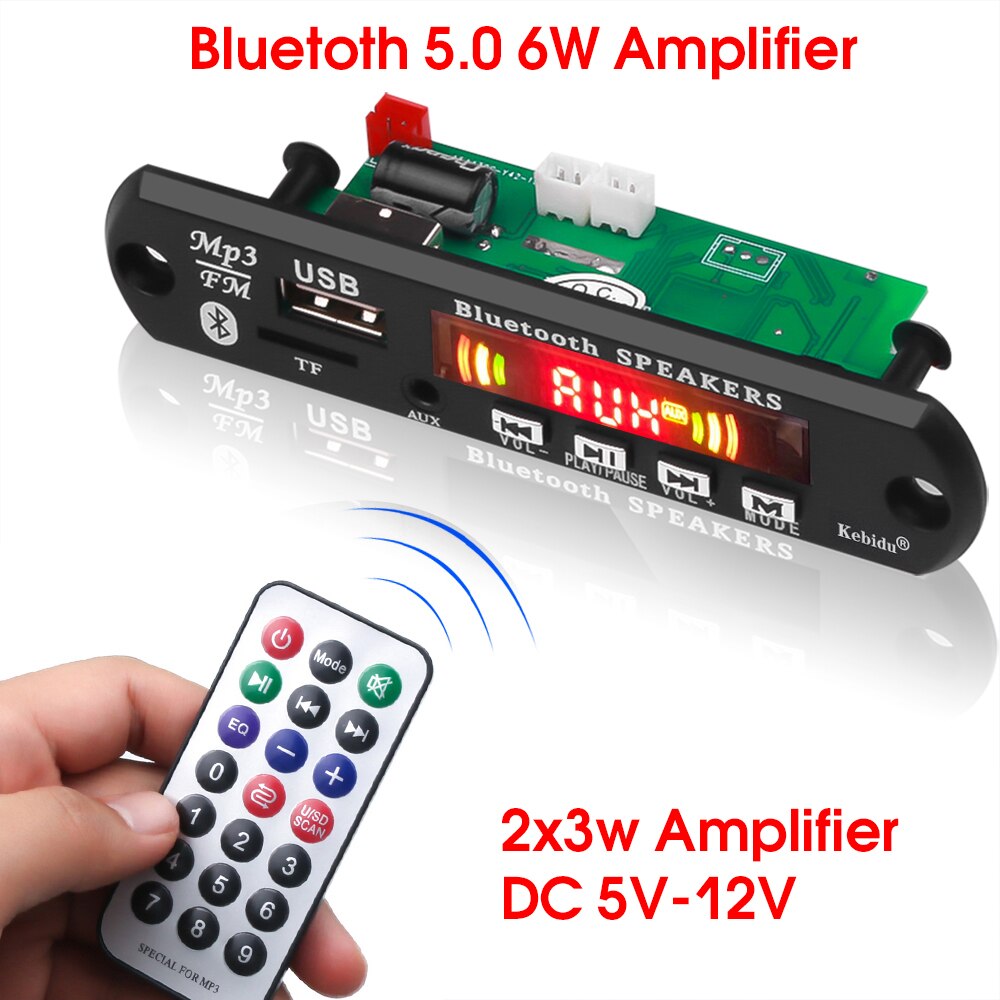

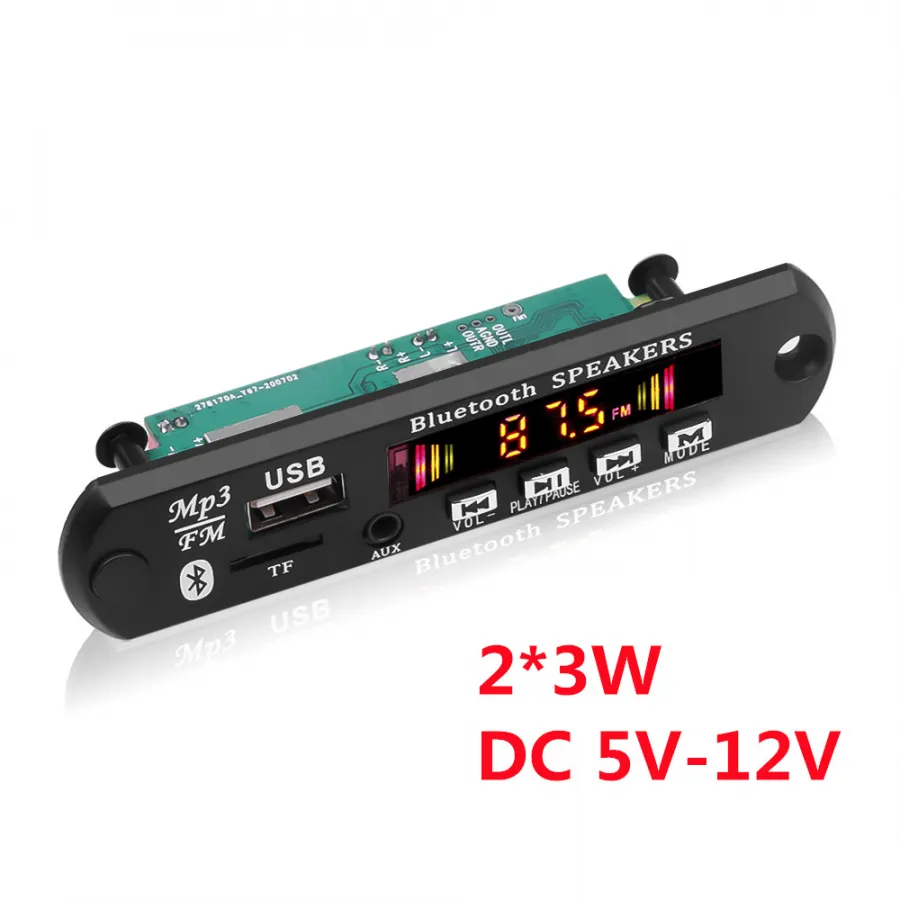

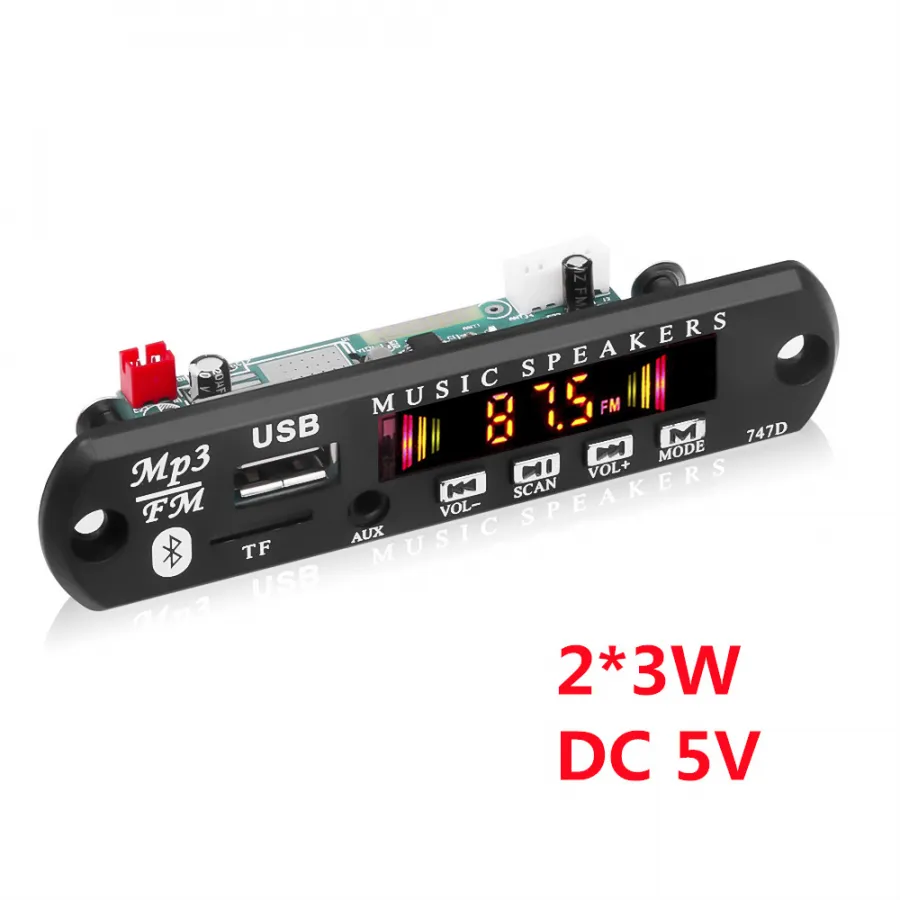

Power: 2*3W, connected to two 3W speakers
Radio FM Frequency: 87.5-107.5 MHZ

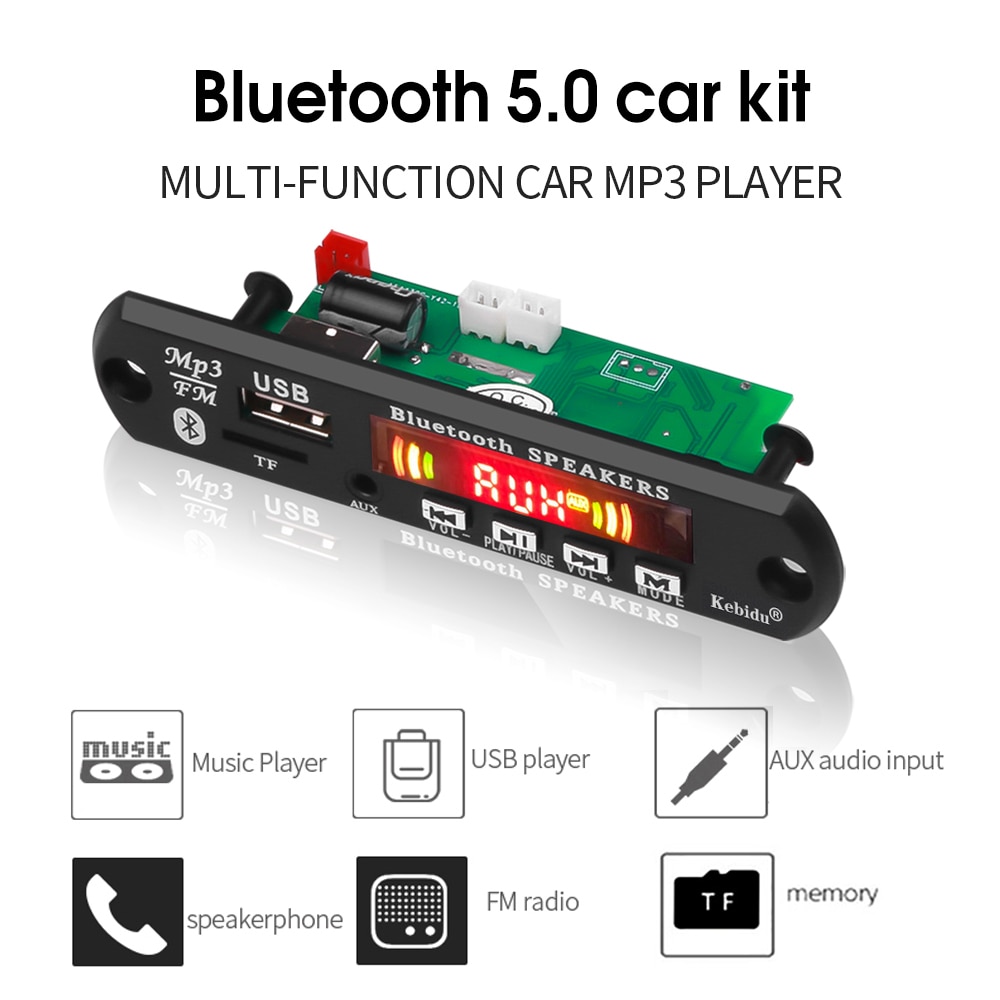

Introduction of Support Functions: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote Control/DC 5V
About structure: panel size: 107 * 25 MM, panel corner and screw hole position, then cover surface, the depth of the board is 32 MM
Description of recording function
1. Press the MODE button for a long time to start recording, and then press the MODE button for a long time to cancel recording function.
2. Press the PLAY/PAUSE key to play the recording file.
3. When recording, it is more necessary to connect a storage device, such as a U disk or a TF card.

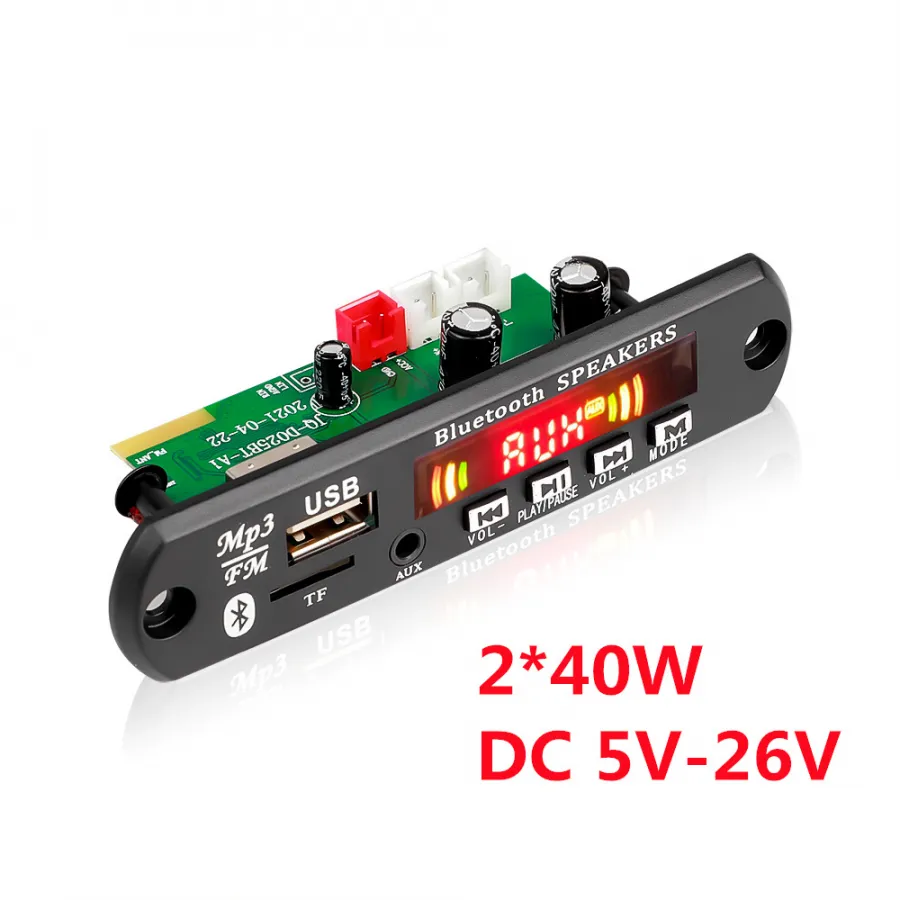

DC 5V-26V 2*40W

Bluetooth version 5.0
Power amplifier: 2*40W
Bluetooth call function
recording function
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Radio FM frequency: 87.5-107.5 MHZ
Folder switching function
Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH/remote control connection/DC 5V-26V
About the structure: Panel size: 107 * 25 MM, the depth of the board is 38 MM

Description of recording function
1. Long press the MODE button to start recording, and long press the MODE button again to cancel the recording function;
2. Long press the PLAY/PAUSE button to play the recording file;
3. When recording, you need to connect a storage device, such as U disk or TF card;

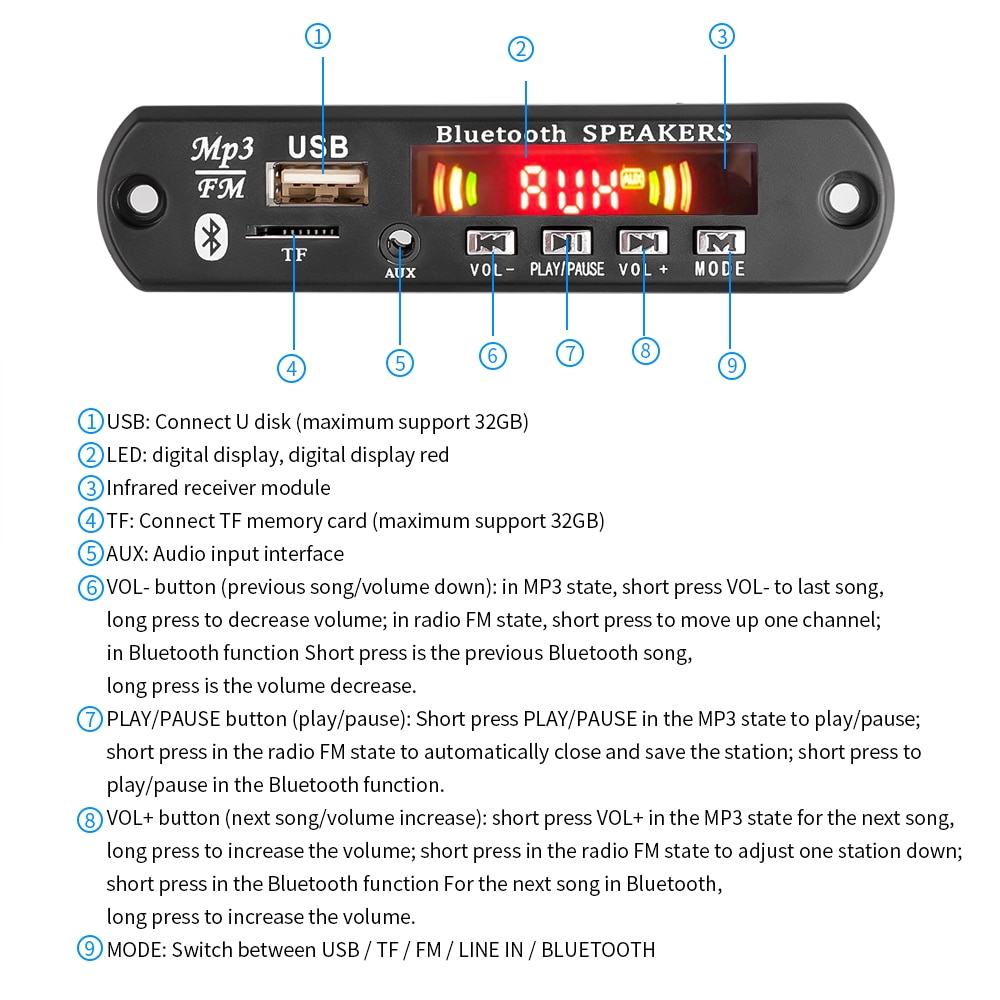

Button function
USB: Connect U disk (maximum support 32GB)
LED: digital display, digital display red
Infrared receiver module
TF: Connect TF memory card (maximum support 32GB)
AUX: Audio input interface
VOL- button (previous song/volume down): in MP3 state, short press VOL- to last song, long press to decrease volume; in radio FM state, short press to move up one channel; in Bluetooth function Short press is the previous Bluetooth song, long press is the volume decrease.
PLAY/PAUSE button (play/pause): Short press PLAY/PAUSE in the MP3 state to play/pause; short press in the radio FM state to automatically close and save the station; short press to play/pause in the Bluetooth function.
VOL+ button (next song/volume increase): short press VOL+ in the MP3 state for the next song, long press to increase the volume; short press in the radio FM state to adjust one station down; short press in the Bluetooth function For the next song in Bluetooth, long press to increase the volume.
MODE: Switch between USB / TF / FM / LINE IN / BLUETOOTH

  • WIFI: No
  • DSP: -
  • DAC: -
  • Dimensions (WxHxD): -
  • Body Material: Plastic
  • Bluetooth: Yes
  • Supports EBook Reading: No
  • Operation Mode: Touch Tone
  • Storage Type: Flash Memory
  • Have Speakers or not: Yes
  • Supports FM: Yes
  • Battery Specification: External Power
  • Signal Noise Ratio: ≥89dB
  • Supports Recording Function: Yes
  • Display Size: None
  • Package: No
  • Function: Voice Recorder,FM Radio,bluetooth
  • Model Number: Bluetooth MP3 Player
  • Style: Car MP3
  • Battery Life: > 20 hours
  • Screen: Yes
  • Balanced Out: Yes
  • External Memory: Yes
  • Audio Format Support: FLAC,ape,mp3,WAV,WMA
  • Brand Name: kebidu
  • Origin: Mainland China
  • Certification: CE
  • Master IC: AC6926
  • Bluetooth: Bluetooth 5.0
  • Music format: MP3 / WMA / WAV / FLAC / APE
  • Power: 2*3W, connect 2 3W speakers
  • FM frequency: 87.5-107.5 MHZ
  • Support: MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote control/DC 12V
  • Size: 107X25X32MM
  • Battery: no includes
