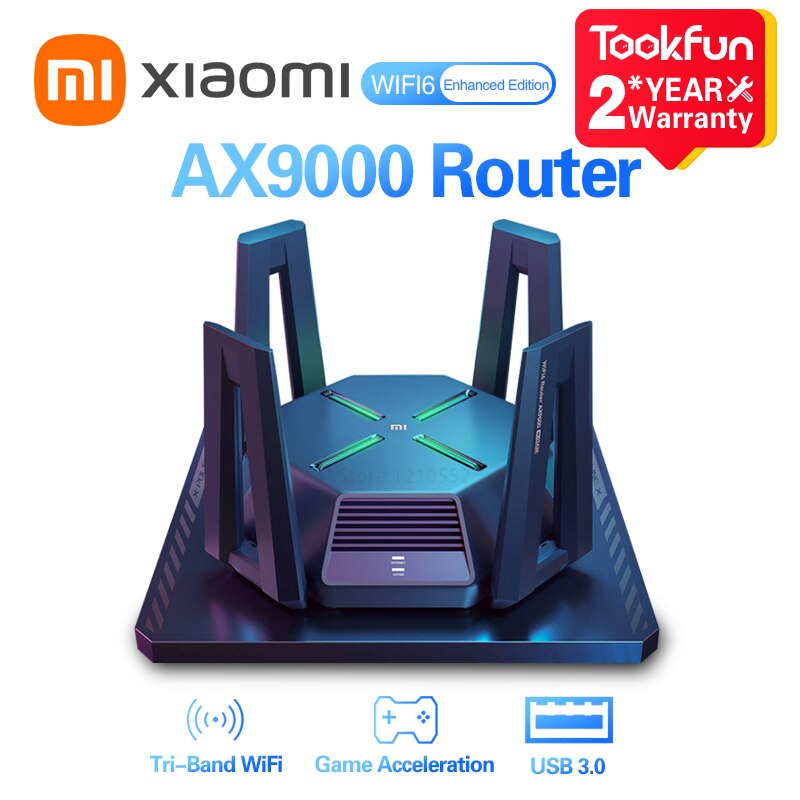

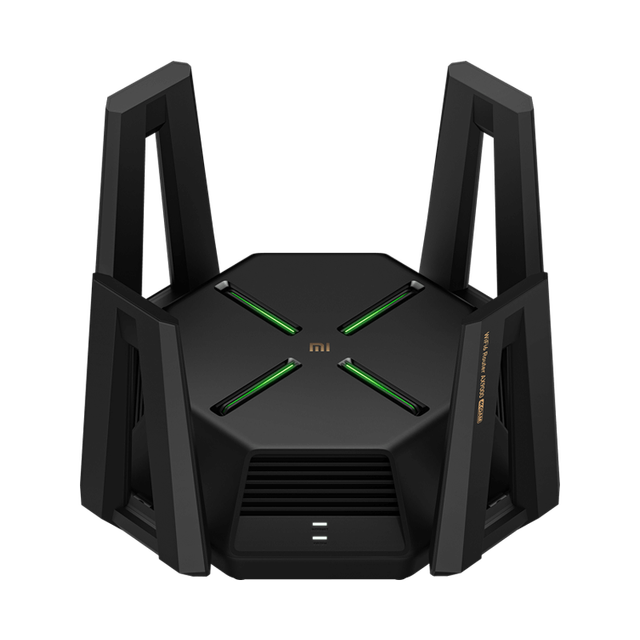

NEW Xiaomi Mi AX9000 AIoT Router Tri-Band WiFi 6 Wireless Mesh Network VPN 1GB USB3.0 Game Acceleration Repeater 12 Antennas

5.0 (4 votes)
Price: US $575.33 - 713.64 / piece
Discount Price:
US $ 466.01 - 563.59 / piece
-19%
Ships From
Bundle
Color
Quantity



* If you choose to ship from China, we will fill in the lower declared value and try our best to help you avoid tariffs, but this is not a 100% guarantee, If you receive a notice from the customs, you should assist the customs to clear customs as soon as possible, please understand, if you have special requirements, please contact us




processor

Qualcomm IPQ8072 4-core A53 2.2GHz CPU

Network acceleration engine

Dual-core 1.7GHz NPU

RAM

1GB

2,4G Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate can reach 1148Mbps)

5.2G Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate can reach 4804Mbps)

5.8G Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate can reach 2402Mbps)

Product Antenna

External high gain antenna + external AIoT antenna

Product heat dissipation

Active cooling

Whole machine interface

1 10/100/1000/2500M adaptive WAN/LAN port (Auto MDI/MDIX)
1 10/100/1000M adaptive WAN/LAN port (Auto MDI/MDIX)
3 10/100/1000M adaptive LAN Port (Auto MDI/MDIX)

LED indicator

8 (SYSTEM indicator × 1

INTERNET indicator × 1

network port × 5

atmosphere light × 1)

Router button

System reset button: 1 piece

USB3.0 interface: 1 piece

Mesh networking button: 1 piece

Power button: 1 piece

Power input interface: 1 piece

Protocol standard

IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab

Certification standards

Tookfun;GB/T9254-2008;GB4943.1-2011

Warranty information

The whole machine is guaranteed for2year

Tri-band

2.4GHz, 5.2GHz and 5.8GHz

Wireless channel

2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
5.2GHz Channel:36,40,44,48,52,56,60,64
5.8GHz Channel:149,153,157,161,165

Modulation

11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.Tookfun
Rate set: MCS0~MCS1511ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0~MCS11 (support 4 streams). 4096QAM.
Rate set: MCS12~MCS13 (support 2 streams)

operating system

MiWiFi ROM, a smart router operating system deeply customized based on OpenWRT

Wireless security

WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (black and white list), SSID hidden

Management application

Support Web, Android, iOS

Workingenvironment

Working temperature: 0-40℃

Working humidity: 10%-90%RH (non-condensing)

storage temperature: -40-70℃

Storage humidity: 5%-90%RH (non-condensing)

Product acessories

Manual:1 piece

cable:1

Product Power:1 (12V/4A)






Xiaomi AX9000 Router Main Feature


* 1GB large memory



* Three-frequency concurrent, no mutual interference



* Game exclusive frequency band, ultra-low latency



* 160MHz high bandwidth



* 4K QAM high-speed transmission



* Multi-device parallel and efficient transmission



* Qualcomm 6-core flagship chip



* 12 independent signal amplifiers



* USB3.0 high-speed interface



* WiFi6 Mesh hybrid networking



* Automatic device discovery, one-click network configuration






Detailed parameters

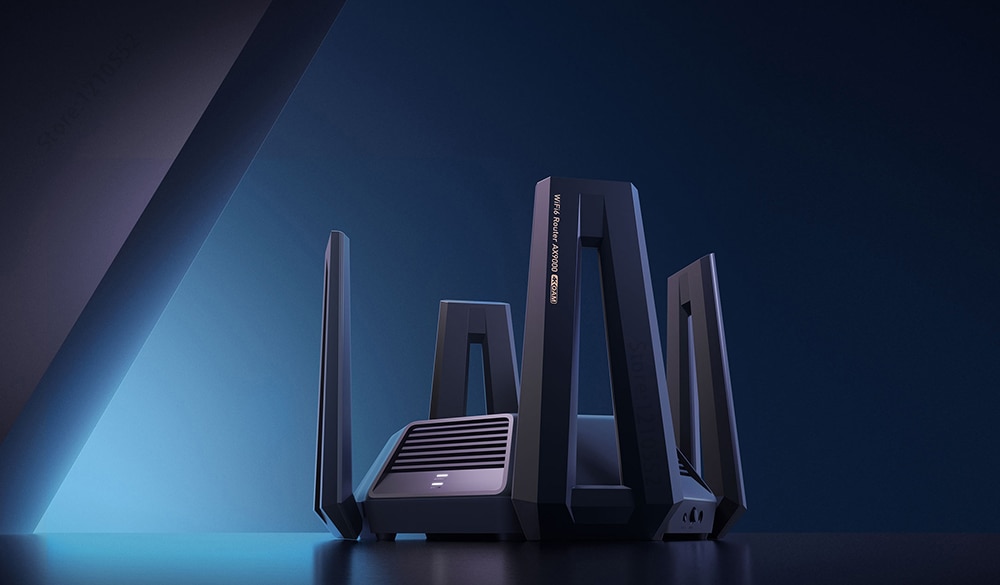

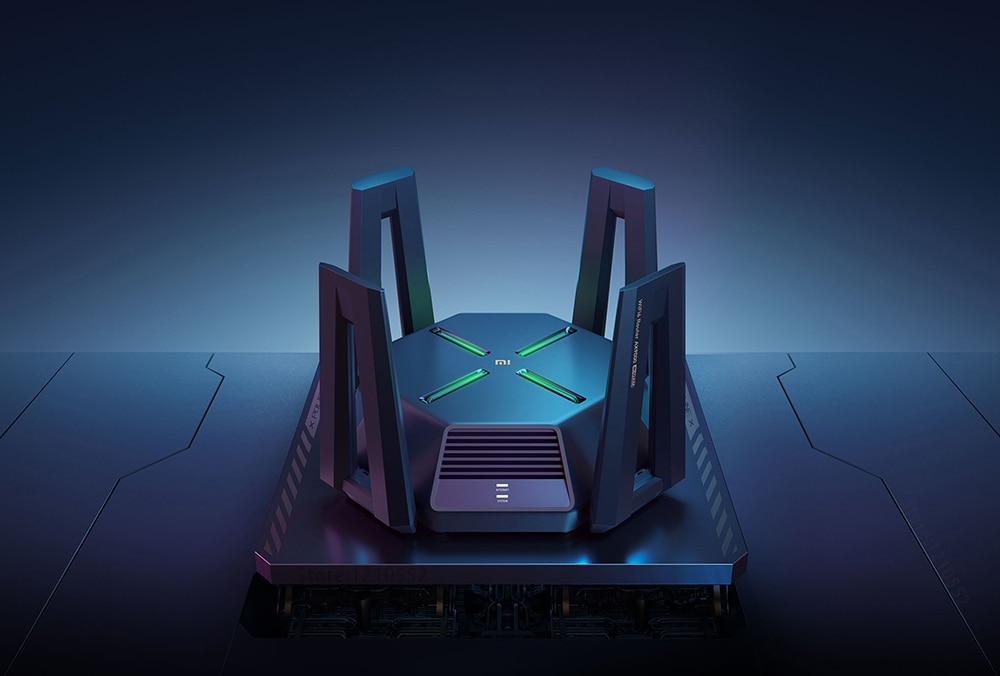

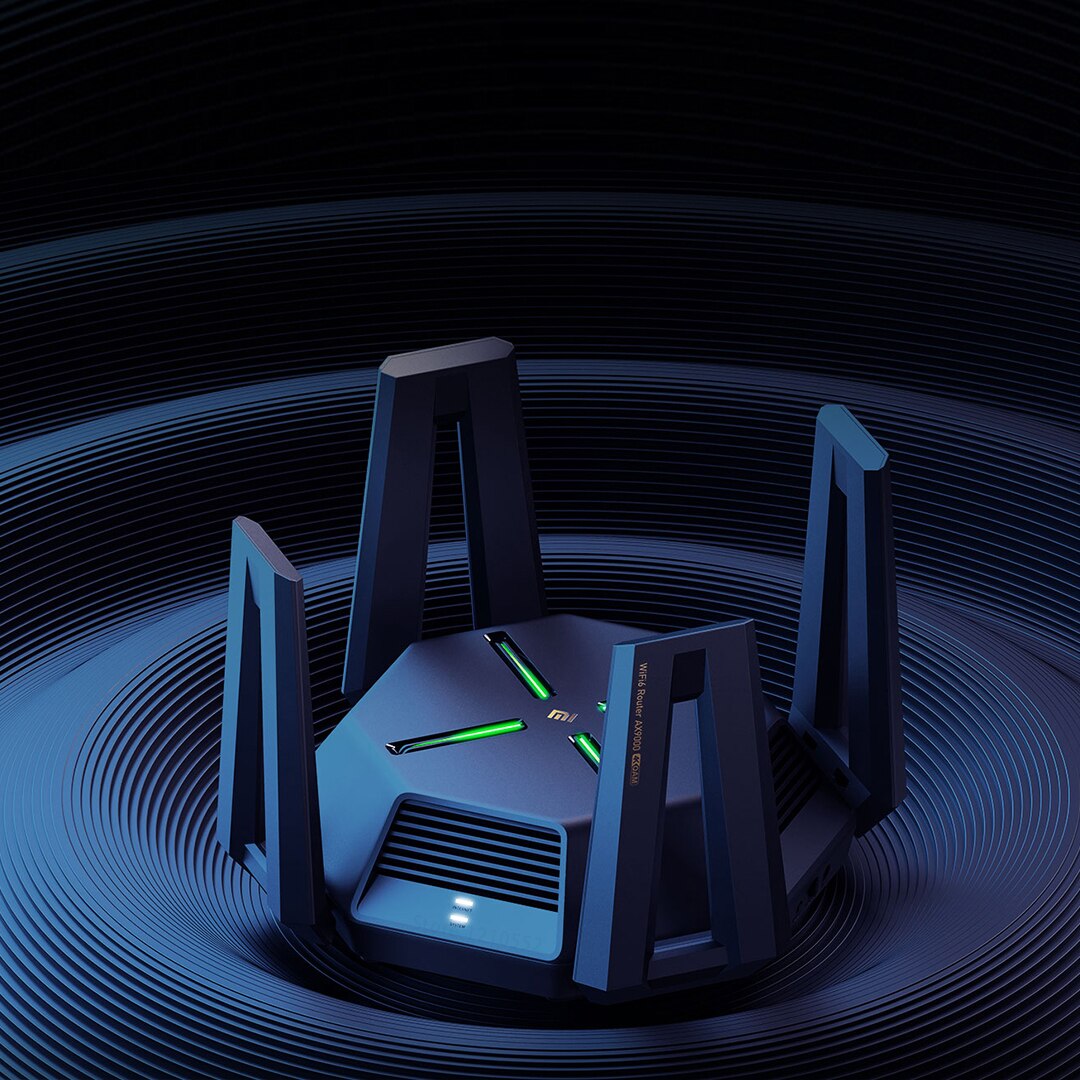

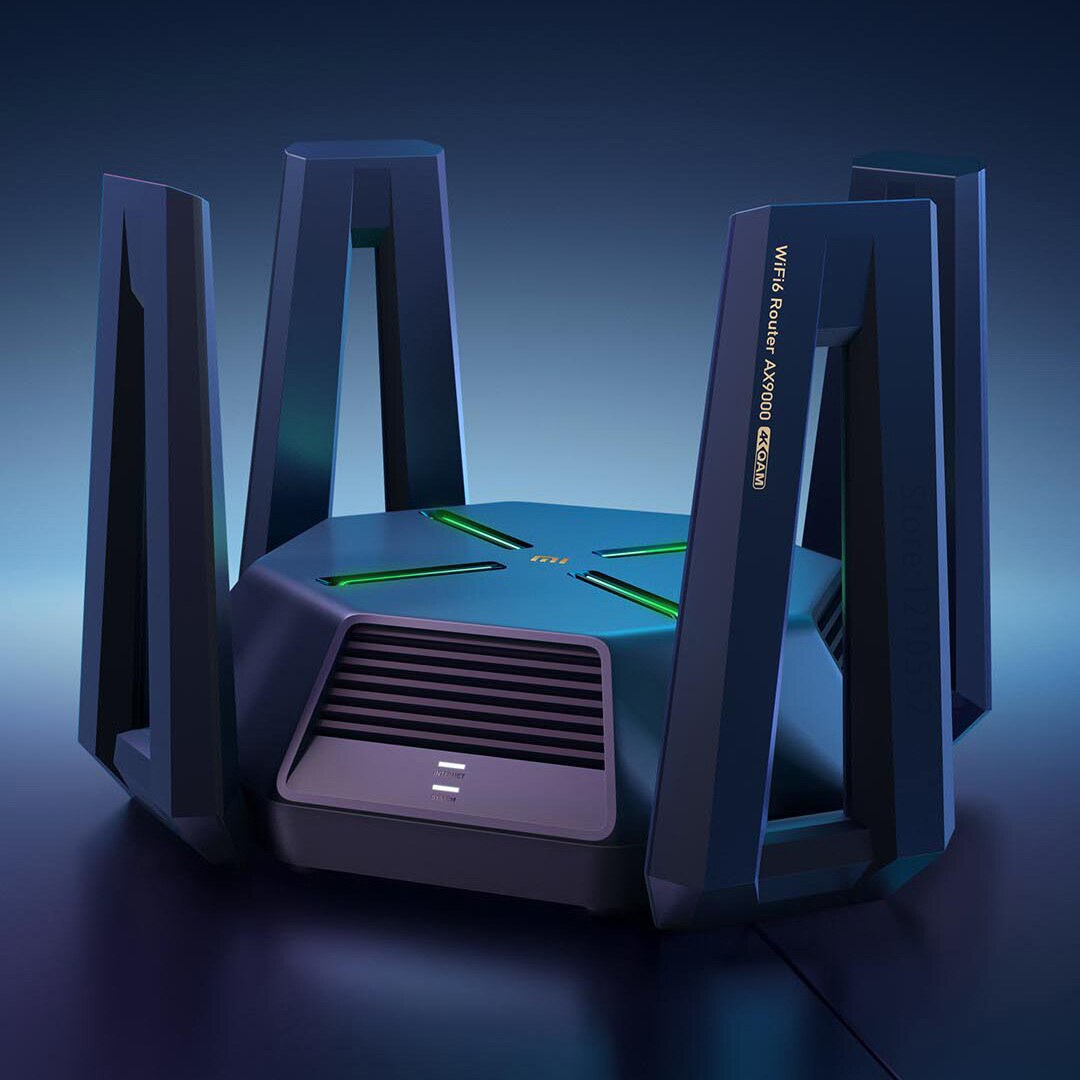

Xiaomi AX9000 Router


WiFi6 enhanced version / Tri-band gaming flagship / 9000 Mbps high-speed Internet

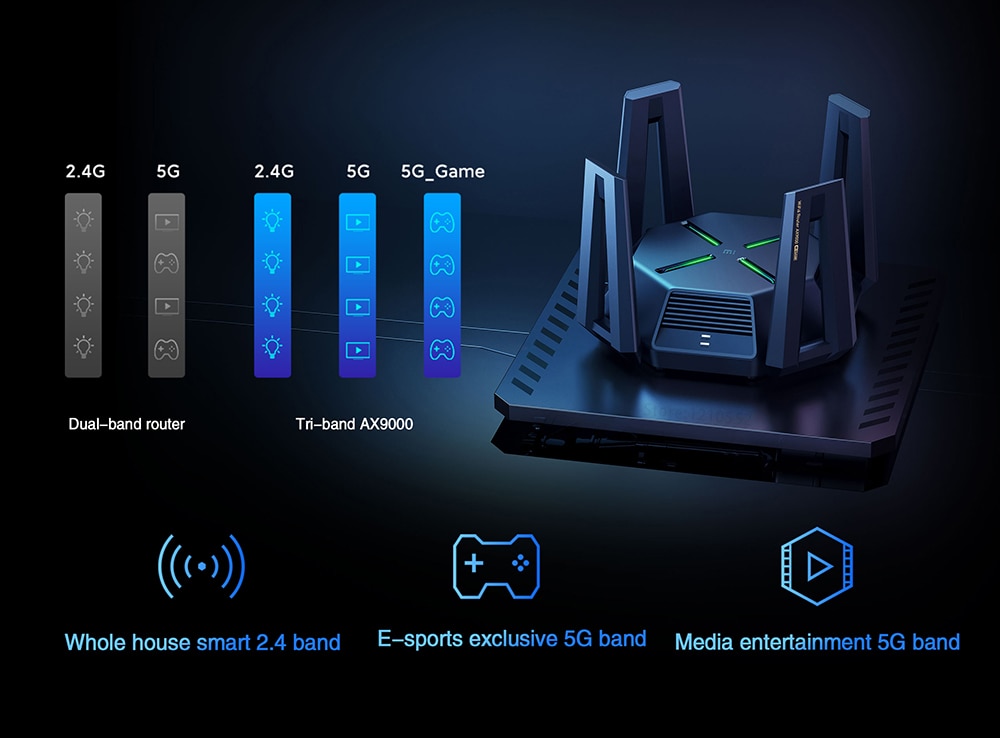

Three-frequency concurrent, no mutual interference


Game exclusive frequency band, ultra-low latency

Compared with traditional dual-band routers, the additional dedicated frequency bands for e-sports by triple-band routers allow e-sports devices to enjoy ultra-high-speed bandwidth exclusively without interference from other devices

WiFi6 enhanced version


9000Mbps extremely fast Internet experience

160MHz high bandwidth


Compared with the 80MHz frequency band, the bandwidth is doubled and the speed is doubled, which can meet the high-speed connection requirements of multiple devices.

4K QAM high-speed transmission


With a device that supports 4K QAM, WiFi is accelerated by 20%

Multi-device parallel and efficient transmission

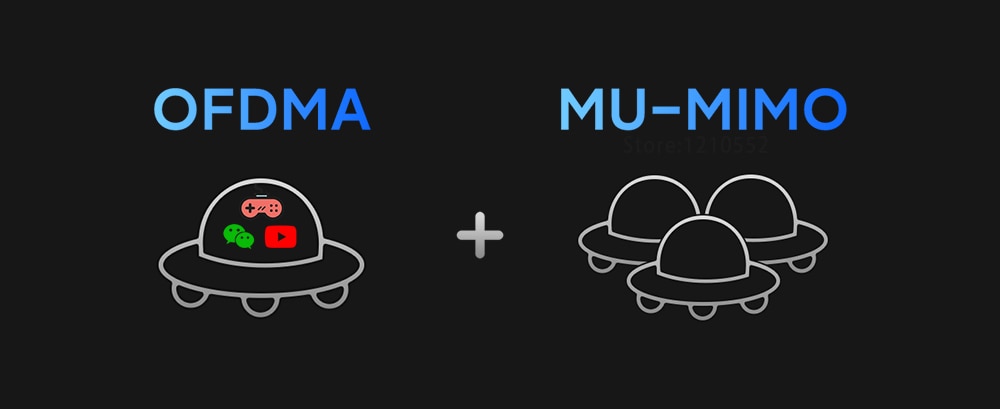

OFDMA improves the efficiency of each transmission, and MU-MIMO increases the total transmission capacity. The two are combined together, and the speed is faster and the delay is lower when multiple devices are used at the same time.

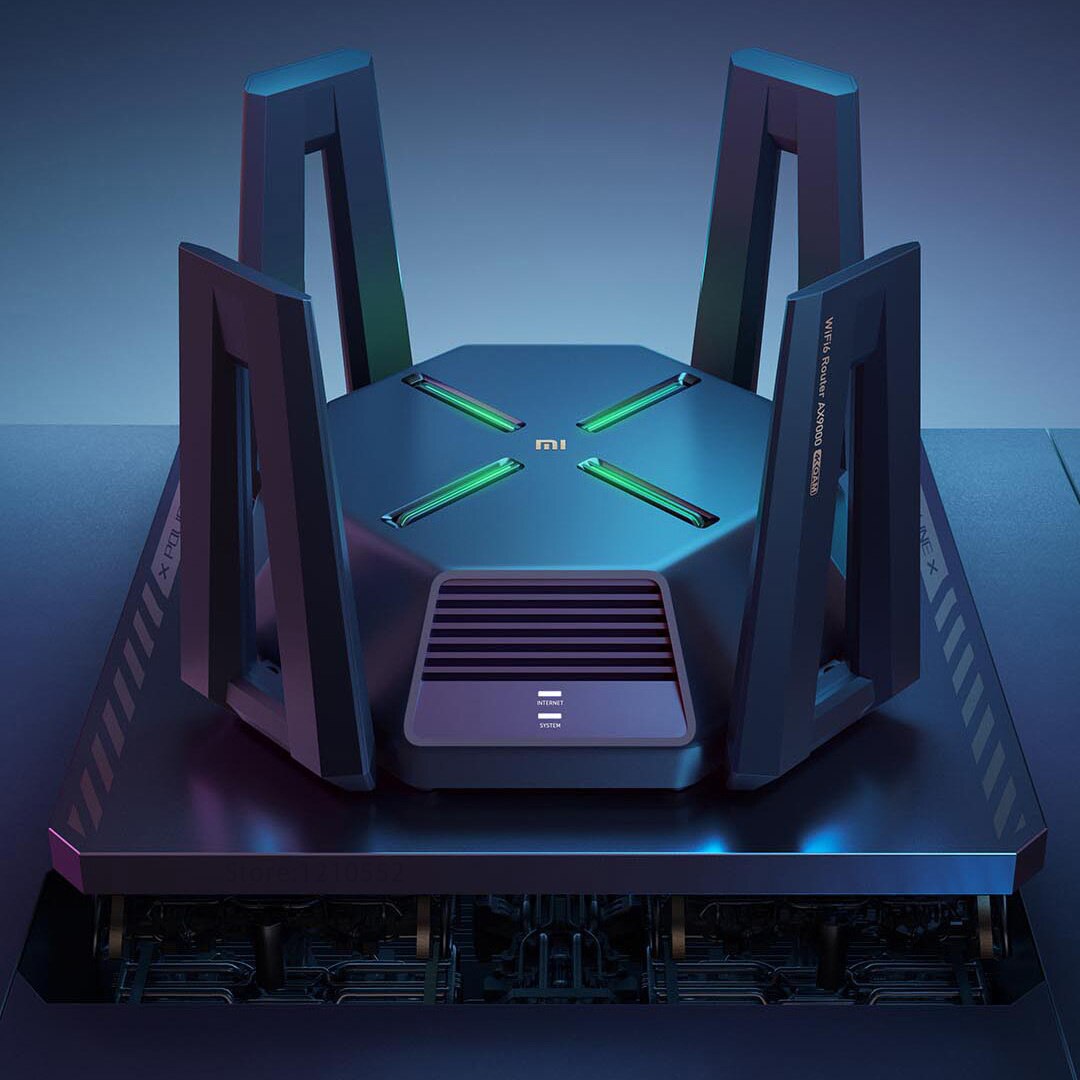

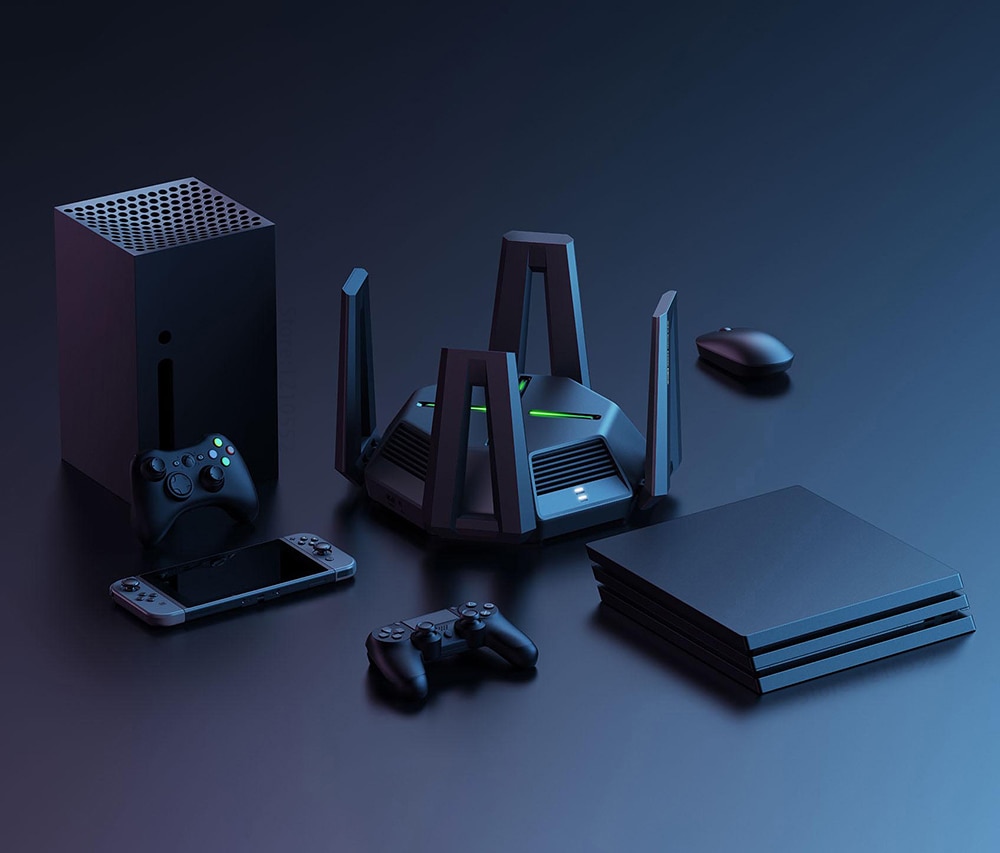

E-sports flagship configuration


Powerful performance is invincible

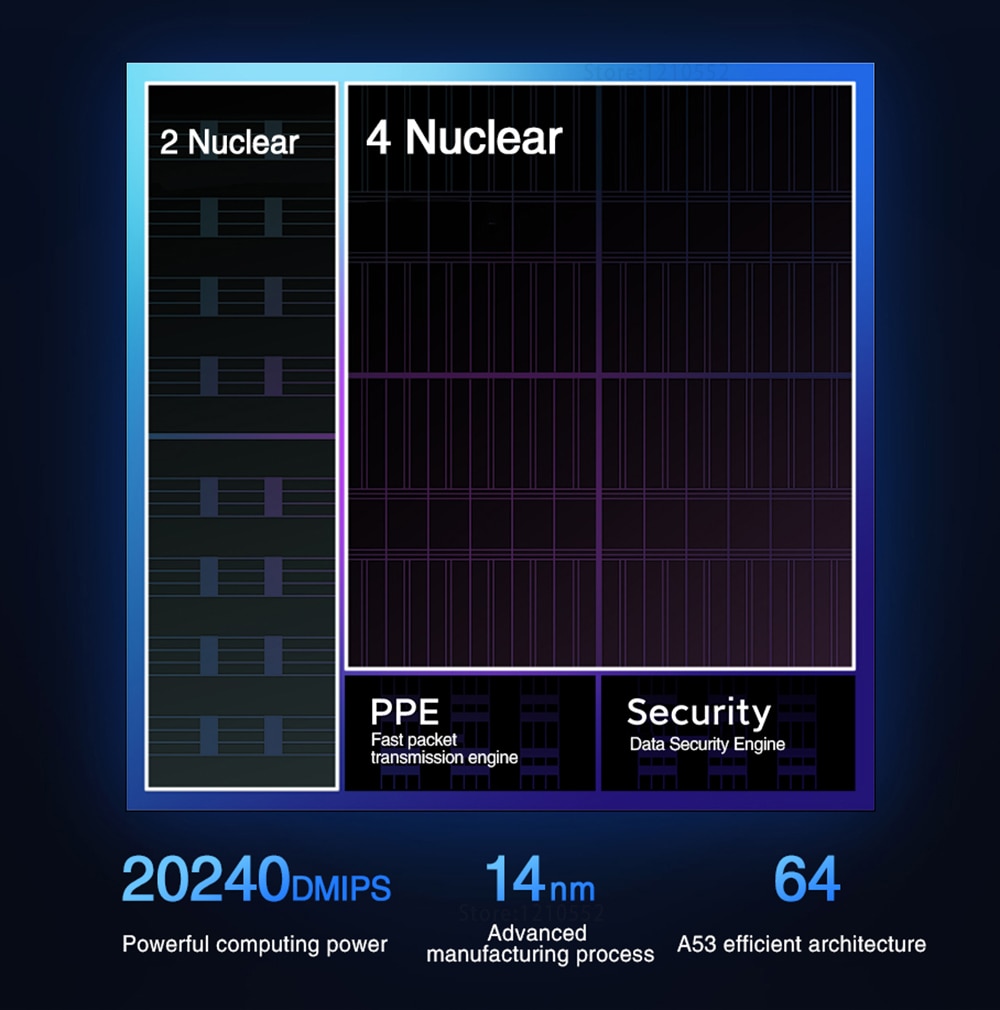

Qualcomm 6-core flagship chip


Computing power MAX, combat power MAX.

Equipped with Qualcomm's 4-core 2.2GHz CPU + 2-core 1.7GHz NPU (Network Acceleration Engine), the flagship chip is designed for efficient data forwarding and responds to the stringent requirements of e-sports networks.

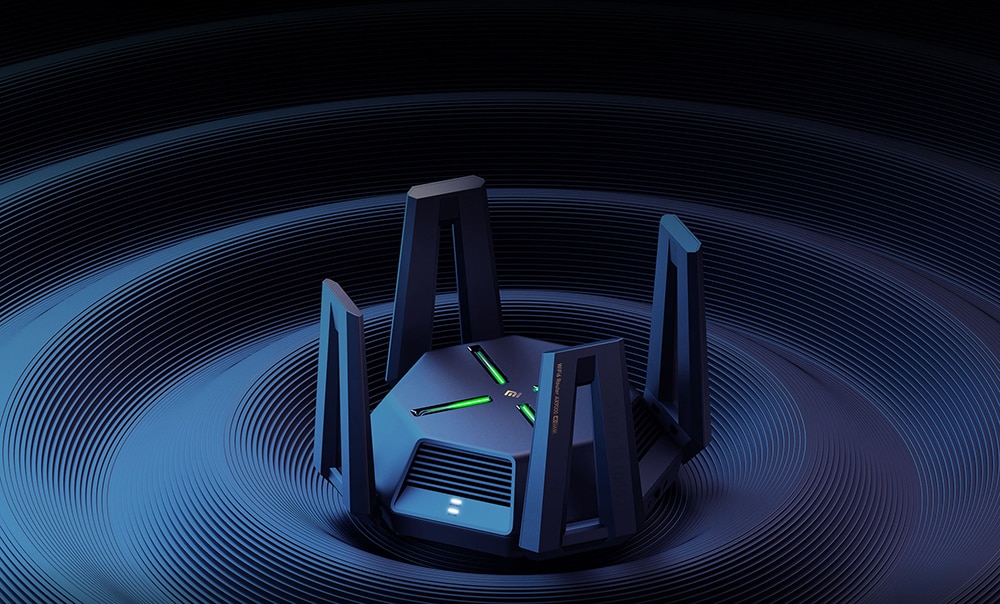

12 independent signal amplifiers

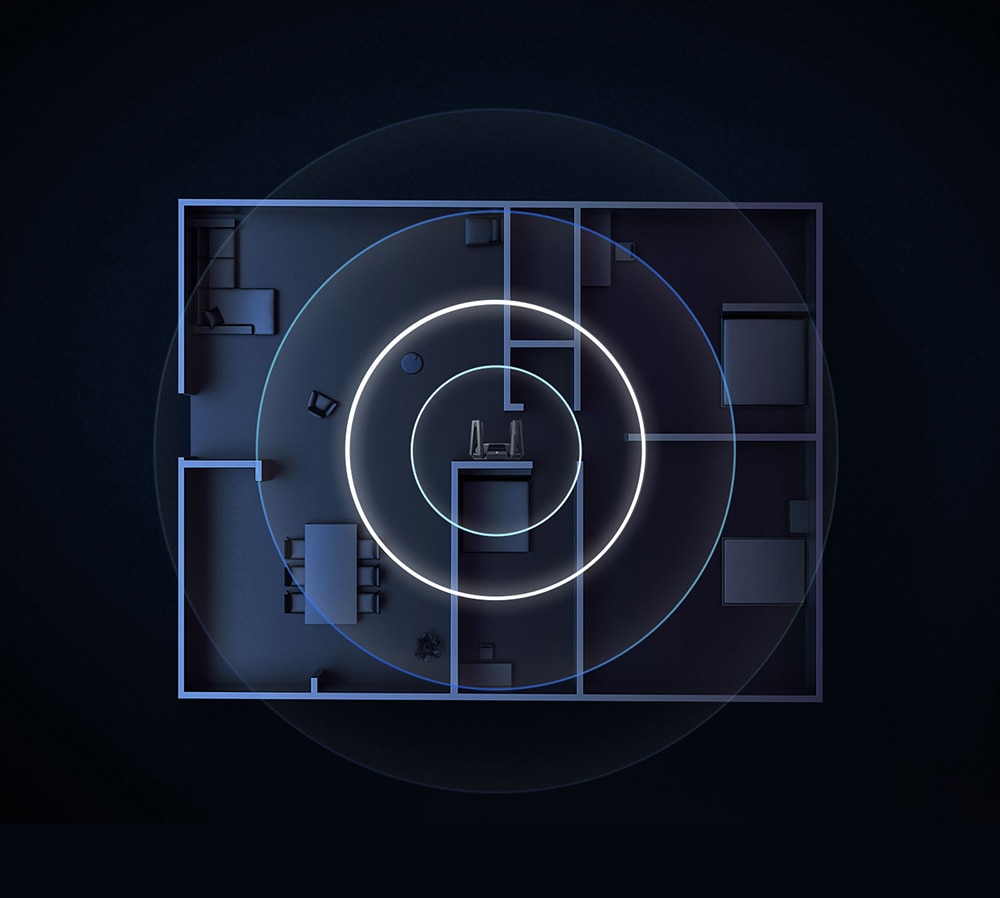

Stadium-level strong signal coverage

The independent signal amplifier can effectively enhance the signal transmission power and at the same time improve the signal receiving sensitivity. Super wall penetration effect, covering more rooms.

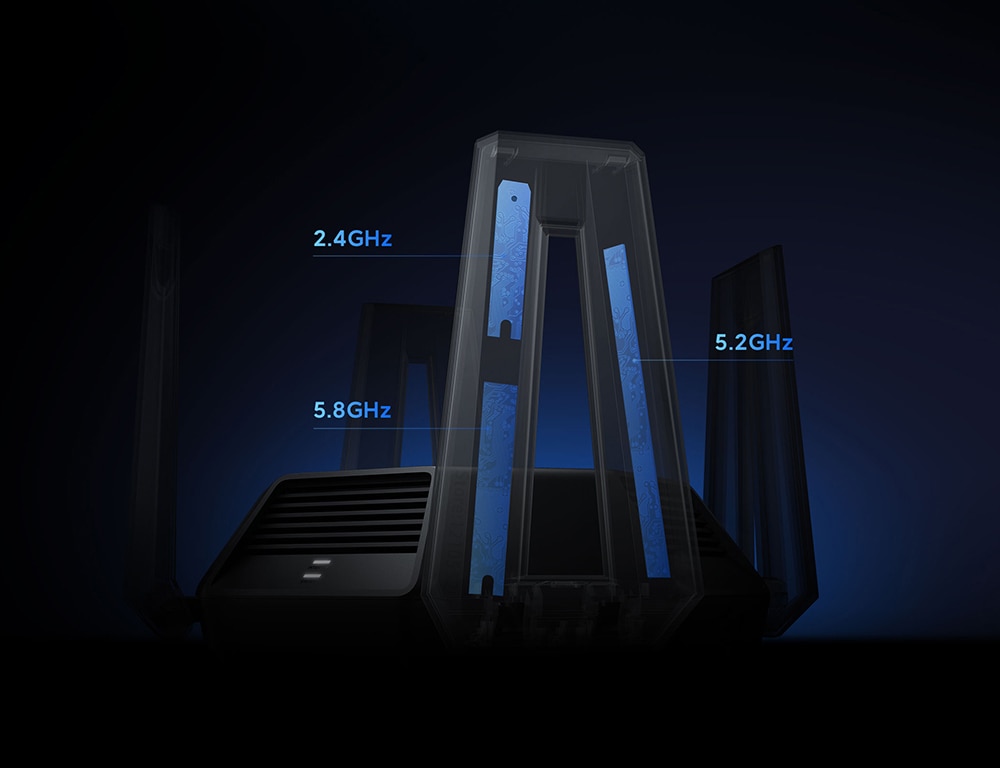

12 high gain antennas


Each antenna group contains three high-gain antennas, 2.4GHz, 5.2GHz, and 5.8GHz, to provide wider signal coverage.

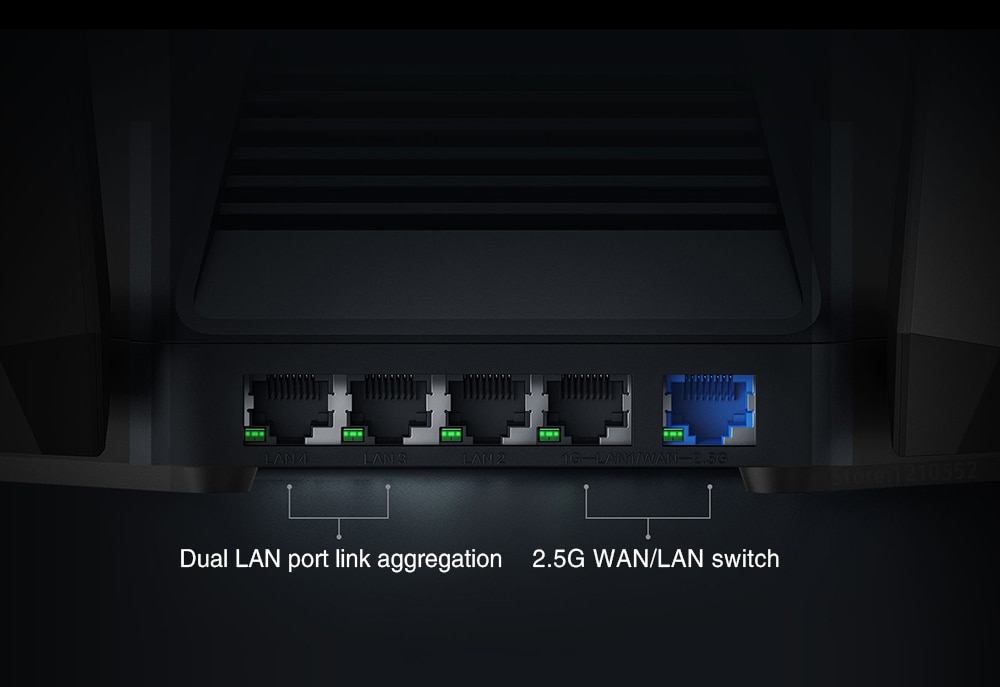

2500Mbps dedicated network port for gaming


Wired devices can also enjoy gaming-grade high-speed networks, and also support dual gigabit LAN port link aggregation to meet high-speed intranet transmission.

1GB large memory


It supports simultaneous connection of 1000 devices, which is all satisfied with smart home, audio and video entertainment, and multiplayer games.

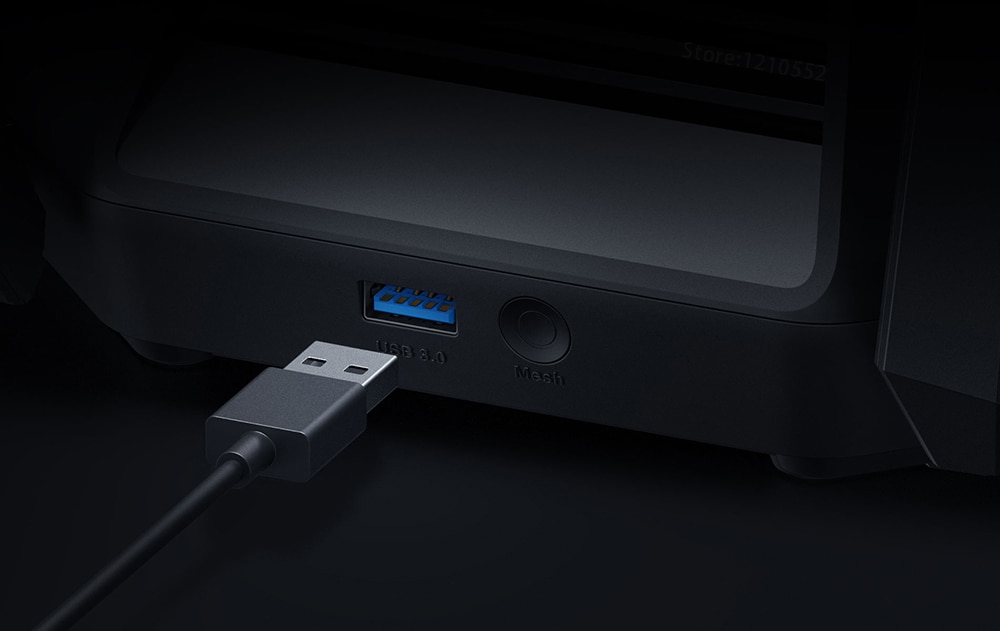

USB3.0 high-speed interface


Connected to the hard disk, the high-speed family private cloud disk can be changed in seconds. It supports SAMBA protocol, and mobile phones, TVs, and PCs can be quickly accessed within the local area network.

E-sports exclusive deep optimization


Multi-platform comprehensive acceleration

Global game acceleration


In-depth cooperation with NetEase UU accelerator, global dedicated line connection, support for multi-platform games such as PS, Xbox, Switch, PC, and mobile phones, and provide e-sports-grade low-latency network.

Exclusive acceleration for Xiaomi devices


Intelligently recognize your Xiaomi/Redmi mobile phone, open exclusive acceleration channels in game scenarios, and significantly reduce game delays and freezes.

Interstellar fortress


Designed for professional players

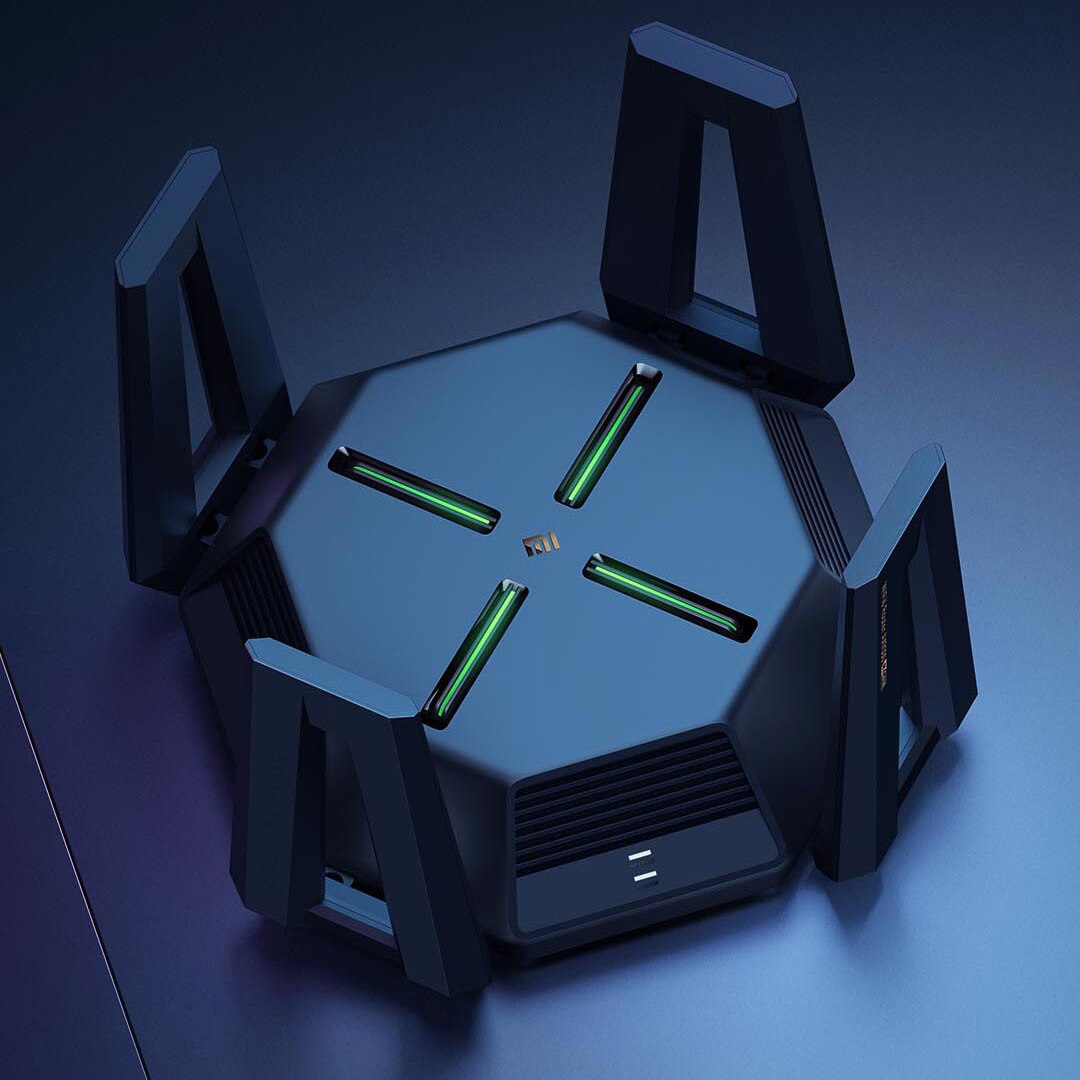

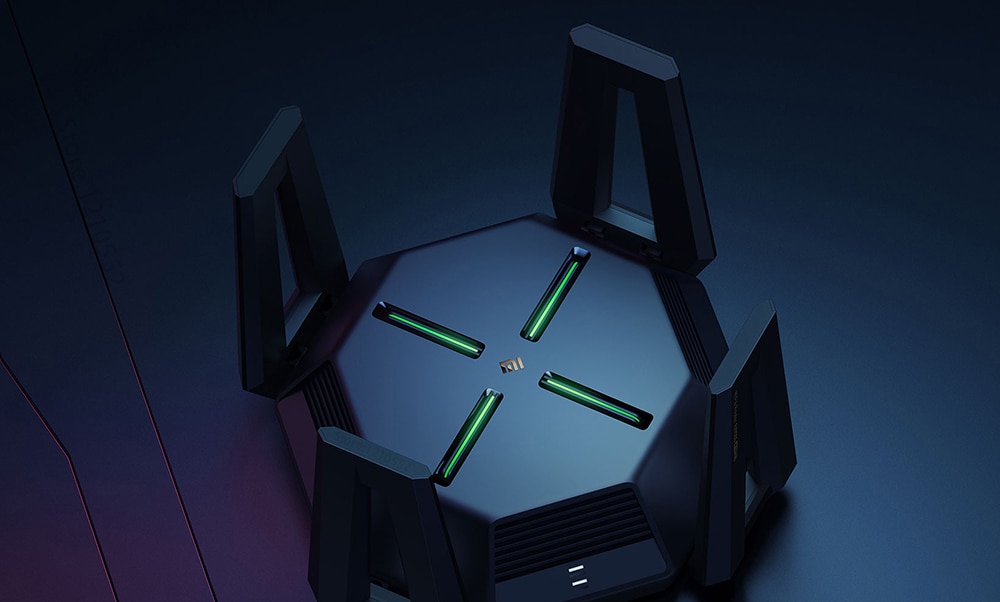

Custom gaming lighting effects


16 million color X-type ambient light, you can set the light color you like, and it also supports 5 light effect modes such as breath, rainbow, and stars.

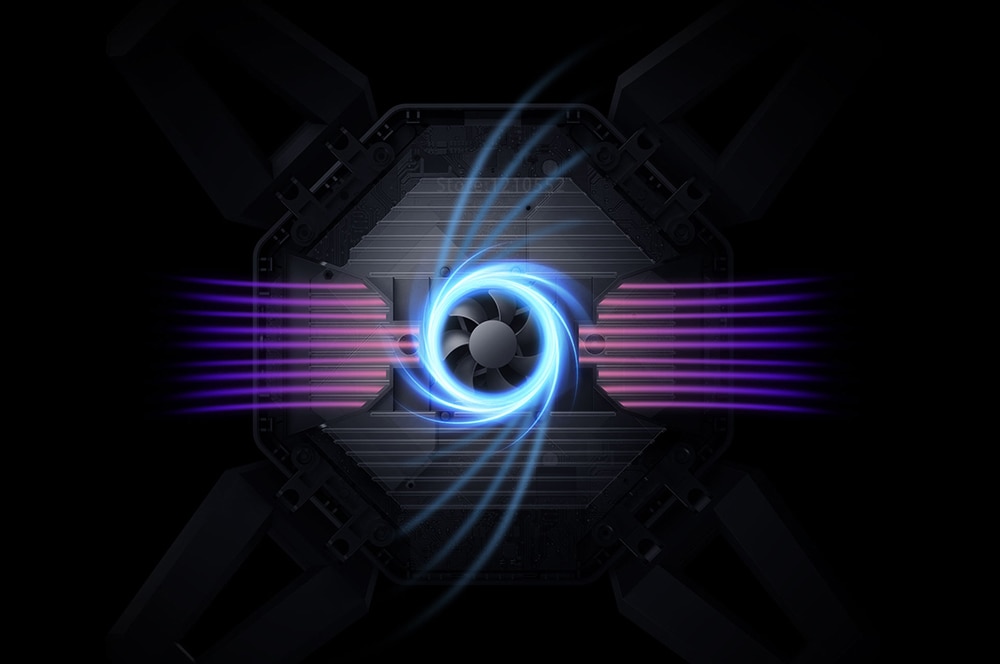

Active cooling


Professional thermal simulation design of the air duct, with ultra-quiet fan. Automatically adjust the fan speed according to the temperature, quiet and silent at night, and efficient heat dissipation during fierce battles to ensure stable performance.

One-click connection


Build a whole house intelligent network

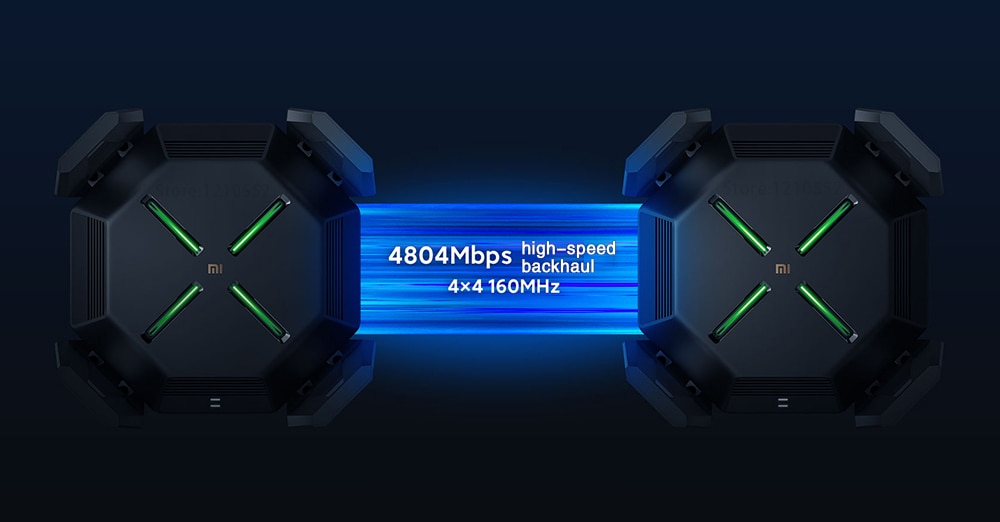

Tri-band Mesh networking


One-click configuration of the Mesh network, exclusive backhaul frequency band, no speed loss in networking

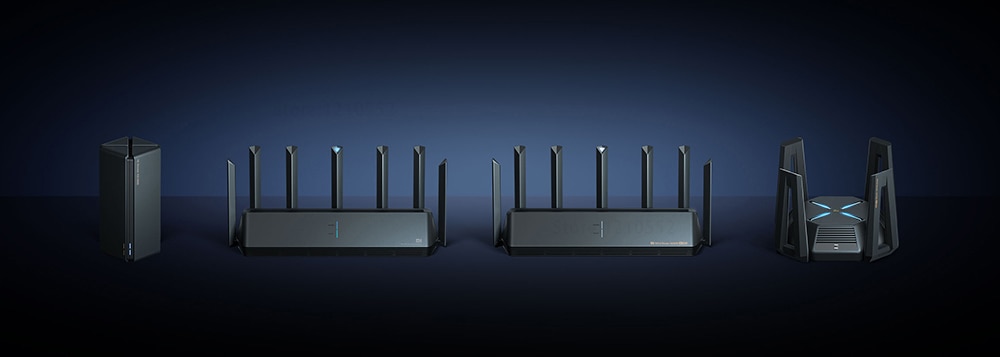

WiFi6 Mesh hybrid networking


Supports networking with other models of Xiaomi WiFi6 routers, up to 10 units, no dead angle coverage in the whole house

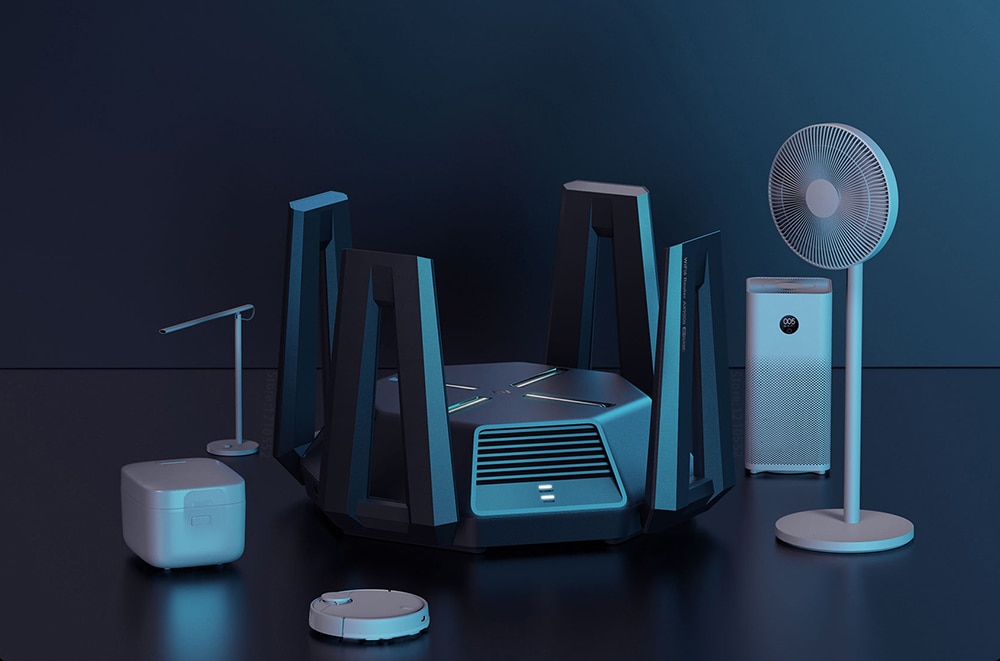

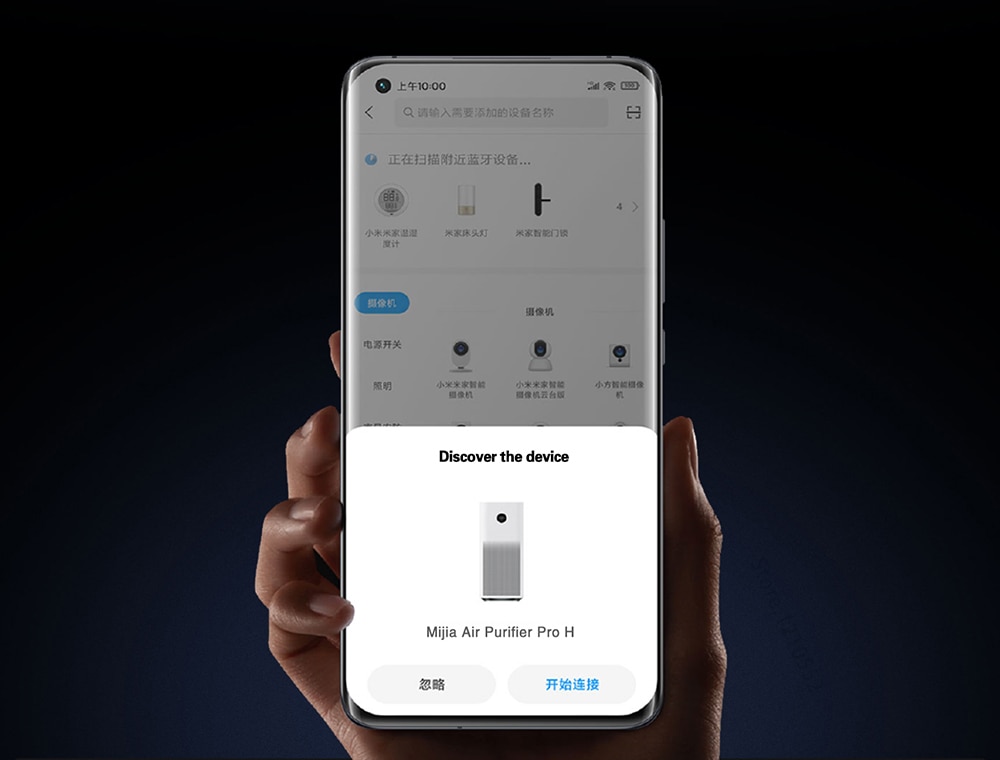

Automatic device discovery, one-click network configuration


The independent AIoT antenna can automatically discover the smart devices around you, without having to enter a password, and configure it to access the network with one key.

Have more expertise


Professional test, Xiaomi brand quality

Package Contents


router / Instructions for use / power cable / cable







We have Europe & Russia & South Korea & United Kingdom & Brazil & United States Local Warehouse:
If you want fast delivery, Please choose "Shipping from Local Warehouse", you will enjoy the local service, This is free shipping.(The goods have passed through customs to the local warehouse, and the store seller has paid customs tax.)


Warranty:

We guarantee that all products are brand original and brand new.

We offer two year official warranty for all electronic product, If there is any damage, You can send the product to the nearest repair center, Or we will send you free parts, you can install them easily by yourself (Please be assured that we will send you the installation video), But if it is damaged by human factors, or if it is destroyed by external forces, you need to pay extra repair fees.

Any after sales service if you need, please contact us via Facebook or VK. @tookfun


Return Policy:

According to the rules, the product has 15 days no reason to return policy, if you don't like the product, please tell us the reason, you can return it and get a full refund.

We guarantee satisfactory service for honest and reasonable buyers.



Shipping Time And Customs From China:

When you choose the goods to be shipped from China, We will use the best shipping method to ship the product, 3-10 days in East Asia, 7-15 days in Europe, 10-15 days in North America, 12-20 days in South America, 7-15 days in Australia.

Buyers are responsible for custom taxes, If you have special requirements for customs declaration value, please contact us and leave a message when you place the order. (For European countries, our store will pay customs tax)



Contact Us & Feedback:

If your product has any problems, broken, quality problems, please don't worry, and please don't leave bad feedback. Please send us an email first, we will reply to you as soon as possible, please allow us to respond within 12 hours.

We understand your mood and will provide the best solution for you, please give us the chance to solve the problem. In any case, please feel free to contact us, we are always here.

Our goal is to make sure you have a happy shopping experience and pleasant shopping with us.

If you are satisfied with our service, please leave us positive feedback and rate the details of the transaction (Detailed Seller Ratings) with a "PERFECT 5 stars". Your recognition will make us more confident to develop business and serve you better.

Look forward to and thank you for your trust.



About TookFun:

TOOKFUN Store is a quality shopping store, Our belief is to adhere to high-quality products, fast and courteous service, best prices, help dear buyers quickly find the ideal product, reduce the difficulty of choosing the product.

We hope to spread health and smart to more families, increase your family's happiness,

enjoy your better life and enjoy your time.

We look forward to your order, this is trust and responsibility, we will defend it.

Thank you very much.

If you like our products, please add our shop to your "My Favorites" list.



We will send the correct plug adapter or conversion plug for your country.
EU Plug Adapter (2 Pin Round Pin)
Most Europe Countries,Most African Countries,Most Middle East Countries,South Korea,Chile,Paraguay,etc.
US Plug Adapter (2 Pin Flat Pin)
United States,Canada,Most North and South American Countries,Japan,Philippines,Thailand,etc.
Australia/New Zealand (2 Pin Plug Adapter)
Australia,New Zealand,Argentina
UK Plug Adapter (3 Pin Flat Pin)
England,Ireland,Scotland,Hongkong,Pakistan,Singapore,Malaysia,Vietnam,etc.




  • Number of USB Interfaces: 1 x USB 3.0
  • Function: Firewall
  • Package: Yes
  • Standards And Protocols: Wi-Fi 802.11g
  • With Modem Function: Yes
  • Type: WIRED
  • Brand Name: XIAOMI
  • Origin: Mainland China
  • Certification: NONE

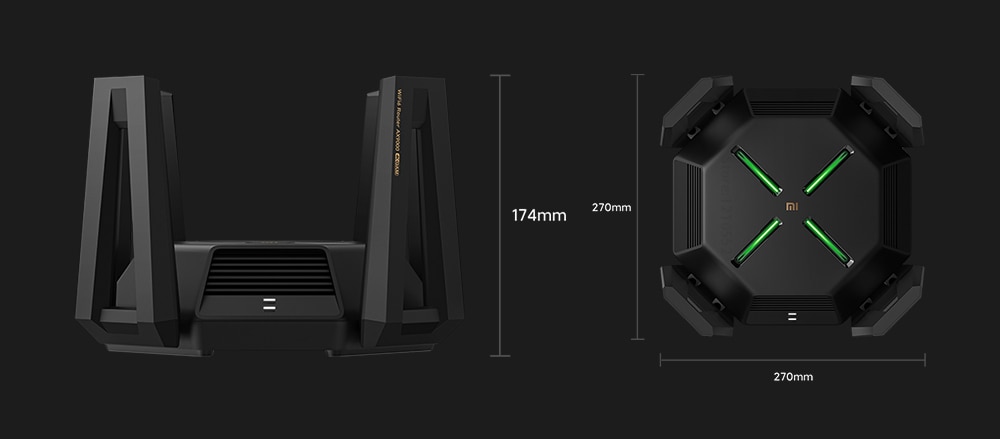

  • Product Size: 270*270*174mm
  • processor: Qualcomm IPQ8072A 4-core A53 2.2GHz CPU
  • Network acceleration engine: Dual-core 1.7GHz NPU
  • RAM: 1GB
  • 2.4G Wi-Fi: 4*4 (the theoretical maximum rate can reach 1148 Mbps)
  • 5.2G Wi-Fi: 4*4 (the theoretical maximum rate can reach 4804 Mbps)
  • 5.8G Wi-Fi: 4*4 (the theoretical maximum rate can reach 2402 Mbps)
  • Product Antenna: External high gain antenna + built-in AIoT antenna
  • Mesh networking button: 1
  • Protocol standard: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
  • Management application: Support Web, Android, iOS
