Qixiang Din Rail Industrial Wireless 4g Celullar Router with Sim Card Slot for IoT M2M Application
0.0 ( votes)
Price:
US $461.58
/ piece
Discount Price:
US $
240.75
/ piece
-48%
- Ships From
- Color
-
-

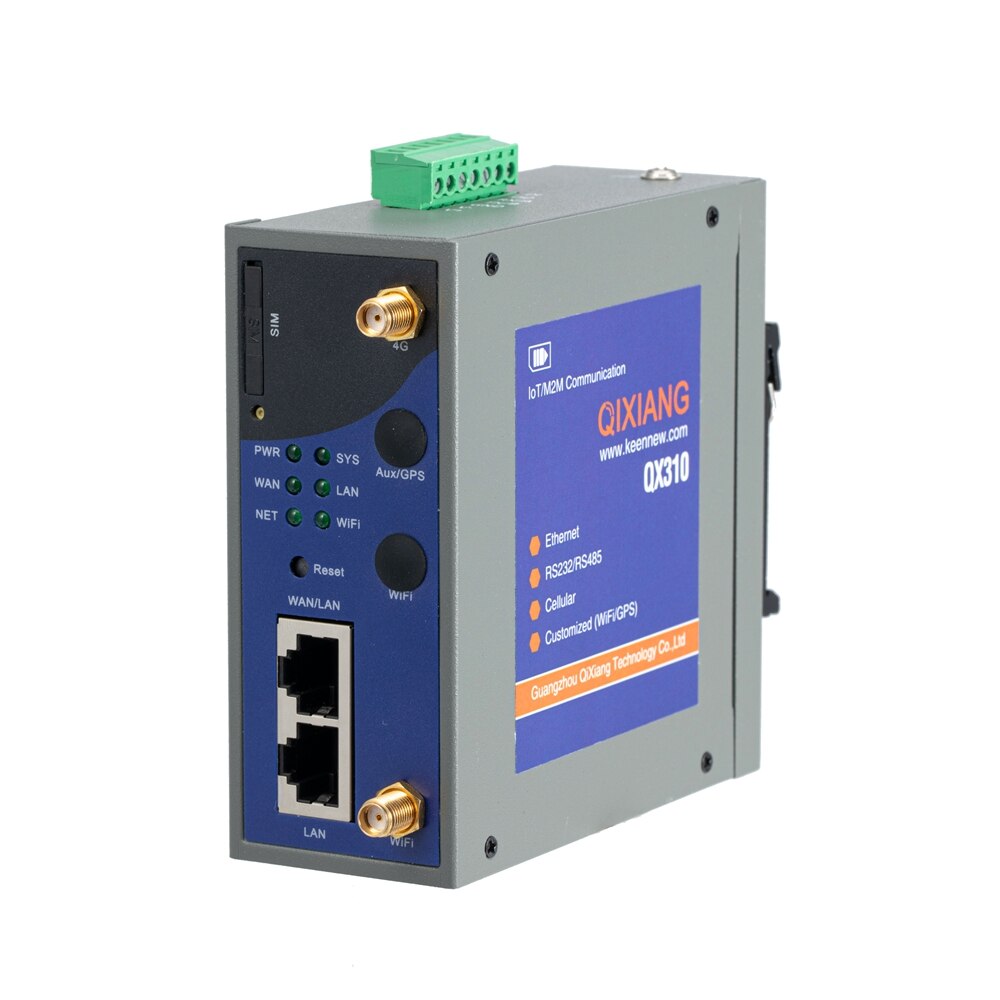

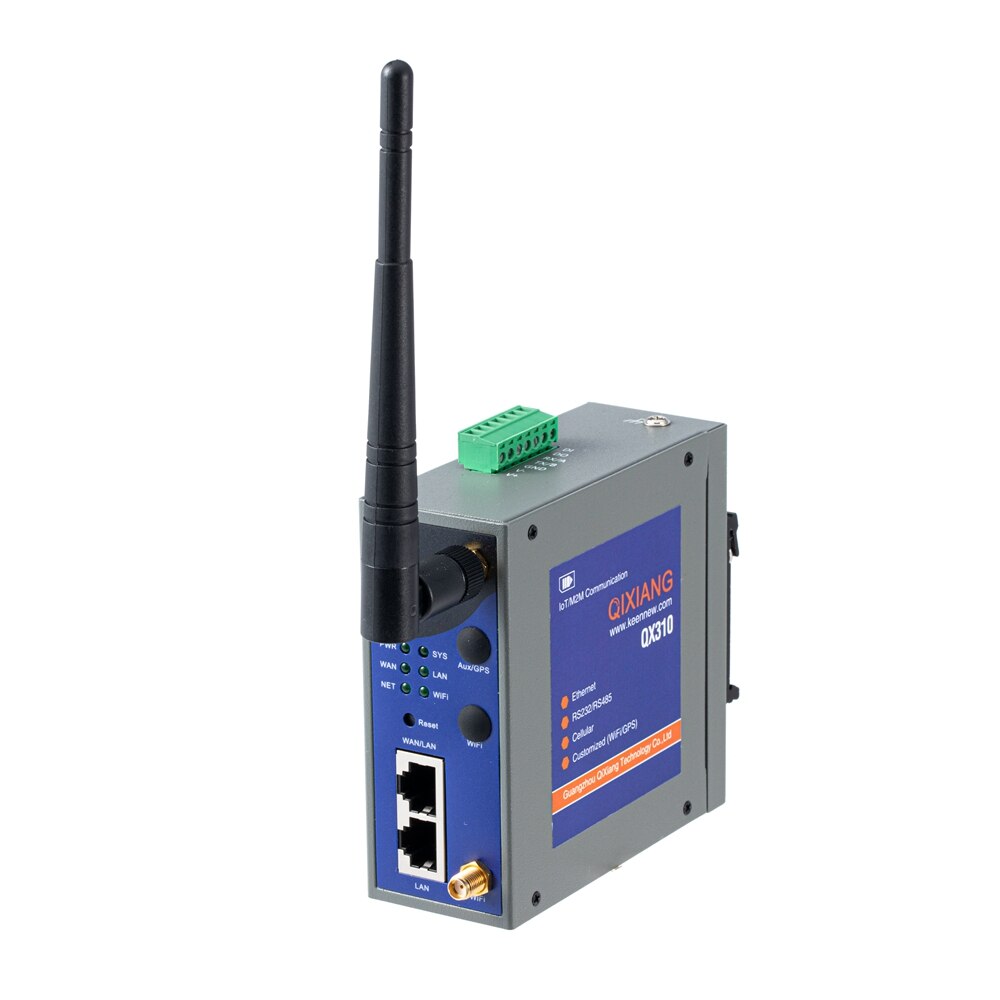

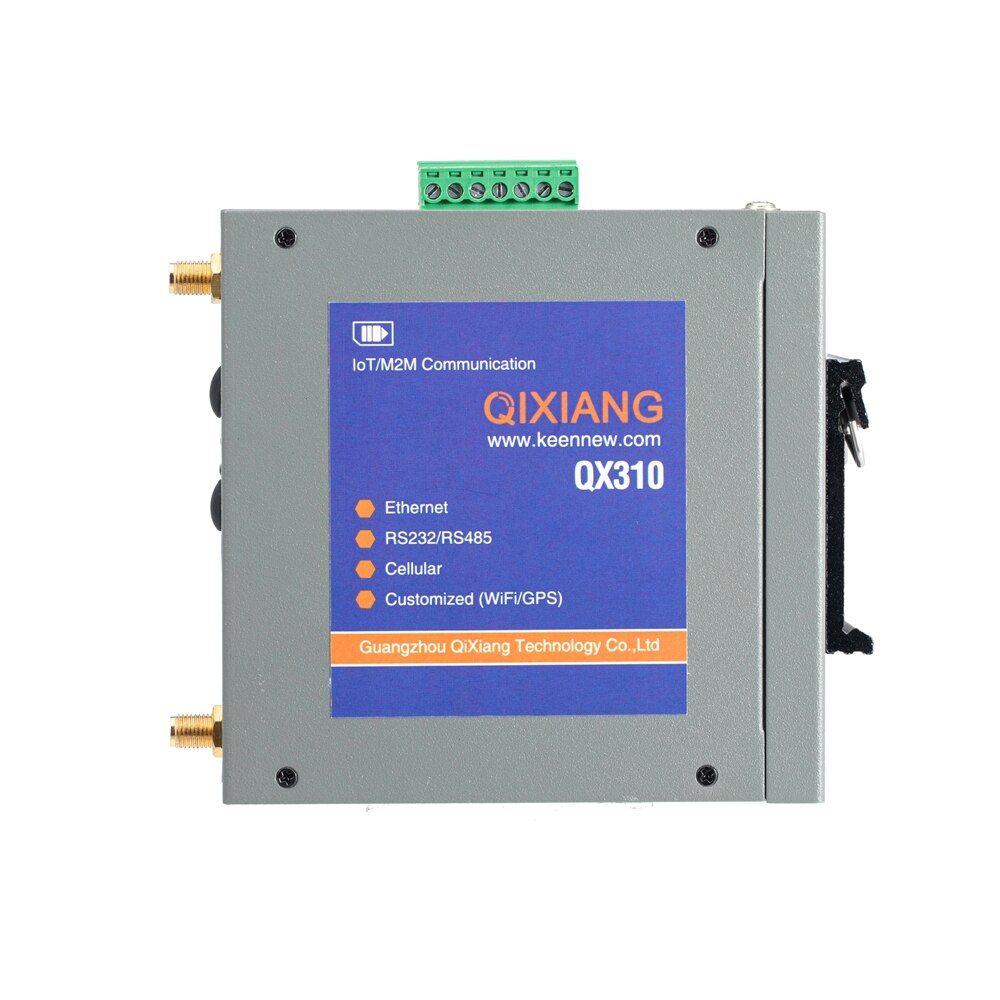

M2M IoT Industrial Grade 4G/3G Cellular Gateway Router
QX310 is highly reliable and secure LTE router for professional applications. Router delivers high performance, mission-critical cellular communication.

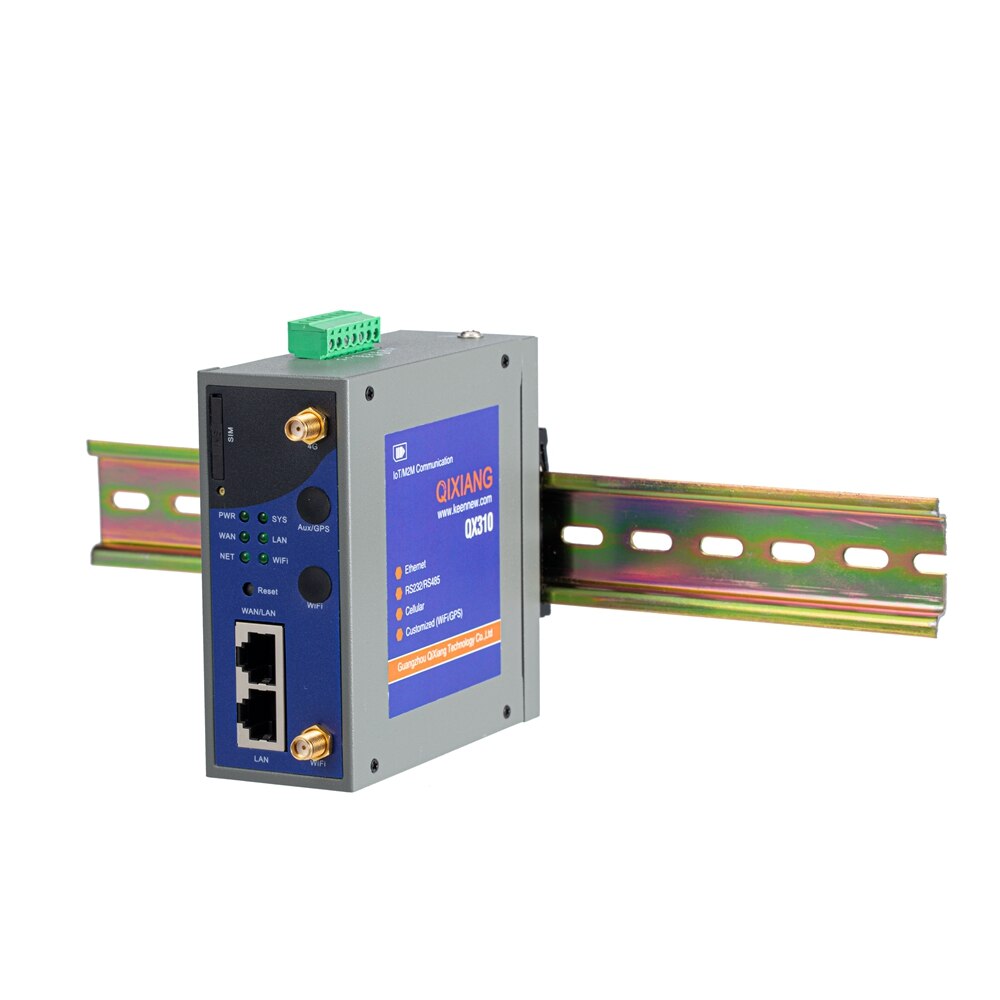

QX310 is equipped with connectivity redundancy through Cellular, Wan and WiFi failover. External antenna connectors and Din rail mount slot make it possible to attach desired antennas and to easily find the best signal location in industrial environment.
// QX310 is a compact, cost-effective, and secure industrial 4G Wi-Fi router for professional M2M & IoT applications.
// It delivers high performance for industrial cellular communication in harsh and hazardous environments.
// Equipped with two Ethernet ports, an external SIM holder, Serial port (RS232/485), Din rail mounting slot and signal strength status LEDs, it is easily deployed and managed.
// This router is compatible with our Remote Management System (RMS) and offers safety features, like Failover, Firewall, VPN, IPsec, and FOTA support.
Order Model
1. This product support "4G+Ethernet+WiFi", and it adopt Cellular Frequency Bands and power adapter of your shipping address' country. (if you have special band requirement, please contact us)
2. This router provide a serial port(use for serial data transfer), you can select RS232 or RS485 in the "Color" model. If you don't need serial port, just select RS232.
Super Reliable Performance
This product works super reliable. It continuously connect with 4G LTE network to provides internet to clients' project devices for more than 425days without breakdown in harsh environment, it helps clients save a lot of time/money/energy.
Feature
Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, high EMC level, wide operating temperature range, serial interface RS232/485, VPN function. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment.
Desktop and din rail mount installation, it is able to build a security, stable and reliable network of terminals from everywhere. Adopt wired/WiFi/4G network connection, make it non-restricted by wired network, easy to deployment with time and cost efficiency, providing technical guarantee of data wireless communication transmission.
Router supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc., Make sure the security and accuracy of data transmission and management.
Strong WDT, self-recovery, schedule reboot function, keeping always online. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment.

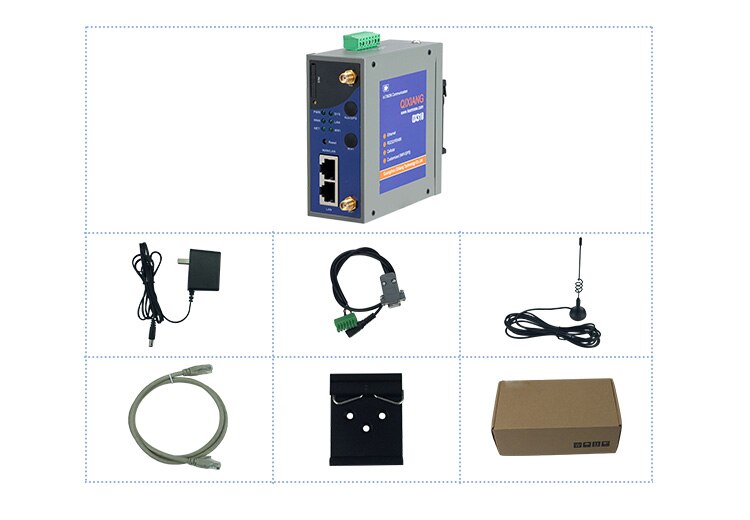

Packing List
Specification

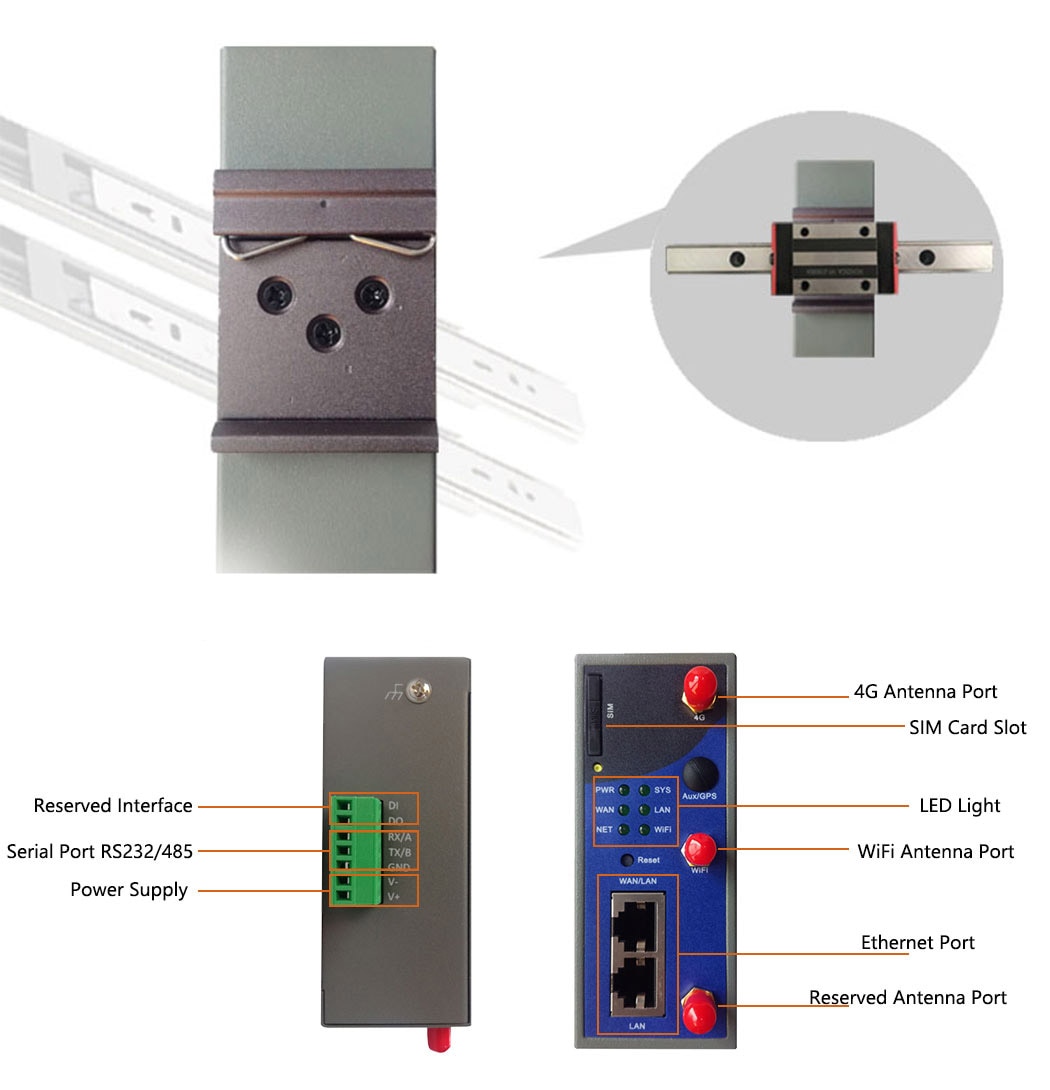

1. Interface: Ethernet Port (1 WAN, 1 LAN, RJ45), Serial Port (RS232 or RS485), One Sim Card Slot , Antenna (WiFi & Cellular).
2. Hardware: 560Mhz CPU, 16MB Flash, 128MB RAM.
3. Dimension: 102×100×41mm; Weigh: 355g.
4. Support low-consumption mode, including sleep mode, scheduled online/offline mode
5. Metal housing, excellent heat dissipation
6. Desktop or Din Rail Mount, Protection degree IP34(Max IP51)
7. Wide voltage:7.5V~32V DC(Max36V)
8. Hardware and Software WDT and multi-link detection make it self-recovery from unexpected failure and guarantee reliable communication
9. Port ESD protection, avoid Static Electricity Shock
10. LED indicators display the status of Wireless network signal
11. Support APN and VPDN private network access
12. Multiple VPN clients: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE
13. Serial port offer Data Transfer Unit(DUT) function and support Modbus protocol
14. Support QOS, UPnP protocol, Port forwarding
15. Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE
16. Failover, Backup and Load balance between WAN and Cellular network
17. Always keep online, reboot automatically if disconnected to ensure continual connection
18. Support DHCP, DDNS, Firewall, NAT, and DMZ host
19. Support ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol
20. Support standard industrial grade SIM/UIM card
21. Support scheduled reboot, Remote Management System.

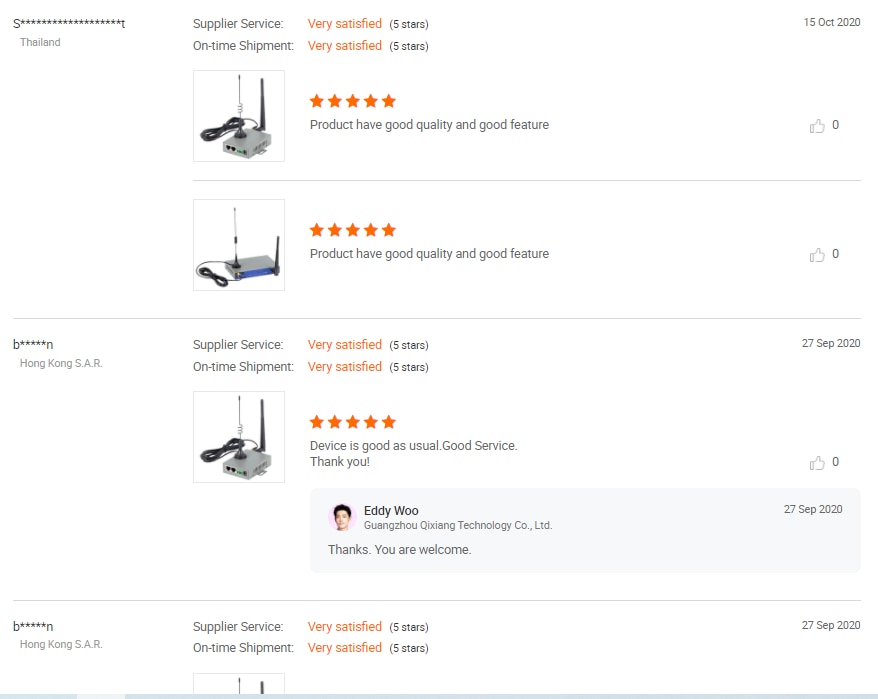

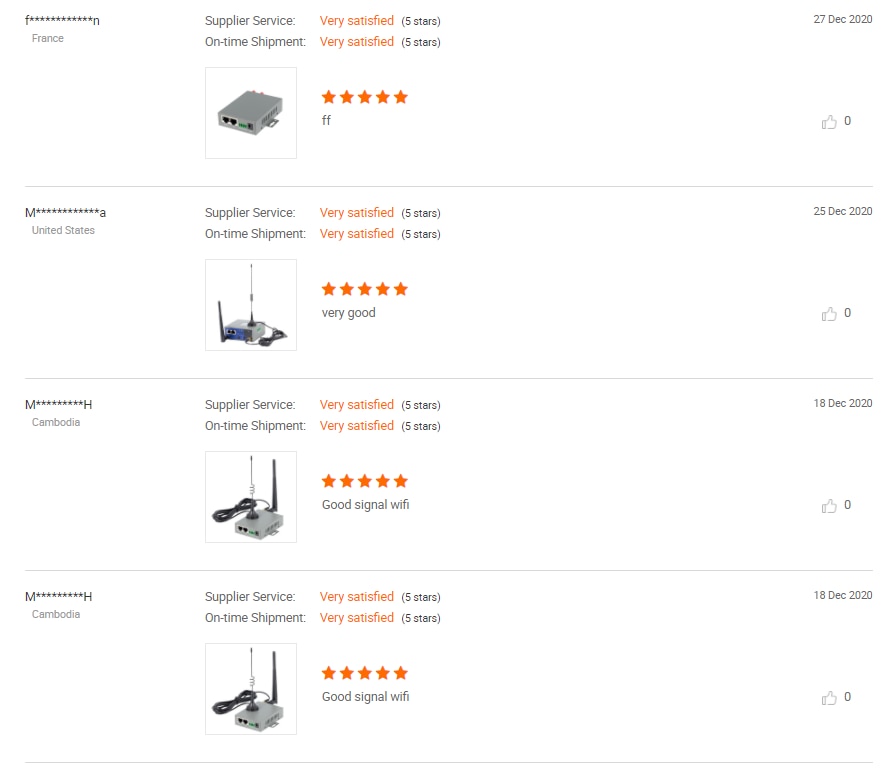

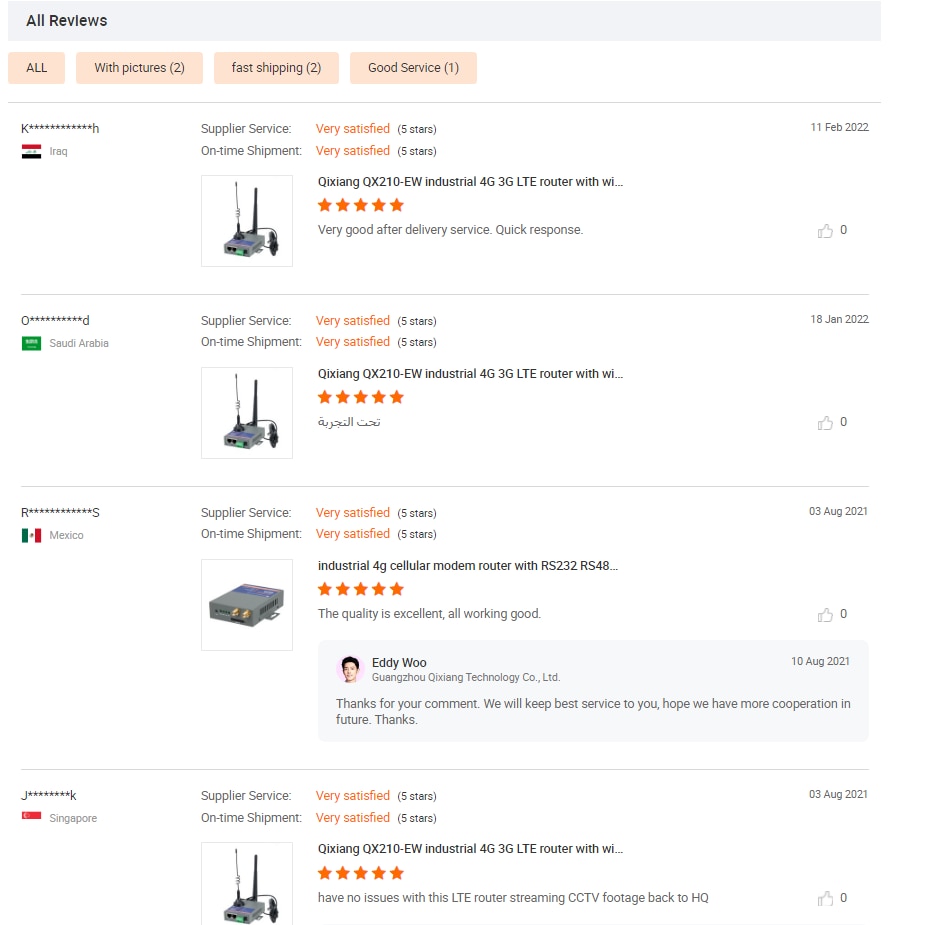

Customer Comments
Contact Us
www.keennew.com
sales@keennew.com
- Wireless Security: WEP/WPA/WPA2
- Antenna Peak Gain: 3dBi
- Networking Protocol: IEEE 802.11a/b/g/n
- Built-in Firewall: Yes
- Supports VPN: Yes
- Network Type: 4G/3G
- Wi-Fi Transmission Standard: 802.11b,802.11g,802.11n
- 2.4G Wi-Fi Transmission Rate: 150 Mbps
- Wi-Fi Supported Frequency: 2.4G
- Supports WPS: Yes
- Supports WDS: Yes
- Max. LAN Data Rate: 150Mbs
- LAN Ports: 2
- Model Number: QX310 Series
- Wifi Frequence: 2.4G
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE,RoHS
- Applications: IoT, M2M, Industrial Automation, Smart City, Vending Machine
- Dimension: 102*100*41mm
- Interface: 1 LAN /1 WAN, 1 Serial RS232/RS485
- VPN clients: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE
- Protocol: SNMP, ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS
- Modbus: Modbus TCP, Modbus RTU, Transparent Transmission, Pass Through
- Functions: QOS, Port forwarding, DHCP, DDNS, Firewall, NAT, DMZ host, DTU
- Brand Name: Qixiang
- Wide voltage: 7.5V~32V DC(Max36V)
- Operating Temperature: -30 to 75°C
- Certification: CE, CCC, RoHS
- Network: 4G/3G, FDD-LTE, TDD, WCDMA, UMTS, GSM, GPRS
- Support region: Global, support frequency bands of your order shipping address
- Mount: Din Rail, Desk top
