RGEEK DC Input DC-ATX 120W 20pin Power Supply Module Switch Pico PSU Auto Mini ITX High DC-ATX power module ITX

5.0 (8 votes)
Price: US $35.28 / piece
Discount Price:
US $ 24.98 / piece
-29%
Rating Power
Quantity





Electrical Specifications of RGEEK-120P







High light:


120 Watt Output 12 Volt DC Input


Fanless design, 100% silent


20 pin ATX connector, Plugs directly into the ATX connector


Solid Polymer Caps on the PCBA, Long life.


Perfect DC PSU for mini ITX Motherboards






Description:


100% brand new and high quality

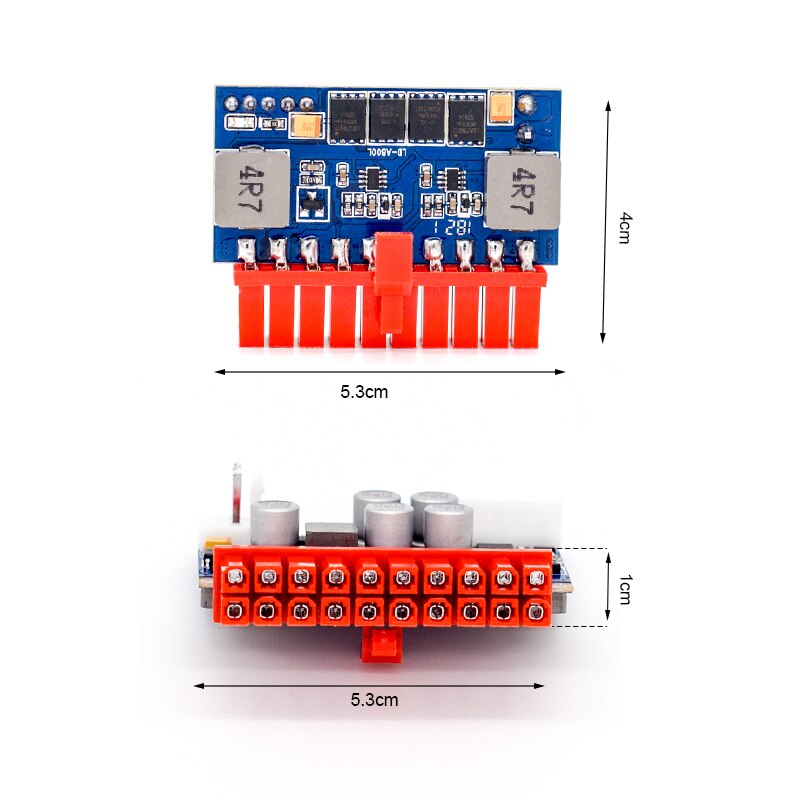

Size (L*W*H): 50mm*35mm*10mm(approx)

Adopt industrial solid capacitor, ideal for being used in harsh evironment

High performance with high heat-stand feature, more reliable

Without fan for 100% mute working

Compact design, special for mini-itx and 1U case

Modules can reach 120W, and it must be accompanied by the power adapter











Specifications:


Input voltage: +12V/DC(11.4-12.6V)


DC input: 2.5mm inner diameters, 5.5mm outer diameter


Input Current: Max. 10A


Output Power: 120W


Power Efficiency: > = 85%


Working temperature/humidity: 15℃ to 35℃ / 45%-75%


Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%


Atmospheric pressure: 86Kpa—106Kpa





Applications:


MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.





Package includes:

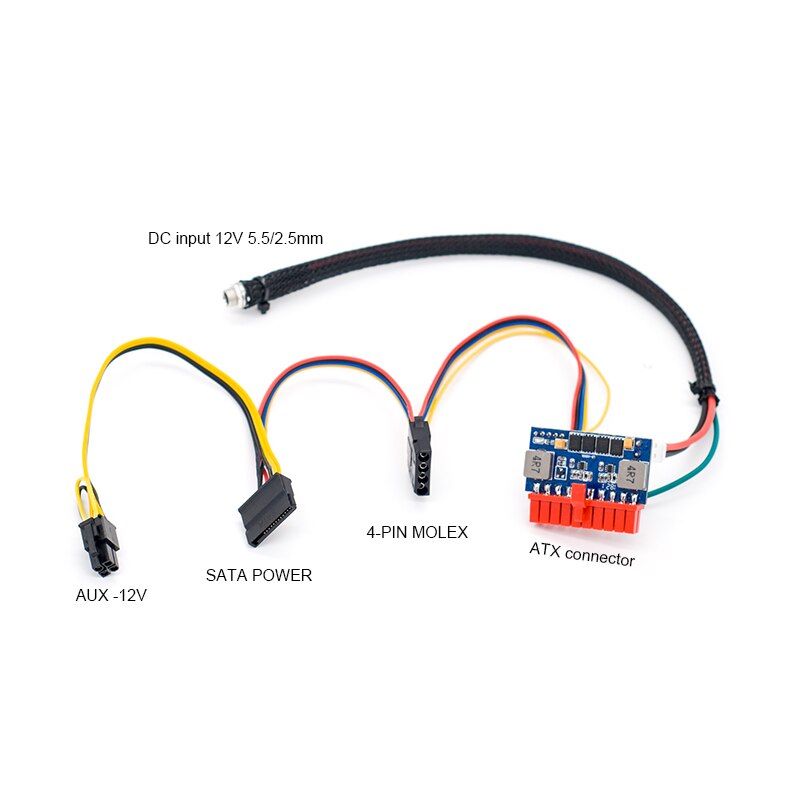

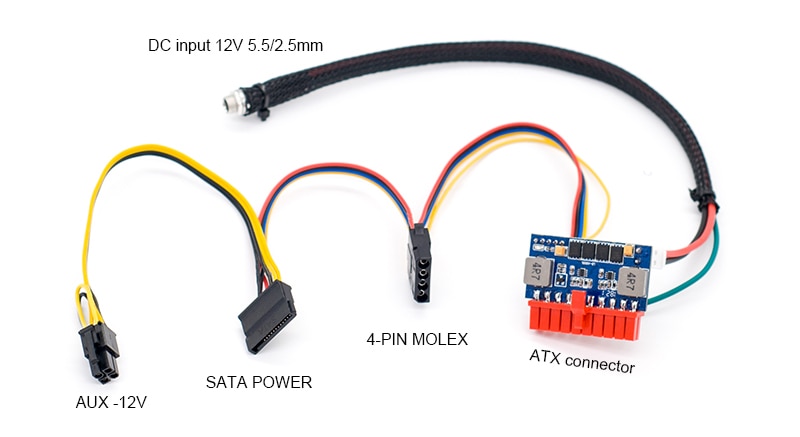

1 x DC-ATX 120W Module (with cable)






Five Groups of power output

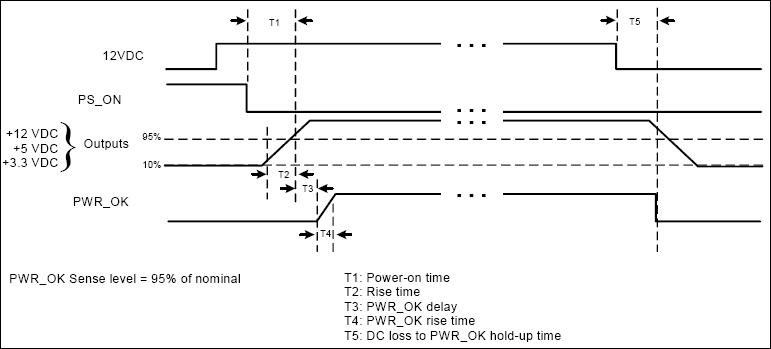

PSU timing sequence








Note:Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you

















  • PFC Type: Active
  • CPU Power Connector: 4 pin
  • Package: Yes
  • Interface Type: 24Pin
  • Application: Server,Desktop
  • Model Number: RGEEK-120P
  • Output: +3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
  • Input Voltage: 12V DC
  • Modular: Full Modular
  • 80 PLUS Certification: Other Certification
  • Brand Name: RGeek
  • Origin: Mainland China
  • Certification: NONE
  • D-type Bus Number: 1
  • Number of SATA Ports: 1
  • Rating Power: 90W
