SDI to HDMI Converter Audio Video BNC to HDMI Adapter HD 3G SDI to HDMI & DC 5V 1A Adapter for Monitor HDTV
4.8 (19 votes)
Price:
US $41.80 - 43.70
/ piece
Discount Price:
US $
31.35 -
32.78
/ piece
-25%
- Color
-
-
Item Description

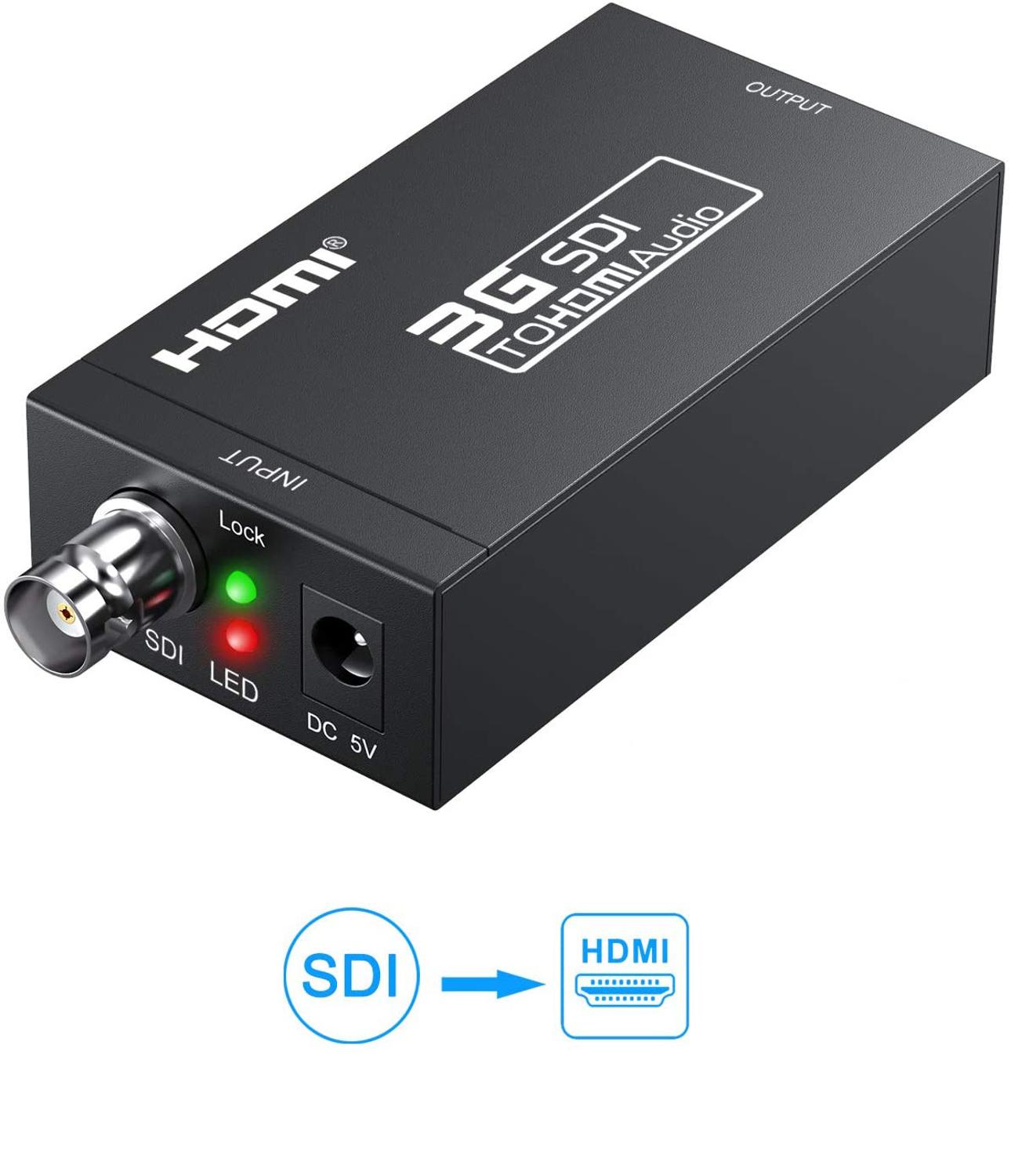

The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI dispaly while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss.For professionals this means that it is now easier to distribute and extend your SDI signal while giving you the ability to display your work on HDMI displays because of the built in HDMI converter.
NOTE: Do not support SD-SDI signal(480i and 576i), Do not support sony and Blackmagic device. Please try to check and adjust the resolution of your device.
Features
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s
2. Support SMPTE 425M(Level A) SMPTE 292M, SMPTE 259M-C
3. Intergrated audio de-embedder for a maximum of 8 channel, 48kHZ audio
4. Auto video mode(3G/HD)
5. Conversion from SMPTE 425M level A 1080p(50/60Hz)
6. Connect with other units to extend your signal over long distances
7. Support signal transmission distances of up to 200M for HD signals and 100M for 3G signal
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
Specification
SMPTE Standard:425M Level A, 424M 292M, 259M-C
SDI Transmission Rates: 2.970Gbit/s and 2.970/1.001Gbit/s
Frequency Bandwidth: 225MHz/link(HDMI 1.3)
In/Output Support Resolution:720p(50/60Hz), 1080i(50/60Hz), 1080p(24/25/30/50/60Hz)

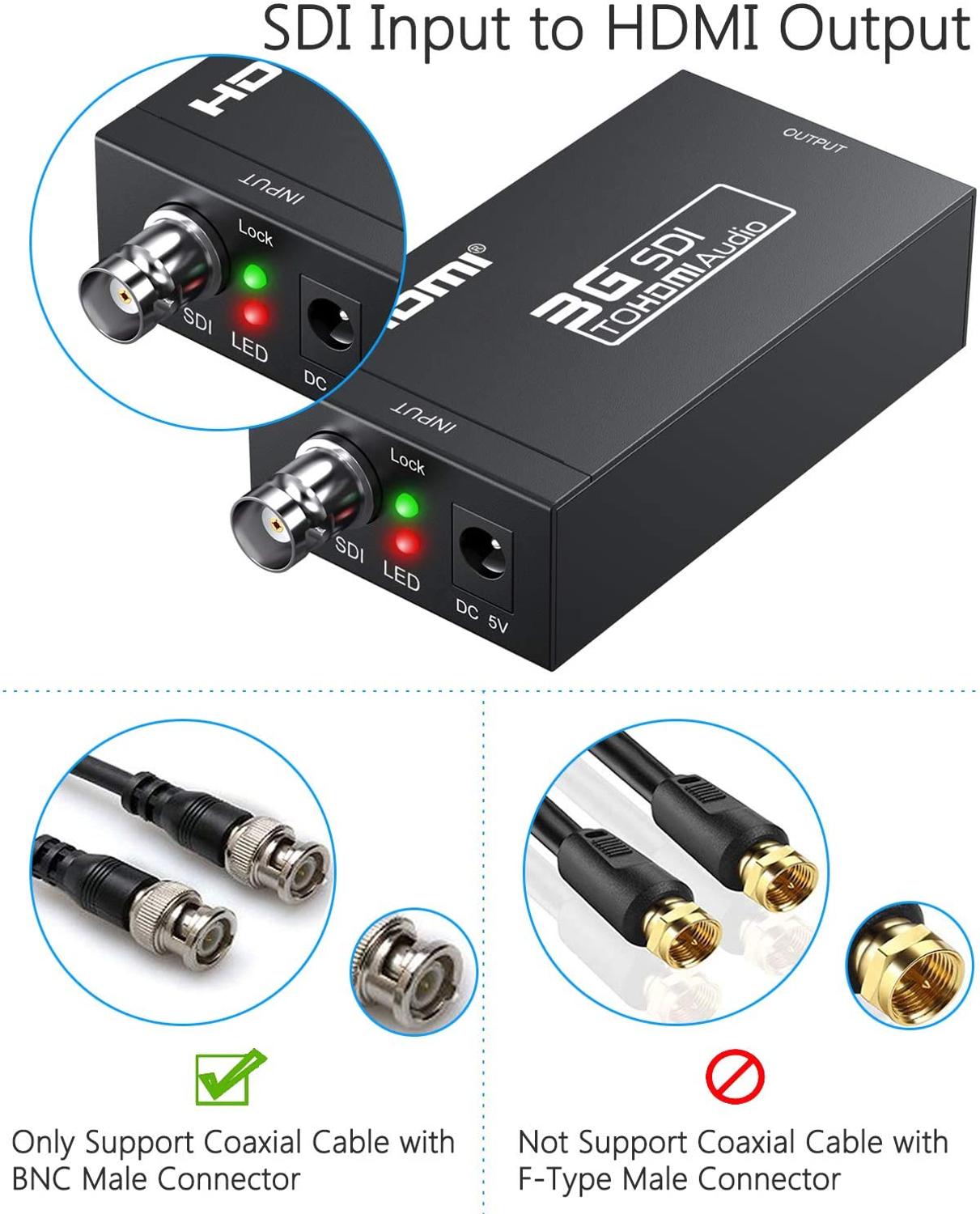

Input Port:1x BNC(HD-SDI/ 3G-SDI)
Output port：1x HDMI
Power Supply:5V DC/1A
SDI Cable Distance:3G up to 100M(BELDEN 1694A), HD up to 200M(BELDEN 1694A)
Dimension(mm):100(W)X65(D)X25(H)
Weight(g):250g

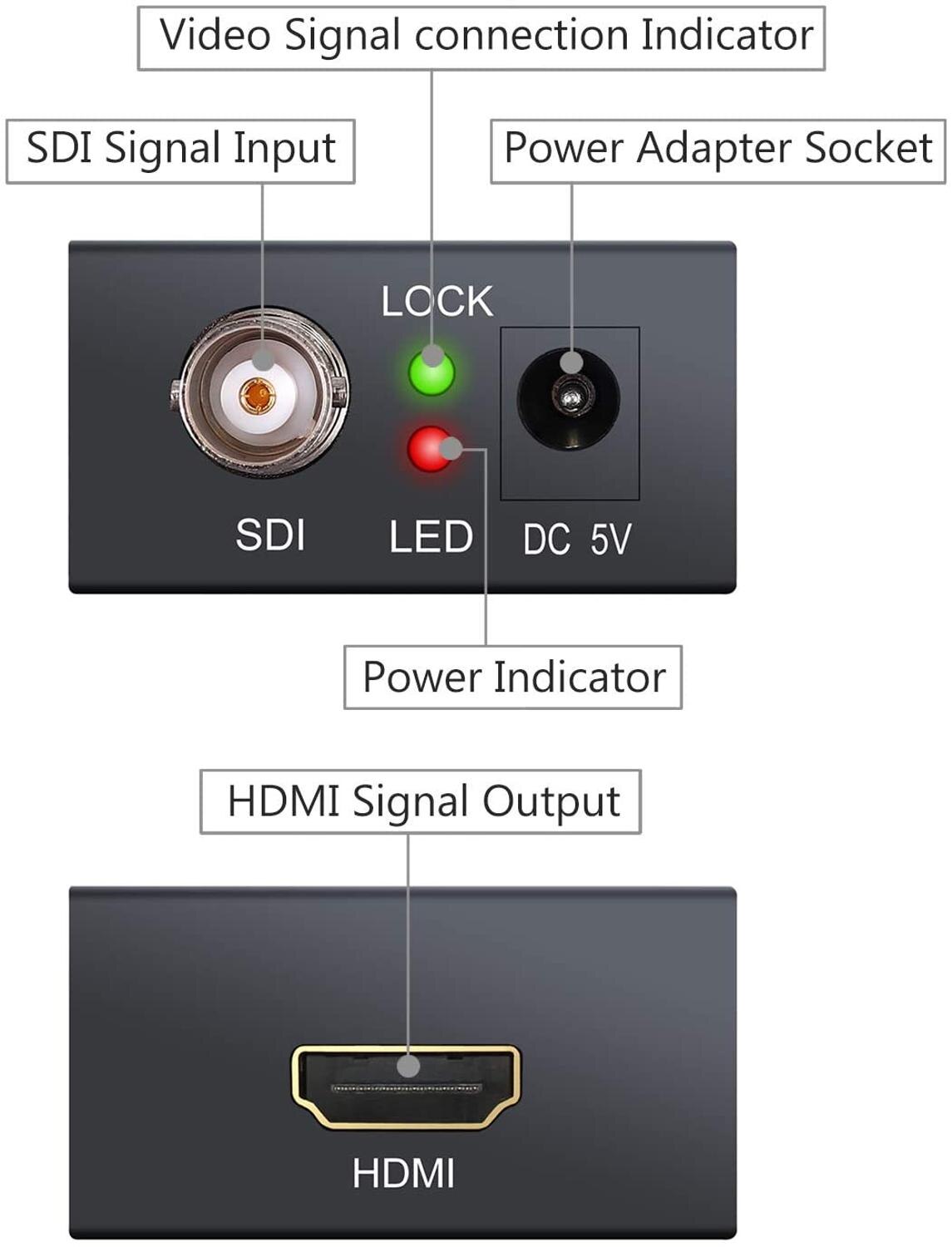

Operation Controls and Functions
SDI IN：This slot is where you connect the SDI source
LED: Red LED, power indicator
DC 5V: Power input
HDMI Out: This slot is where you connect a HDMI display with a HDMI cable
LOCK: Green LED, signal indicator.
Applications

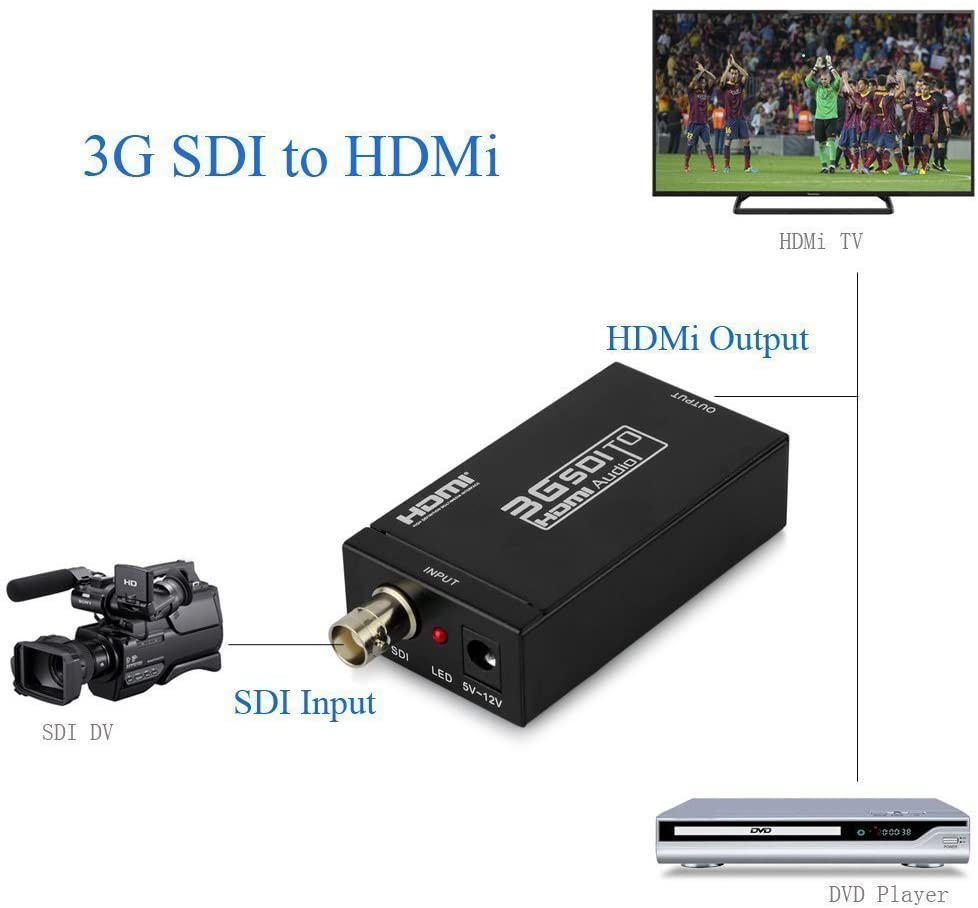

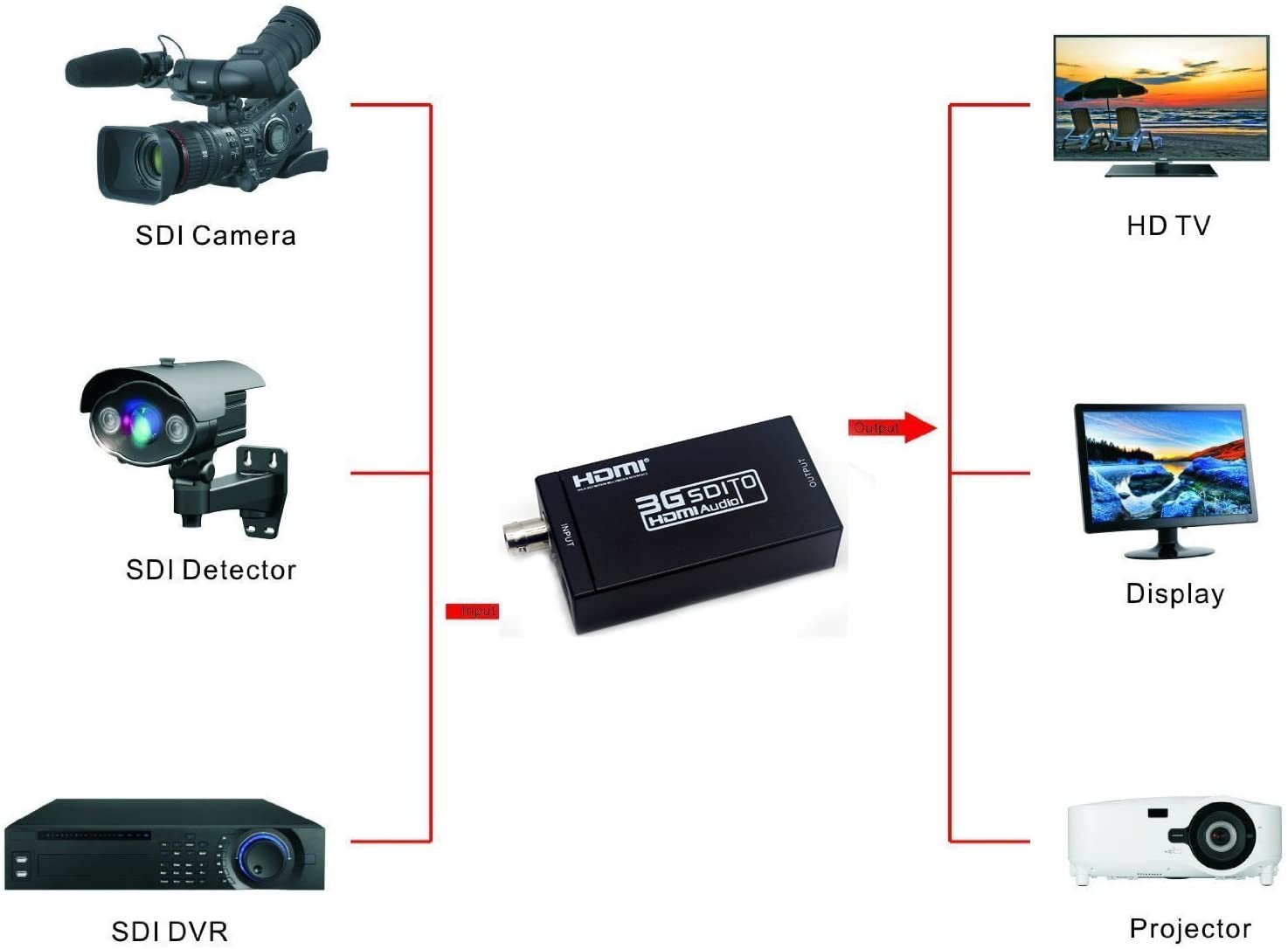

it converts HD-SDI or 3G-SDI Device, such as SDI Camera to HDMI output for HDTV HD monitor or projector for full 1080p display, convenience for education, business presentation, commercial promotion, conference, exhibition, etc.

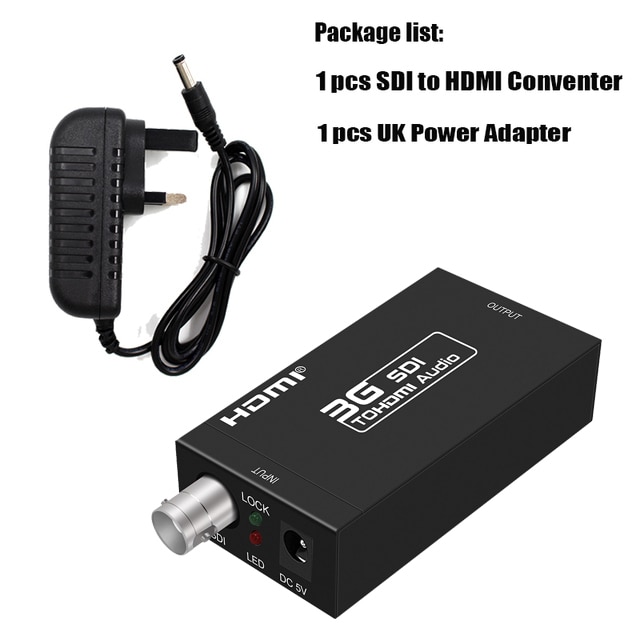

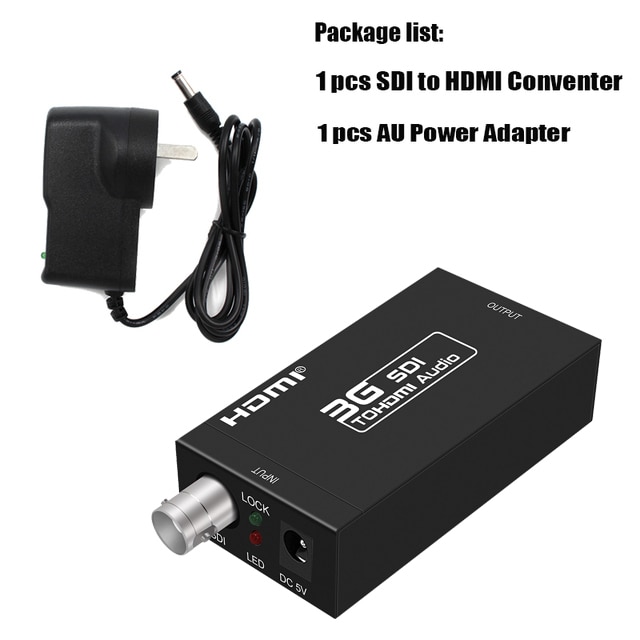

What’s Included
1x 3G SDI to HDMI Box
1x 5V DC Power Supply Adaptor
1x Operation Manual
Who are we?
Shenzhen Yuanxingwei Technology Co., Ltd. is a high-tech enterprise
A company specializing in the development and manufacture of audio and video
Video switch / splitter / expander / matrix / converter, of which
Have a complete and scientific quality management system. In line with the principle of "professionalism, service, quality", we are committed to providing comprehensive technical innovation
Products and solutions for our customers.
- Plug Type: EU plug
- Amplifier: No
- Package: Yes
- Bundle: Bundle 1
- Type: SDI TO HDMI CONVERTER
- Weight: 0.08kg
- Size: 100X65X25mm
- Model Number: Z21BK
- Connector B: HDMI-Compatible
- External Power Source: Yes
- Connector A: SDI
- Gender: Male-Female
- Brand Name: wiistar
- Origin: Mainland China
- Certification: NONE
