SZMZ B75 Motherboard LGA 1155 support 4*DDR3 USB3.0 SATA3 NVME WIFI Placa Mae 1155 plate board pc gamer B75 LGA1155
SALE
ID: 107880

SZMZ B75 Motherboard LGA 1155 support 4*DDR3 USB3.0 SATA3 NVME WIFI Placa Mae 1155 plate board pc gamer B75 LGA1155

4.7 (337 votes)
Price: US $177.45 / piece
Discount Price:
US $ 88.06 / piece
-50%
Ships From
Bundle
Quantity

Buy Now
Add to Cart

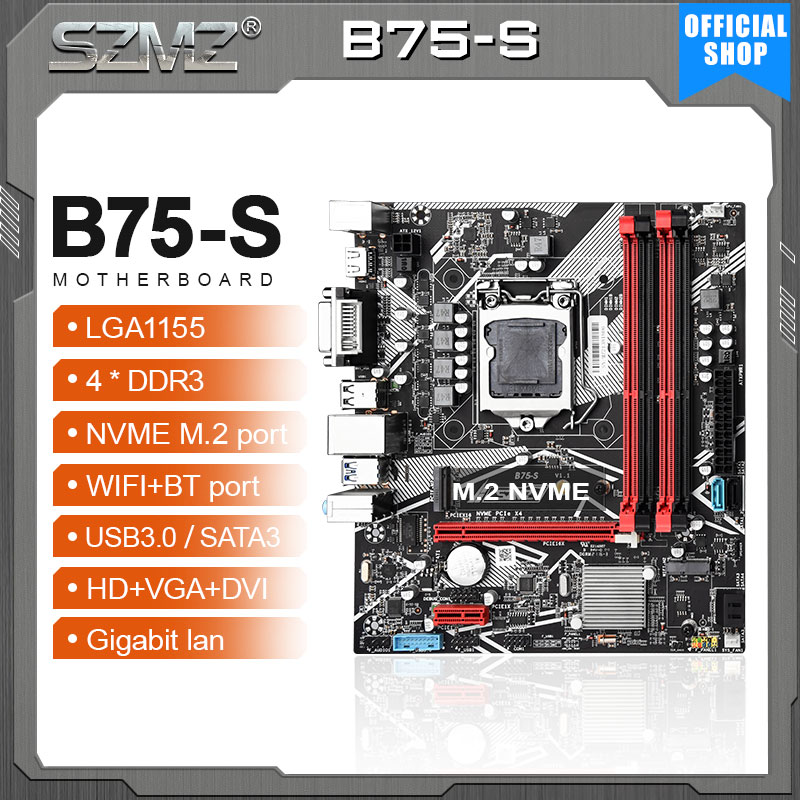

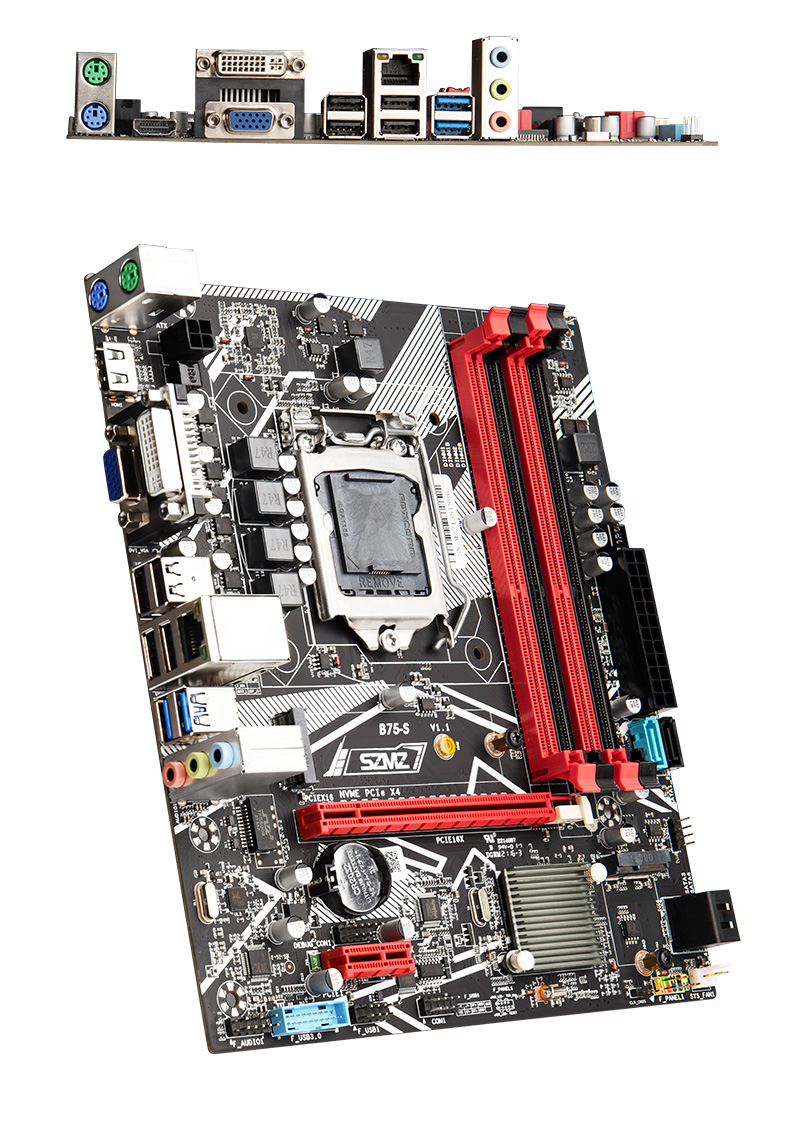

Motherboard Feature:

  • 8-Layer PCB , Stable and Cost-Effective .

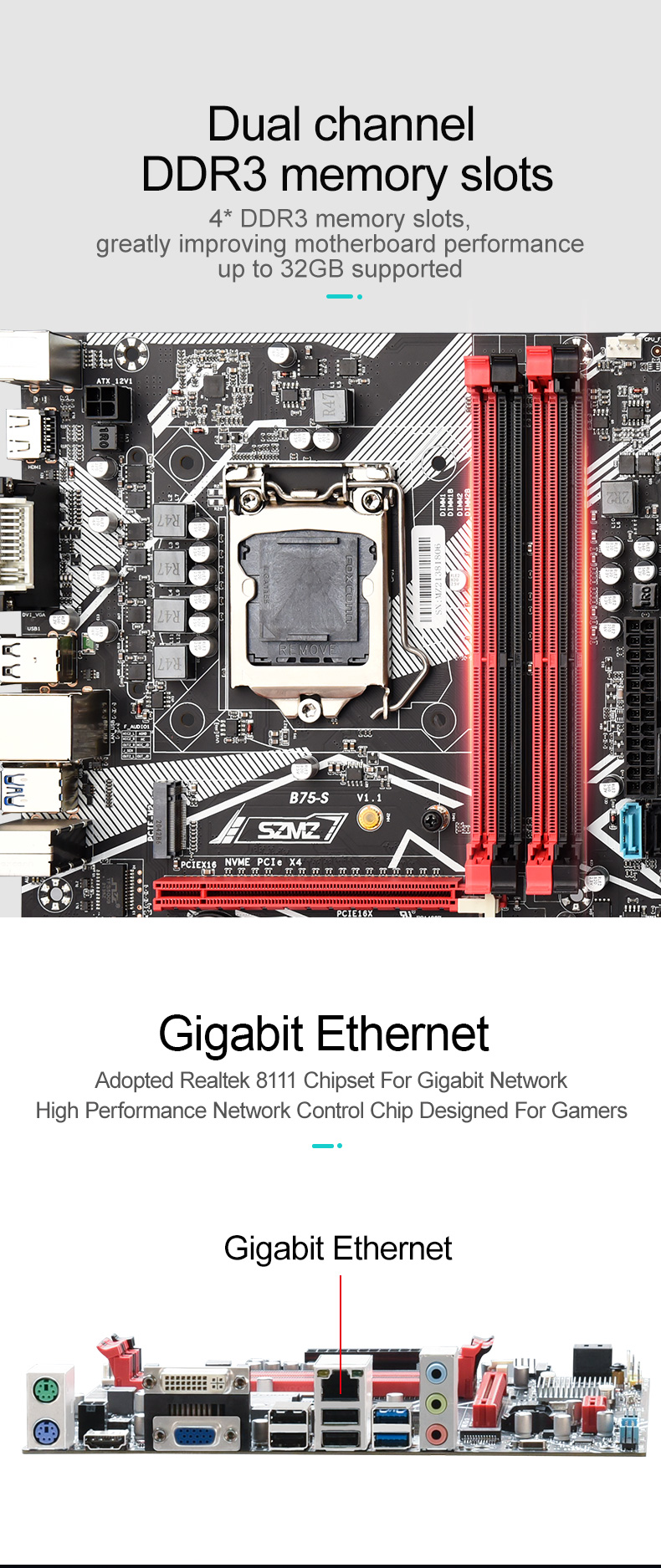

  • Support 4*DDR3 PC Memory Dual Channels up to 32GB.

  • Onboard High Speed NVMe M.2 port .

  • NGFF M.2 KeyA&E WIFI port (support WIFI+Bluetooth) .

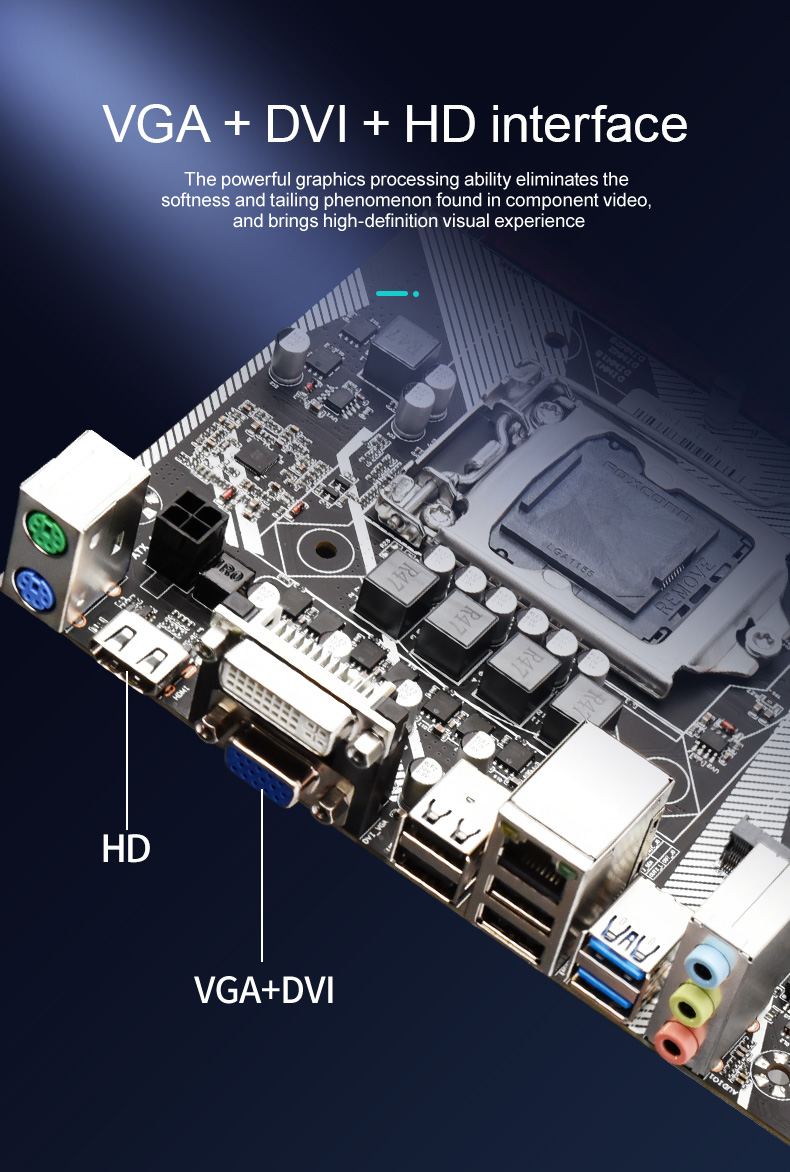

  • Onboard DVI , VGA , HDMI video output interface .

  • Support USB3.0 , SATA3.0 .

  • High compatibility for a higher experience.

  • All solid capacitors, fine workmanship, professional stability.

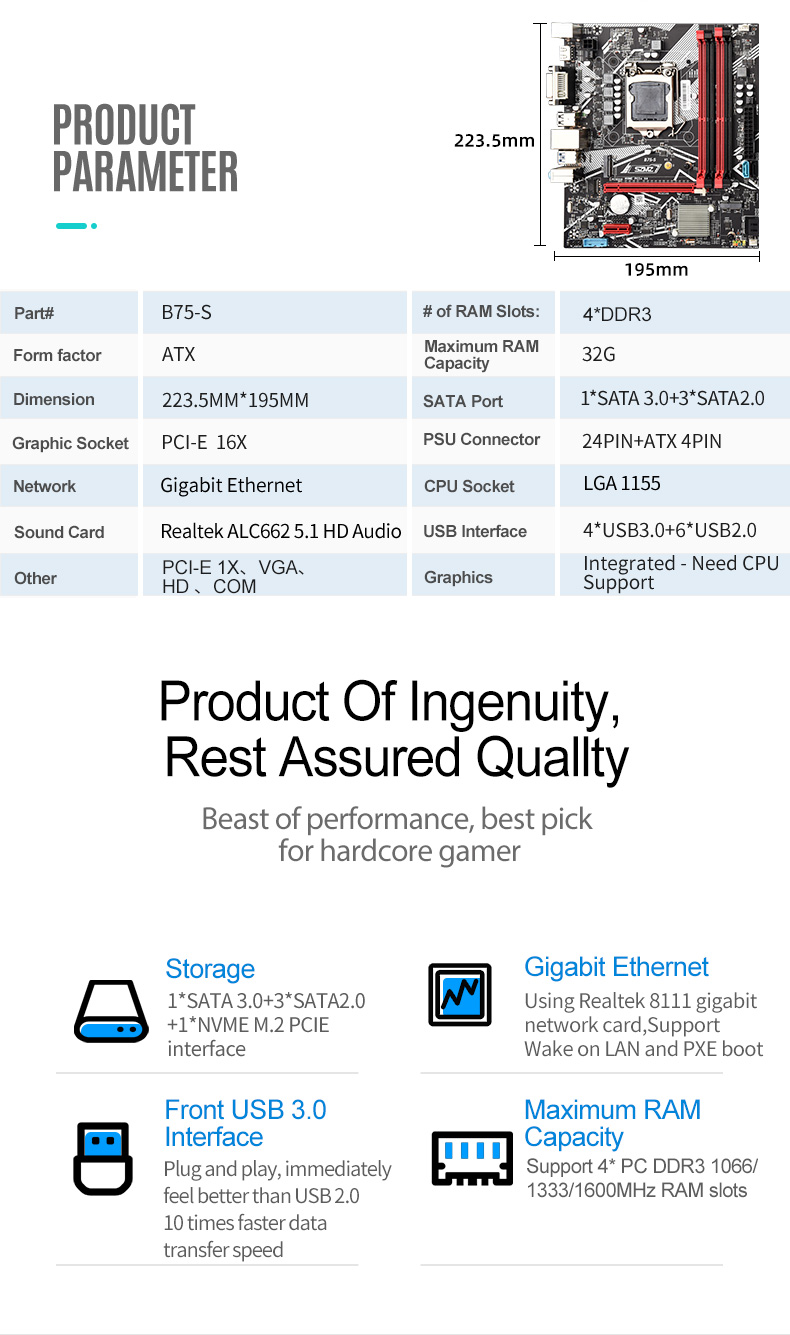

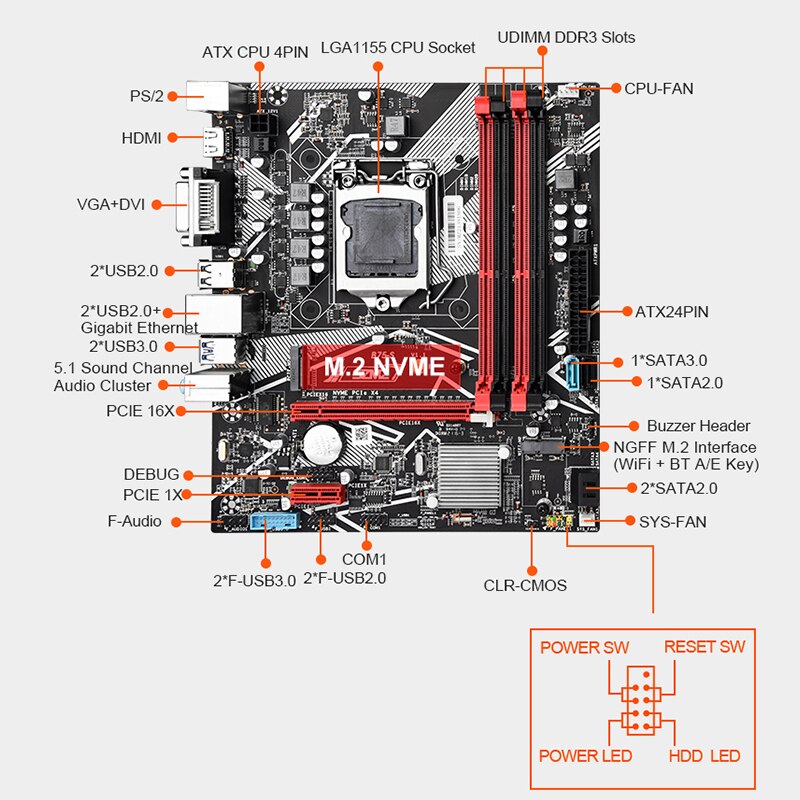

Motherboard Specification:

  • Model : SZMZ

  • Form Factor : M-ATX, 223.5mm x 195mm

  • CPU socket : LGA 1155

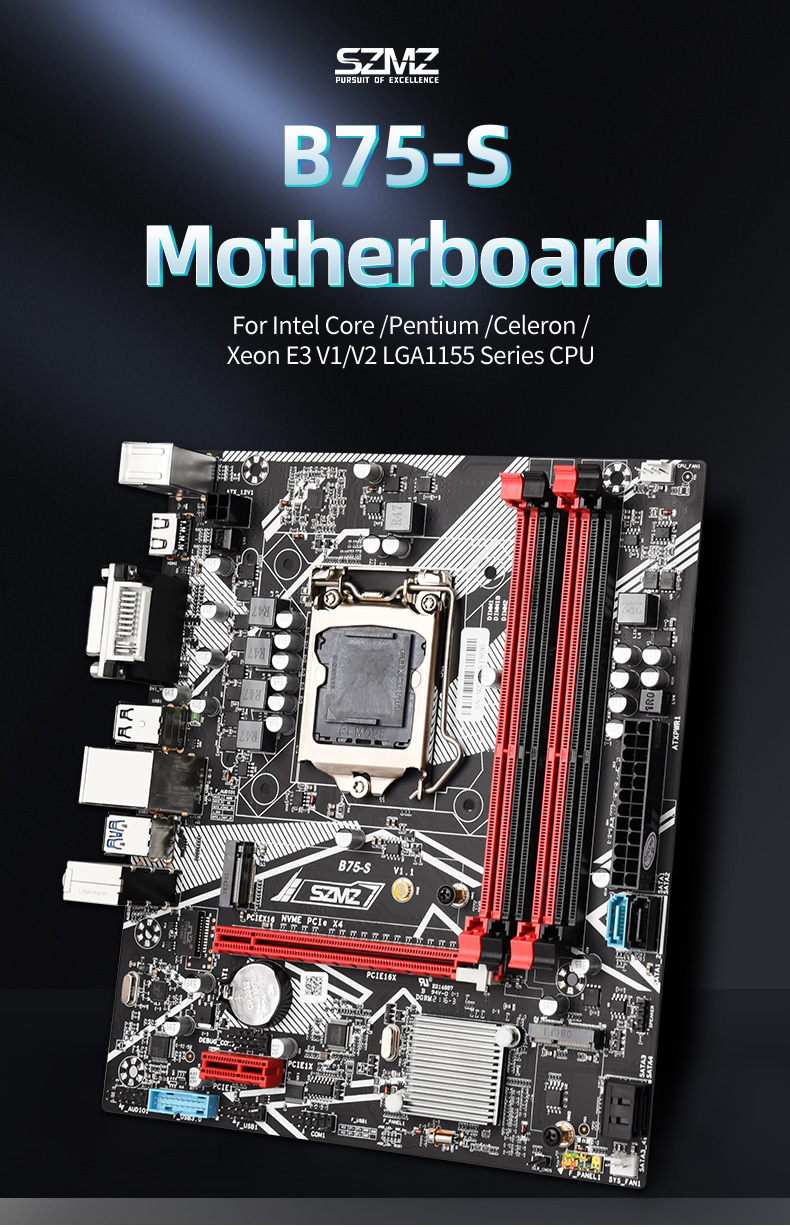

  • Processor supported : support Pentium / Celeron / Core i3 i5 i7 , 2nd generation and 3rd generation processors with socket type LGA1155

  • Memory socket : 4* DDR3 PC RAM 1066/1333/1600MHz

  • Max memory : Support Dual Channel Architecture up to 32GB

  • Graphic card slot : PCI-E 16X , PCI-E 1X

  • Storage : 1* SATA3.0 , 3* SATA2.0

  • USB Ports : 4* USB3.0 , 6* USB2.0

  • Expansion slots : 1*NVME M.2 (PCIEx4 Gen2 speed) , 1*NGFF M.2 KeyA/E WIFI port (support WIFI+Bluetooth)

  • LAN : Onboard 1* Realtek RTL8111F Chipset, Gigabit Ethernet

  • Audio : Realtek Audio Codec ALC662, 5.1 Sound Channel Supported.

  • PSU Solution : ATX 4Pin + ATX 24Pin

  • Accessories : 1 x I/O Shield ,1 x SATA cable


Buying instructions:

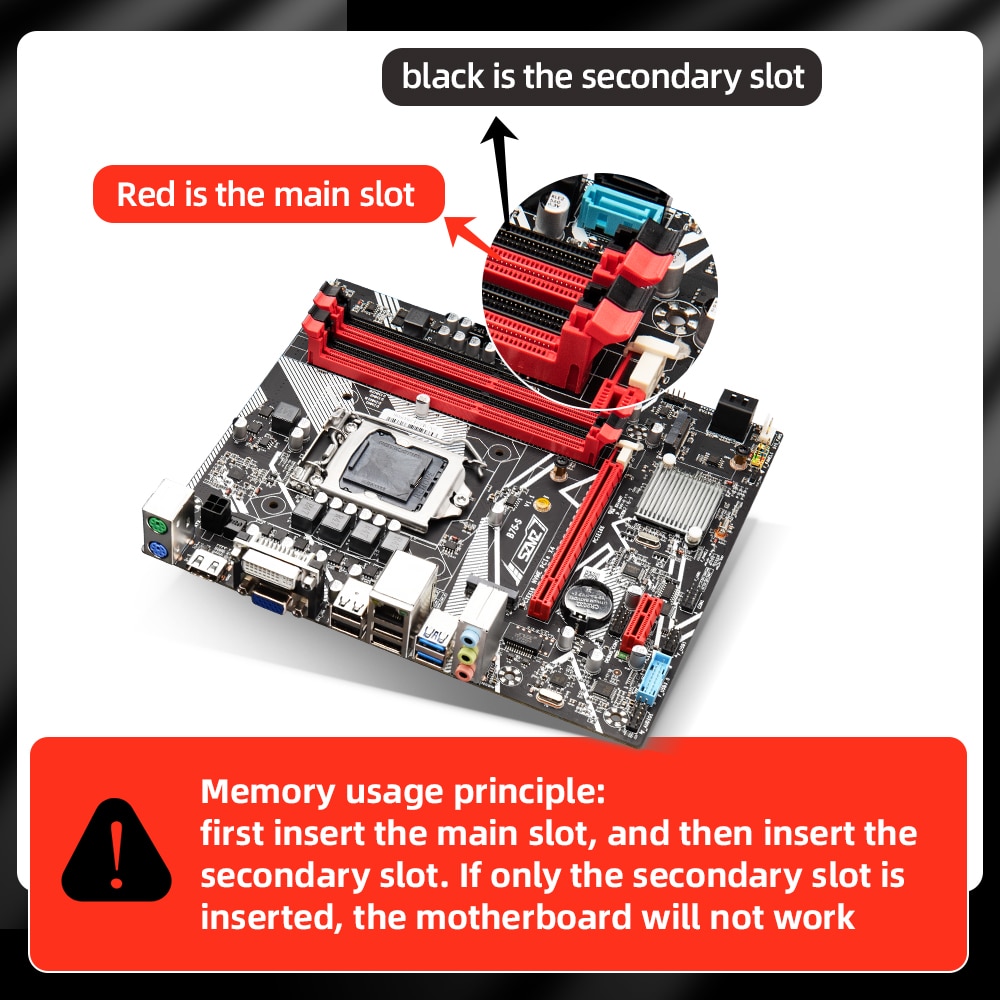

1: Memory usage principle: first insert the main slot, and then insert the secondary slot. If only the secondary slot is inserted, the motherboard will not work.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4: For tax issues , please make sure that you can solve the customs clearance issues by yourself, and we do not bear customs duties. Thanks for understanding
5: The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom

Purchase Notes

  1.  Due to different batches of productions, there might be some difference between the pictures you've seen and the product you'll get, for example,boxes,colors of DIMM slots, SATA ports, PCI or PCI-E slots and other ports, are subject to change without prior notice.One thing for sure is that we never compromise on the quality of our products.

  2.  Motherboard battery will be removed before shipmentas CN post or customs has laid an embargo on battery.

  3.  If the parcel was broken when you signing it, please take a video of the parcel and report it to us. If the parcel was in good condition, please sign for it directly.

  4.  Please take an unpacking video as evidence for any potential problem like qty short or damage on arrival  (DOA).

Shipping Terms

We process and ship orders Monday -Saturday, and are unable to  offer weekend or holiday delivery.
All international customs duties and fees are subject to  individual country rules and regulations, and are responsibility of the buyer.Please consult local custom  office for details

Below is a general shipping guideline

  1. Motherboards will be packed in retail carton box with foam or bubble packing materials as cushion.  Packing method may vary for differendt products.

  2. items will been ship out withinwithin 1-3 business days (except National Holidays) upon full payment receipt.

  3. Cntronic Standard Shipping , Usually 10 - 35 or 60 days to Worldwide

  4. Expedited Shipping , via DHL /EMS . DHL : 3- 10 days , EMS : 7-  22 Days

Buyer Commitment

  1.  All products are tested before shipment to ensure that they are functioning well. The buyer is responsible for ensuring compatibility,parts,  accessories, etc. for this product.

  2.  If there's any item in question,buyer must inform us promptly as possible after delivery.We will provide you with high-quality after-sales service in time.

Return Policy

  1.  Please do not return any items without a Return Merchandise Authorization  or other instructions by us . Any packages that are sent without our knowledge will be refused and no replacements will be  issued.






  • RAID Supported: No
  • Processor compatibility: Intel Pentium,Intel Core i7,Intel Core i3,Intel Celeron,Intel Xeon E Series,Intel Core i5
  • Usage Scenario: Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Others
  • Special Function: NONE
  • Onboard Connectors & Header: 24-pin Main Power Connector

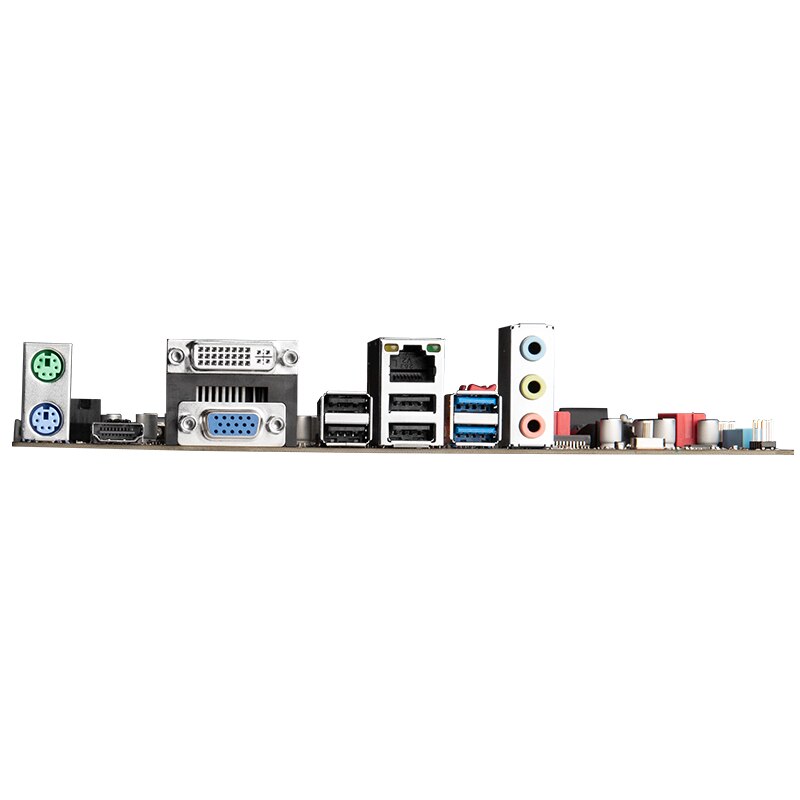

  • Back I/O Ports: 1x RJ45
  • Support USB Type: USB 2.0,USB 3.0
  • Onboard LAN: 1x RJ45
  • Audio Channels: 5.1
  • Number of M.2: 2
  • Number of SATA Ports: 4
  • Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe),M.2(SATA)
  • Number of PCI: 2
  • Number of PCIe x 1: 1
  • Number of PCIe x 4: 0
  • Number of PCIe x 16: 1
  • PCI - E standards: PCI - E 3.0
  • Number Of Memory Slots: 4
  • Support Memory Type: DDR3
  • Quality Certification: ce
  • Memory channel: Double
  • Package: Yes
  • Launch Date: 2013
  • Maximum Ram Capacity: 32 GB
  • Form Factor: Micro-ATX
  • Chipset Manufacturer: Intel
  • With CPU: No
  • Chipset: Intel B75
  • Application: Desktop
  • Socket Type: LGA 1155
  • Brand Name: SZMZ
  • Origin: Mainland China
  • Model Number: B75-S
