Universal Clone Remote Control Copy Function 433MHz RF Transmitter Auto Cloning Duplicator for Garage Door Car CAME Remotes

4.4 (654 votes)
Price: US $20.55 - 28.51 / piece
Discount Price:
US $ 13.55 - 17.61 / piece
-34%
Ships From
Quantity

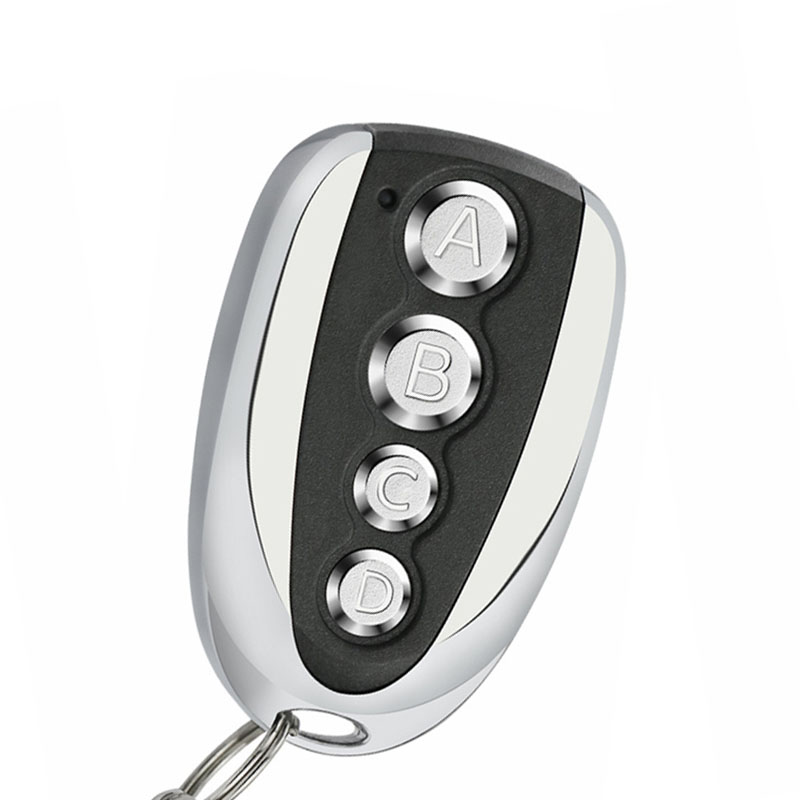

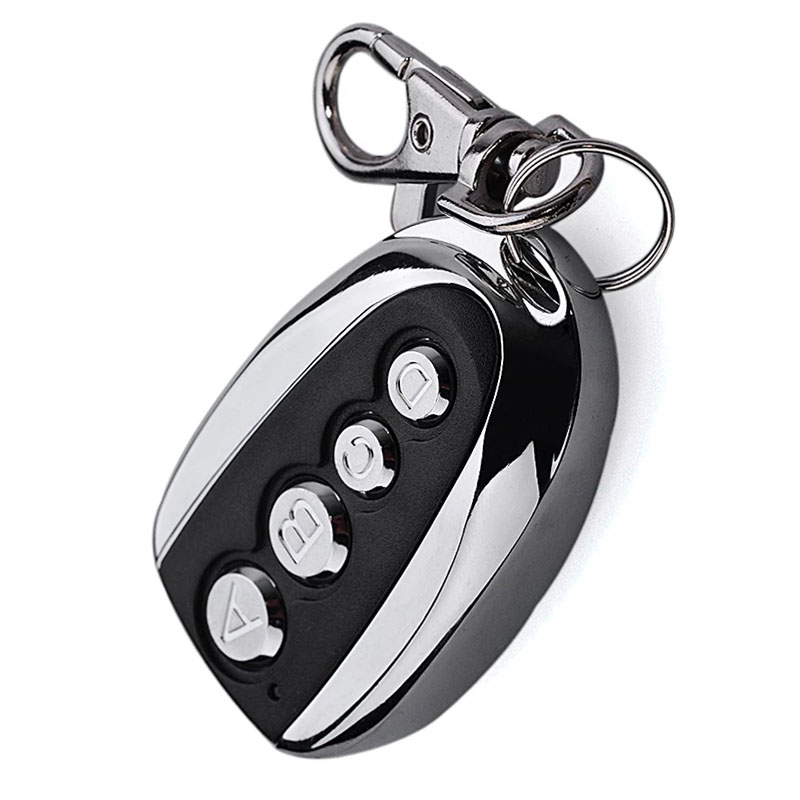

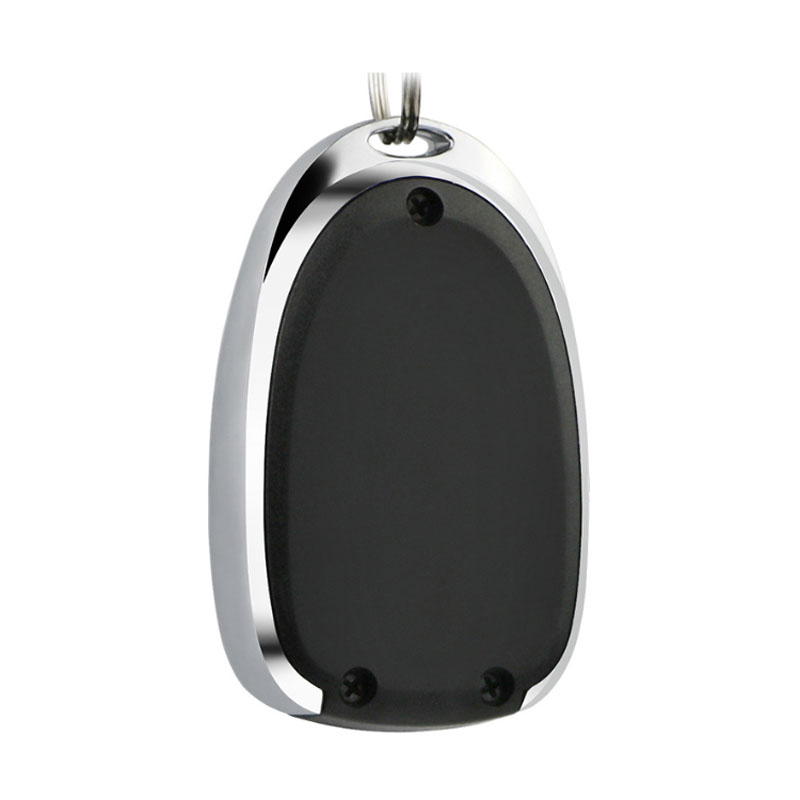

Diese 433.92 MHz Universal Copy Remote Controller Blue Light rf Transmitter Auto Cloning Duplicator For Garage Gate Door Car Key Fob


Transmitter Parameter

--RF frequency : 433.92MHz
--Operating voltage : DC12V
--Product Type: Copying/Duplicating Remote Control Transmitter Key Fob.
--Match Code Way: Copying while attached to another remote control (One to One Copying).
--Channel Supported: 4 Channel.
--Encoding Type: Learning Code (Example: 1527), Fixed Code (Example: 2262).
--Modulation System: ASK.
--Operating Current:<25mA.
--Transmission Power: +13dbm.
--Support encoding : A lot of code
--Transmitting range : Open space is more than 50 meters


--Battery : 27A 12V battery ( include 1 battery)


--Main Item Size: 5.5* 2.8 * 1.4cm / 2.16 * 1.1 * 0.55in


Programming

1-Reset
Press and Hold "A" and "B" buttons together---Led will flash 3 times. And then release "B" button and click "B" button 3 time---Led will flashing. ssucceed.

 2-clone your original remote
1. Put both remotes into "back to back" position. Make sure they have direct contact. Or the two remote controls should be placed as closely as possible( put the two remote controls on the desktop side by side with zero distance)
2. Press and hold one button on your original remote , and then press and hold one button on your clone remote. Keep holding until LED will make 2 blinks( Note: LED 2 blinks not to release button) Then 3 blinks then into steady and you have successfully cloned. ( each buttons follow the same above operation)

Note
If for some reason the clone does not go further then 2 blinks, it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.
For the presence of noise, it should avoid interference to operate, if the copy is not successful, it should recopy after clearing code.





Please confirm three conditions befor purchasing.
1:The original remote control is good.
2:The frequency: 433.92Mhz
3:The chip Code(Encoder Chip) as listed below
2260(all manufactures ,such as PT2260,SC2260,HS2260, LX2260, HX2260 ,etc),
2262(all manufacturers,such as PT2262,SC2262,HS2262, LX2262, HX2262 , etc),
1527(EV1527, HS1527, HX1527,SC1527,GP1527,CP1527,AD1527,SCL1527,TL1527,ZX1527)


PT2264,PT2240(LX2240,LX2241,SCL2240),CS5211,SMC918,AX5026,SMC926,AX5326-3,AX5326-4,FP527,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D,HT46F49E,PIC16F630,ULN2003
Ohter chips compatible with the chip can also be copied.Although different chip manufacture has different chip model prefix, it will be OK, as long as the chip model numbers are same.


Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control garage door \  Electric door \ house door \ shutter door \ expansion door \ gate door \ road gate
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control motor positive and negative rotation \  motor switch \ DIY


It is a ultra-strong Duplicating & Cloning transmitter. It can copy your original remotes(transmitter).
If you have any questions, please feel free to contact us.

Package include
Remote Control Transmitter (with battery)


Product Manual

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
















  • Support APP: No
  • Frequency: 433 MHz
  • Channel: 4
  • Package: Yes
  • Model Number: Copy Remote Control Duplicator for Garage Door Gate Car Remotes
  • Wireless Communication: RF
  • Use: Universal,Lighting,Electric Door,Automated curtains,Switch
  • Brand Name: Diese
  • Origin: Mainland China
  • Certification: CE,RoHS
  • type: Copy Remote Control
  • Support chip encoding 1: 2260,2262,1527,PT2264,PT2240,SMC918,AX50SMC926,AX5326-3,AX5326-4
  • Support chip encoding 2: FP527,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D,HT46F49E,PI
  • RF frequency: 433MHz
  • Transmitting distance: Open space is more than 50 meters
  • Battery: 27A 12V battery (include)
  • Shell: Plastic
  • Buckle: Metal
  • Inlucde Battery: Yes
  • Application scenario: Family, Farm, Factory, Office, Supermarket
  • Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
