PCI-E EXP GDC External Laptop Video Card Dock Graphics Card Laptop Docking Station（Expresscard interface）
132.53 68.35 $
SALE
ID: 114233
Quantity
Upgraded TH3P4G3 Thunderbolt-compatible GPU Video Card Dock Laptop to External Graphic Card for Macbook Notebook PD 60W 40Gbps
4.9 (88 votes)
Price:
US $173.38 - 497.33
/ piece
Discount Price:
US $
110.96 -
310.14
/ piece
-36%
- Ships From
- Color
-
-
TH3P4G3 Thunderbolt-compatible GPU PCIe Video Card Dock Laptop to External Graphic Card Support PD Charging 40Gbps
This is the upgraded version TH3P4G3 , the Thunderbolt-compatible GPU Dock. If your laptop have Thunderbolt-compatible 3 or Thunderbolt-compatible 4 interface, you can use it to connect a external graphic so that to play game,video editing,image processing and so on.
It comes with SFX and ATX power holder, so that you can use it more convenient.
Note:
It does not support the Macbook with M1 chip.
When you use Mac OS for Macbook, it only support AMD version graphic card. And when you use Windows system for Macbook, it only support Nvidia version graphic card.
Note: the graphic card and power is not included!
Specification
1. Model: TH3P4G3
2. Thunderbolt-compatible 3/4
3. Speed: 40GB/S
4. Aluminum alloy shell
5. Size: 200mmx140mmx40mm approx
6. Weight: 480g approx
7. USB 3.0 port extension, 5Gbps
8. Power: ATX/SFX/FLEX/other
9. Note:
Thunderbolt-compatible: Max 5V 3A
Thunderbolt-compatible/PD: Max 20V/3A (60W)
USB 3.0: Max 5V 2A
Features
1. Suitable for the laptop have Thunderbolt-compatible 3 or Thunderbolt-compatible 4 interface.
2. Easy to use. There is user maunal with the product.
3. Compatible with most mainstream graphics cards
4. Support 60W reverse charging (for Laptop)
5. Support daisy chain
6. Come with SFX and ATX holder, be convenient to install the graphice card, power supply and dock together.
Installation Configuration
The user manual include the installation guide
Thunderbolt-compatible Interdace Discrimination
TH3P4 Performance Charateristics
Measured Data od TH3P4G2 (base on AIDA64)
ATX & SFX Power Holder
ATX Case
The case for EXP GDC TH3P4G3 Thunderbolt-compatible GPU dock, support ATX,SFX and FLEX(1U) power supply.
Please note when you use FLEX(1U) power supply, you need to buy the accessory of SFX to FLEX(1U) at the same time.
Click the following picture to buy FLEX(1U) holder
https://www.Cntronic.com/item/1005004944412371.html
Specification
1. Material: Aluminum frame + 2 acrylic side plate
2. Weight: 1500g approx
3. Dimension: 366mm*182mm*160mm approx
4. Support max size of graphic card:
340mm*160mm*70mm
5. Use for: Install EXP GDC TH3P4G3 thunderbolt-
compativble GPU dock with power supply
Features
1. The case is a metal frame, strong and stable;
2. The 2 side of plate is acrylic material, you can see the device inside through the acrylic.
Please tear up the protection film on the acrylic before use it.
SFX Case
Note: If you want to use it for FLEX(1U), you need to buy the FLE(1U) holder separate
Click the following picture to buy
Specification
1. Material: Aluminum frame + 2 acrylic side plate
2. Weight: 950g approx
3. Dimension: 210mm*160mm*128mm approx
4. Support max size of graphic card:
200mm*150mm*50mm
5. Use for: Install EXP GDC TH3P4G3 thunderbolt-
compativble GPU dock with power supply
How to Assemble
Packing List
Option 1
1 x TH3P4G3 Thunderbolt-compatible GPU Dock
1 x 0.5m Thunderbolt-compatible Data Cable
1 x SFX Power Holder & Base
1 x ATX Power Holder & Base
1 x User Guide
(not include GPU )

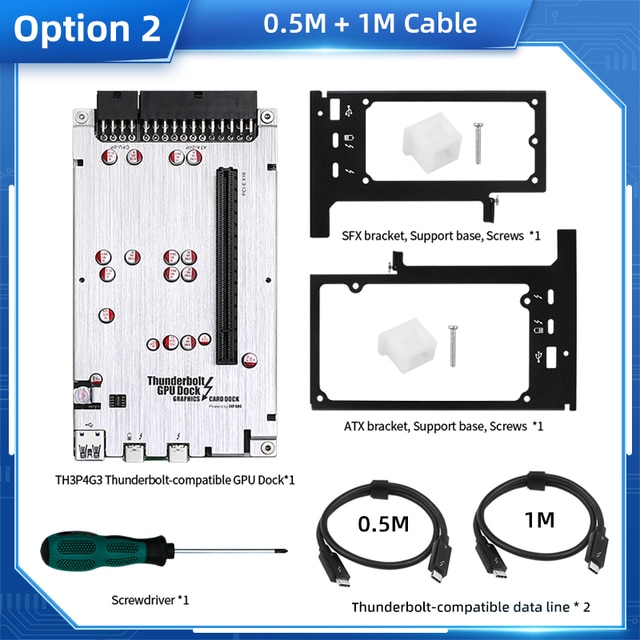

Option 2
1 x TH3P4G3 Thunderbolt-compatible GPU Dock
1 x 0.5m Thunderbolt-compatible Data Cable
1 x 1m Thunderbolt-compatible Data Cable
1 x SFX Power Holder & Base
1 x ATX Power Holder & Base
1 x User Guide
(not include GPU )
Option 3
1 x TH3P4G3 Thunderbolt-compatible GPU Dock
1 x 0.5m Thunderbolt-compatible Data Cable
1 x 2m Thunderbolt-compatible Data Cable
1 x SFX Power Holder & Base
1 x ATX Power Holder & Base
1 x User Guide
(not include GPU )
Option 4 (Only Case)
4 x Aluminum Alloy Plates
2 x Acrylic Plates
1 set x Screws
(Case fit for ATX/SFX/FLEX(1U) power supply)(not include GPU dock

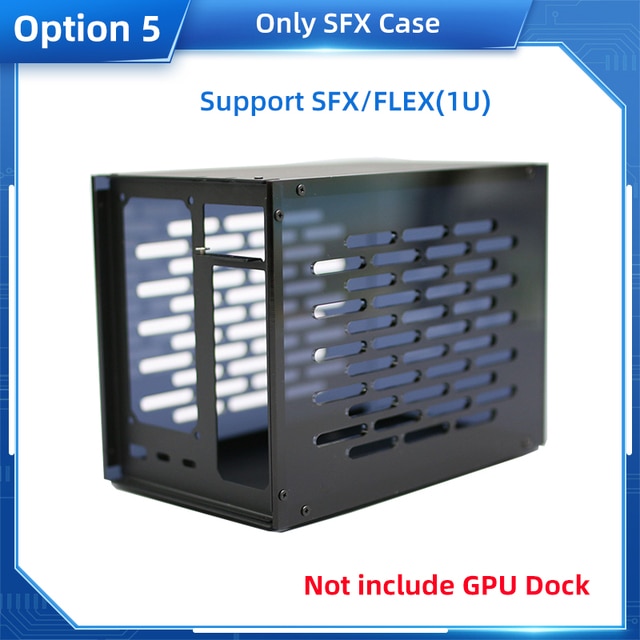

Option 5 (Only Case)
4 x Aluminum Alloy Plates
2 x Acrylic Plates
1 set x Screws
(Case fit for SFX/FLEX(1U) power supply)(not include GPU dock
Application
Not include power and graphic card
Buyer Show
- Package: Yes
- Length: 20cm
- Width: 14cm
- Material: Plastic
- Model Number: TH3P4G3(Latest)
- Brand Name: SHCHV
- Origin: Mainland China
- Certification: NONE
- Type: Laptop Docking Stations
- Support Interface: Thunderbolt-compatible 3/4
- Feature1: Support 60W reverse charging (for Laptop)
- With 2 Holder: SFX and ATX power holder
- Feature 2: Support daisy chain
- Support Device: Laptop with Thunderbolt-compatible 3/4 interface (support for Macbook)
- PCIe: PCIe 3.0 x 4
- Thundrtbolt Speed: 40Gbps
- For Macbook: Do Not Supper M1 M2 Chip Vesion
- Support OS: Windows & Mac OS(only for AMD graphic card when use for Mac OS)
