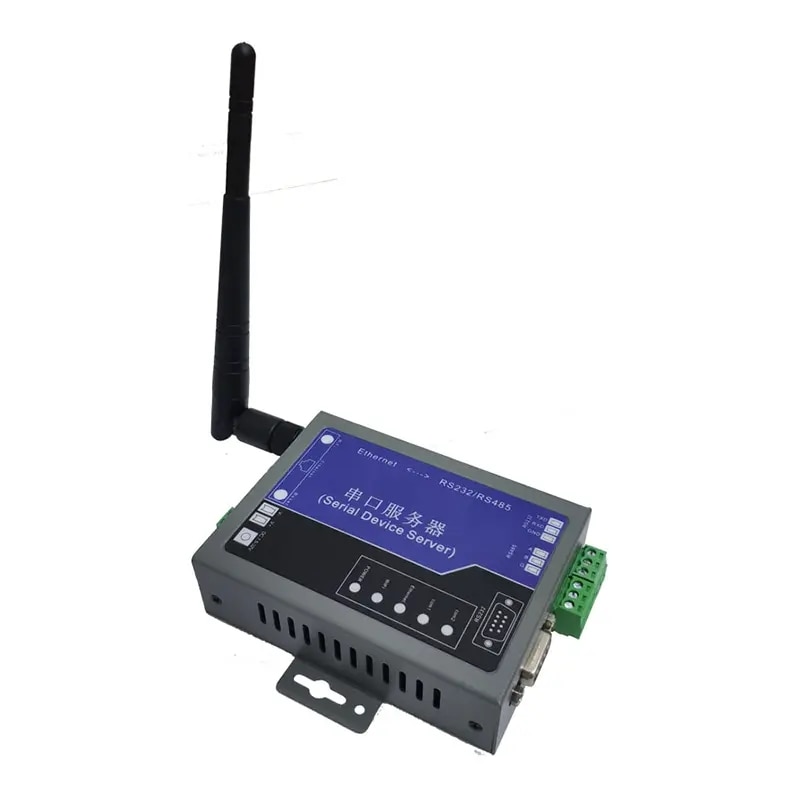

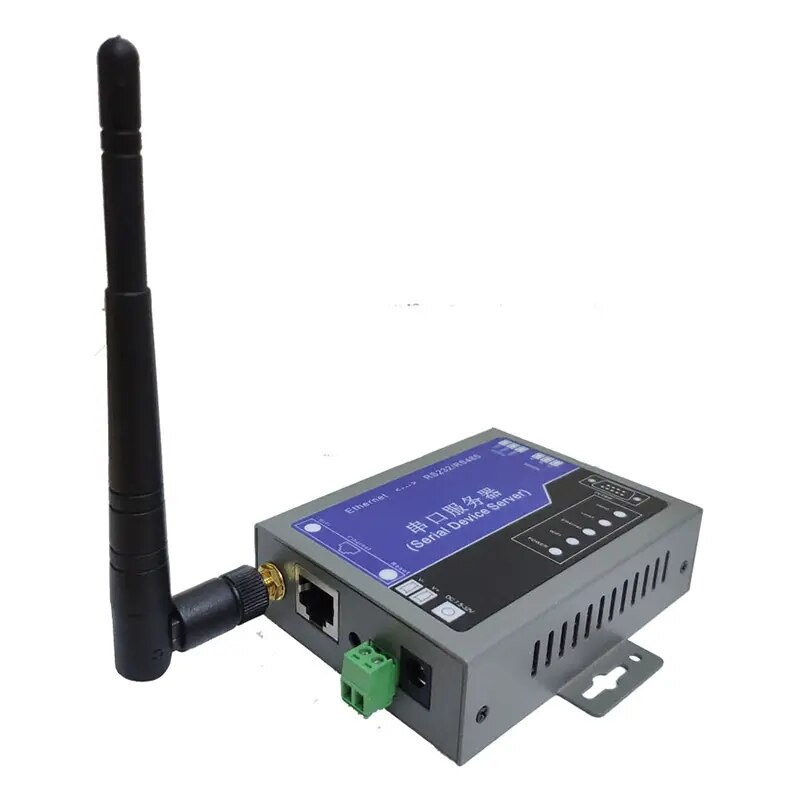

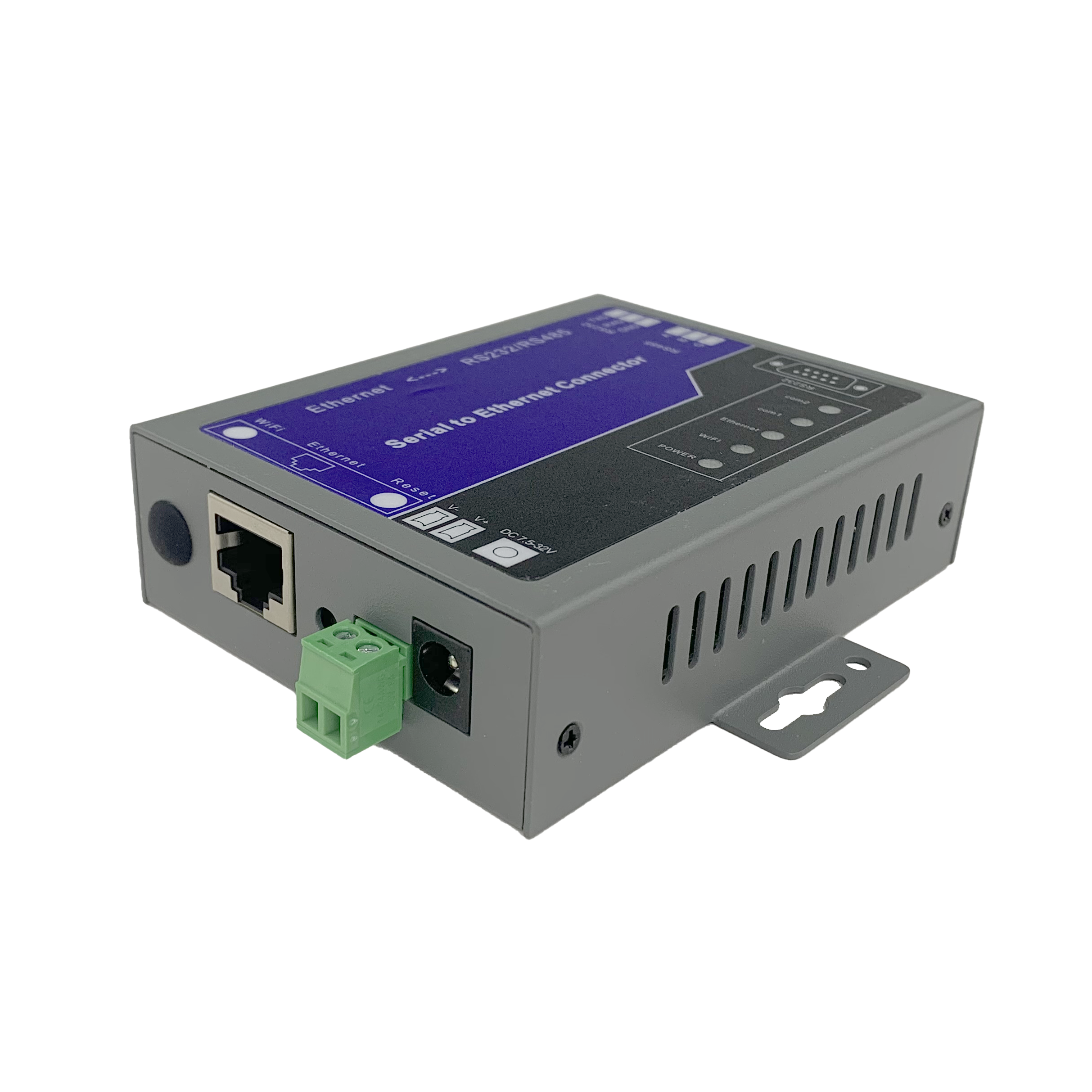

ZLWL SS2030 Factory Cheap Industrial Modem Serial Server Dtu External Antenna Gateway Serial Device Servers
0.0 ( votes)
Price:
US $110.32
/ piece
Discount Price:
US $
94.33
/ piece
-14%
- Ships From
Use RS232 and RS485 at the same time
WIFI(optional)

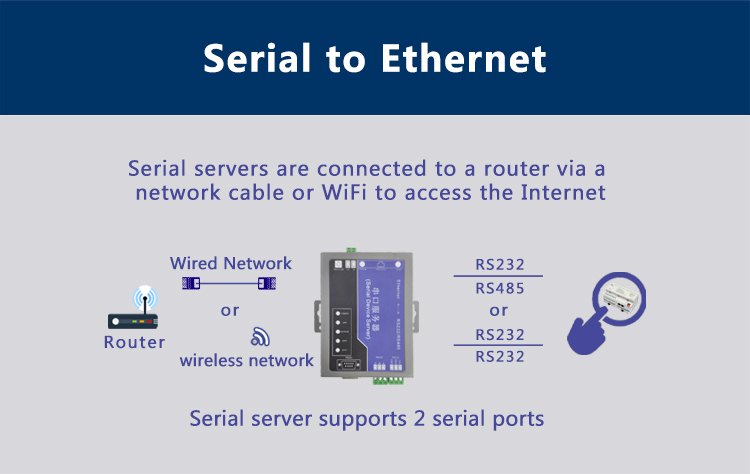

SERIAL TO ETHERNET
Serial servers are connected to routers via a network cable or WIFI, thus connecting to an Internet wired network
Serial servers support 2 serials
WiFi Parameter | |
standard: | Support ieee802.11b/g/n standard |
Secure encryption: | Support WEP, WPA, WPA2 and other encryption methods |
Transmitting power: | 16-17dBm(11g),18-20dBm(11b)15dBm (11n ) |
Receiving sensitivity: | <-72dBm@54Mpbs |
Interface type | |
LAN: | 1 LAN port, adaptive MDI / mdix, built-in electromagnetic isolation protection |
WAN: | One WAN port, adaptive MDI / mdix, built-in electromagnetic isolation protection |
Serial port | One communication RS485 / RS232 interface, suitable for the acquisition equipment with RS485 / 232 interface |

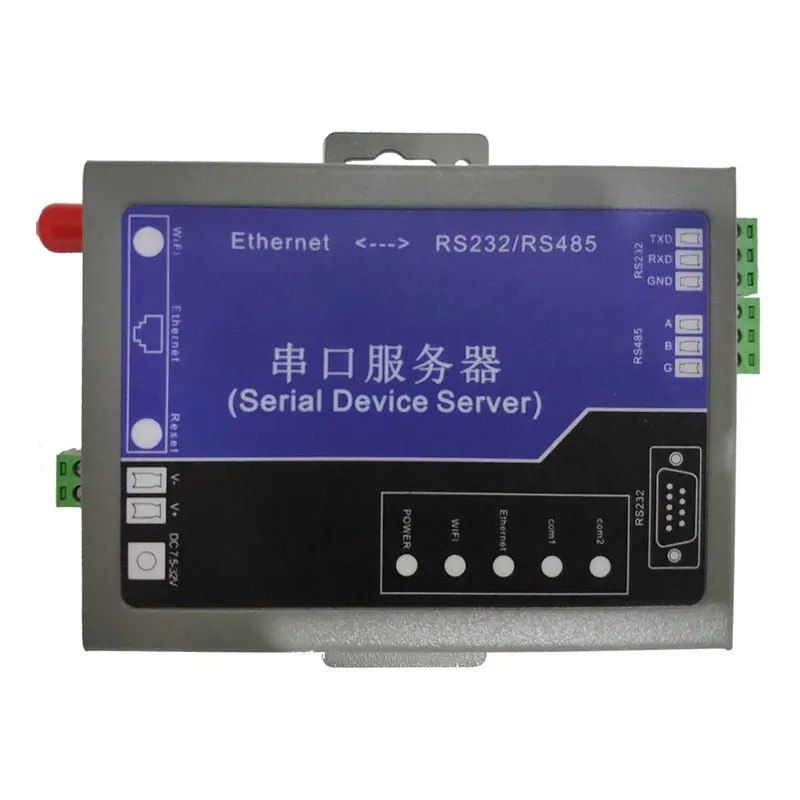

indicator light: | 1 X"PWR",1 X "WAN",1 X "LAN",1 X "WiFi",1 X "LINK" |

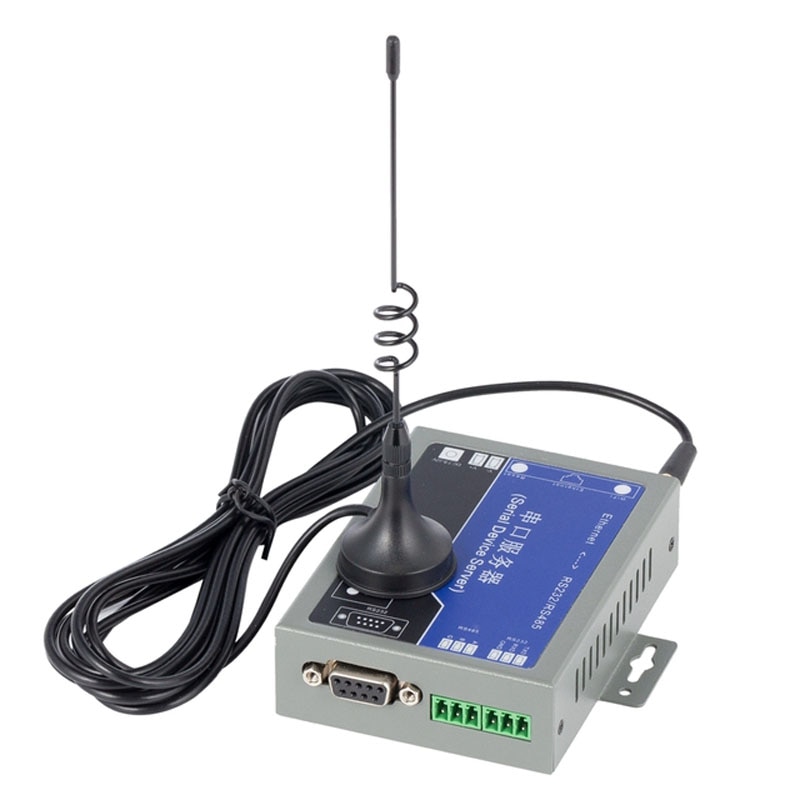

Antenna interface: | 1 wifi antenna interface for standard SMA |
Power interface: | 7.5V ~ 32V, built-in power instantaneous overvoltage protection |
Reset button: | By pressing this key for 10 seconds, the parameter configuration of the equipment can be restored to the factory value |

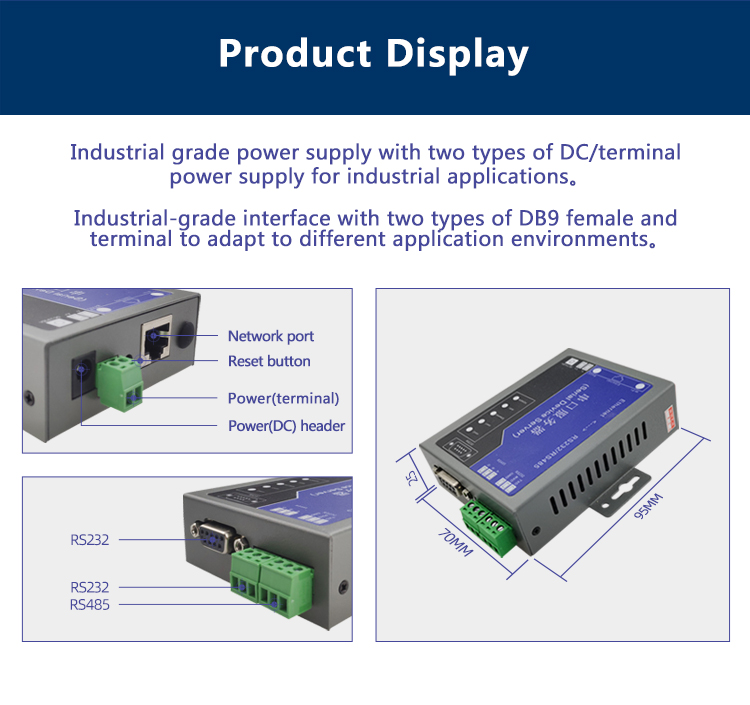

* power supply* DC 12V/1A* Shape characteristics* Case: sheet metal cold rolled steel case* Overall dimension: 95 × seventy-two × 25mm* Weight: about 185g | * Other parameters* CPU:560MHz* Flash/RAM:128Mb / 1024Mb* The working temperature: – 30 ~ + 70 ℃* Storage temperature: – 40 ~ + 85 ℃* Relative humidity: < 95% non condensing |
Serial Server

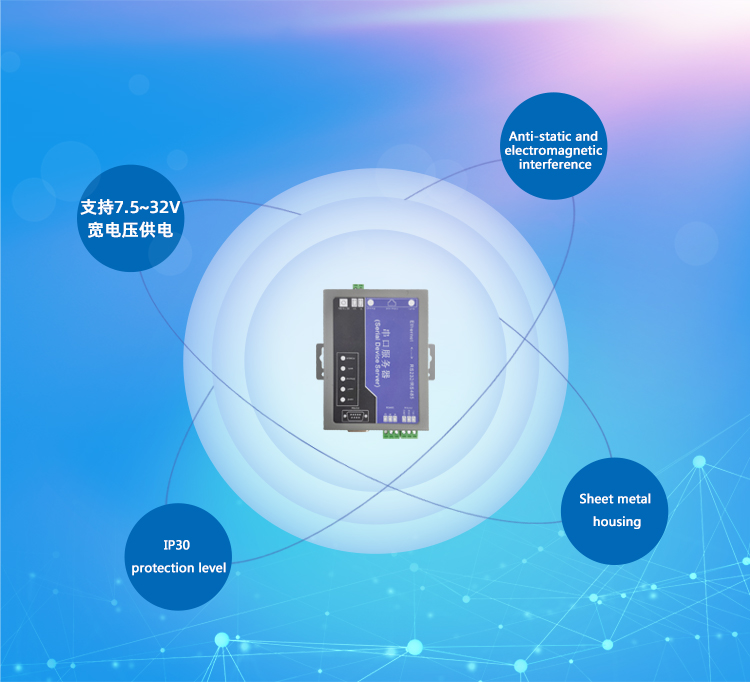

Industrial Design
* Adopt a high-performance industrial-grade 32-bit MIPS processor
* Low power consumption, low heat generation, fast speed, and high stability
* Support ear mounting
* Adopt sheet metal cold-rolled steel shell
* Power supply: 7.5V~32V DC
Network Characteristics
* Two-way communication, serial communication mode RS232, RS485 two options, unique interface set
Become an advantage without worrying about the problem of interface diversity
* Unique industrial function support, support for Modbus multi-host polling
* The TCP/IP protocol stack is integrated internally, and users can use it to easily complete embedded devices networking function
saves manpower, material resources and development time, so that products can be put into the market faster, Increase Competitiveness
* Support multiple centers
* Support static IP address or DHCP to obtain IP address automatically
* Support Keepalive mechanism, which can quickly detect false connections and other abnormalities and quickly reconnect
Stable and Reliable
* Adopt software and hardware watchdog and multi-level link detection mechanism, with automatic fault detection, automatic Dynamic recovery capability to ensure stable and reliable operation of equipment
* Multiple device self-check mechanisms to ensure smooth link and alarm
* ESD protection for each interface to prevent electrostatic shock
Platform Remote Management
* Equipment online monitoring * Remote equipment upgrade
* Remote parameter configuration * Remote restart and log query
Product Description
ChiLink IOT SS2000 serial server supports two-way serial communication, supports transparent transmission of WiFi or wired Ethernet or customized protocol transmission.
This series of products can be widely used in industrial automation, electric power, intelligent transportation, access control systems, attendance systems, vending systems, POS systems, building automation systems, self-service banking systems, and telecommunication computer room monitoring.
Features
Support hardware WDT, provide an anti-drop mechanism to ensure that the data terminal is always online
Built-in webpage, you can set the parameters through the webpage, or customize the webpage for users
Support remote firmware upgrade, firmware update is more convenient Simultaneously
Support multiple serial ports (1 RS232/RS485 each or 2 RS232)
Support timing restart

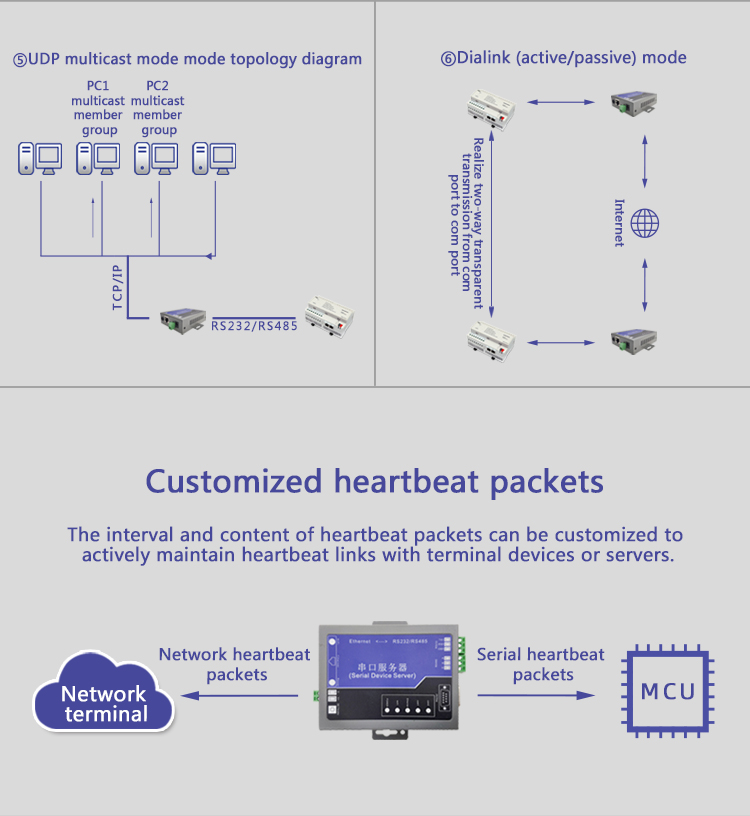

Support multiple serial port working modes: TCP/UDP client (server) mode, UDP segment mode, multicast mode, real serial port mode, couplet active (passive) mode.
- Package: Yes
- Interface Type: Ethernet
- Model Number: SS2030
- Brand Name: ZLWL
- Origin: Mainland China
- Certification: CE,RoHS
- Wireless Security: WEP/WPA/WPA2
- 2.4G Wi-Fi Transmission Rate: 150 Mbps
- VPN clients: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE
- Modbus:: Modbus TCP, Modbus RTU, Transparent Transmission, Pass Through
- Interface: 1 Ethernet, 2*RS232, 1*RS485
- Protocol: SNMP, ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS
- LAN Ports: 1
- Serial port 1: 1*RS232/1*RS485
- Serial port 2: 1*RS232
