Car MP3 Lossless Music Audio Player Wireless Bluetooth MP3 Decoder Board FM Radio Module Support Folder Switching Call Recording

4.9 (30 votes)
Price: US $29.58 - 31.60 / piece
Discount Price:
US $ 25.21 - 26.50 / piece
-15%
Color
Quantity

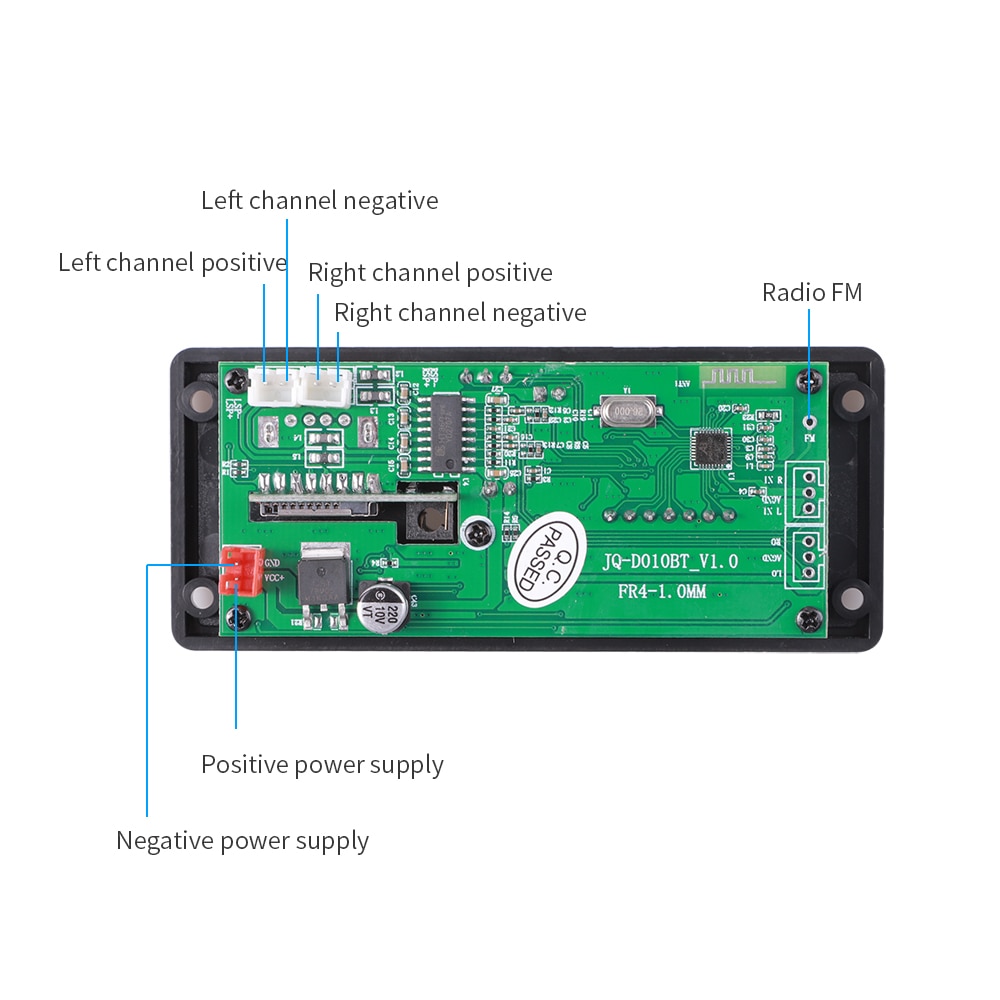

Model: JQ-D010BT (Power: 2*25W)

Main control IC: Zhongke Nanxun AB5362B

Bluetooth IC: Zhongke Nanxun AB5362B Bluetooth version 5.0

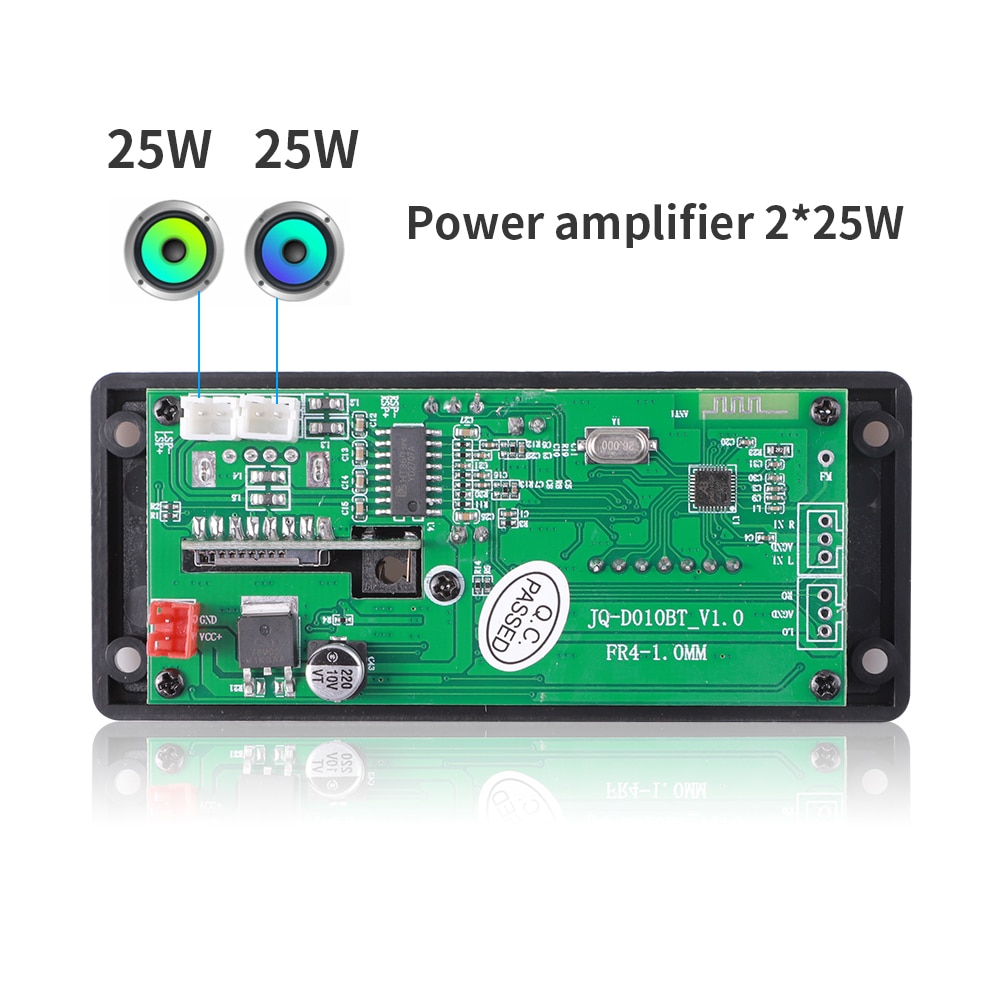

Power amplifier ICCS8673E, power: 2*25W

Bluetooth calling function

recording function

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Radio FM frequency: 87.5—107.5 MHZ

Folder switching function

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 7V-15V

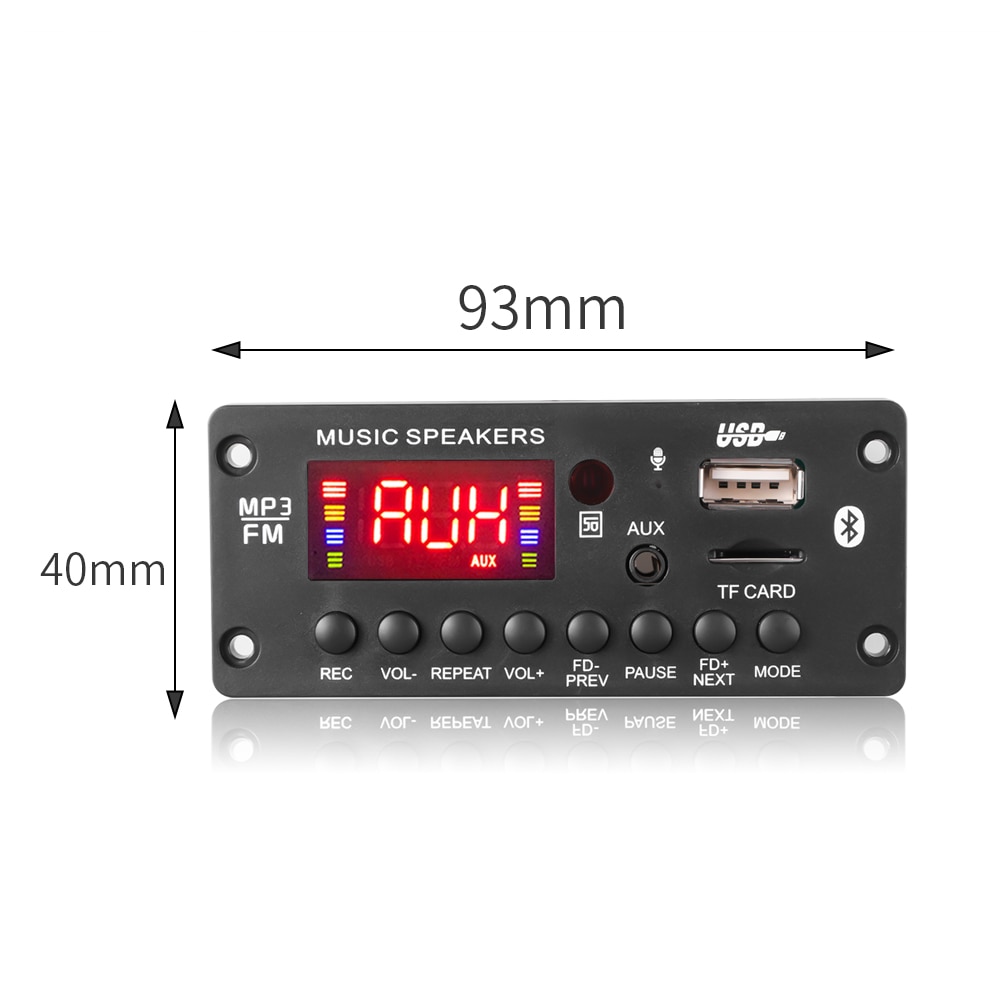

About the structure: Panel size: length 94 * width 40MM, the panel is surrounded by screw holes, the depth of the panel is 20MM

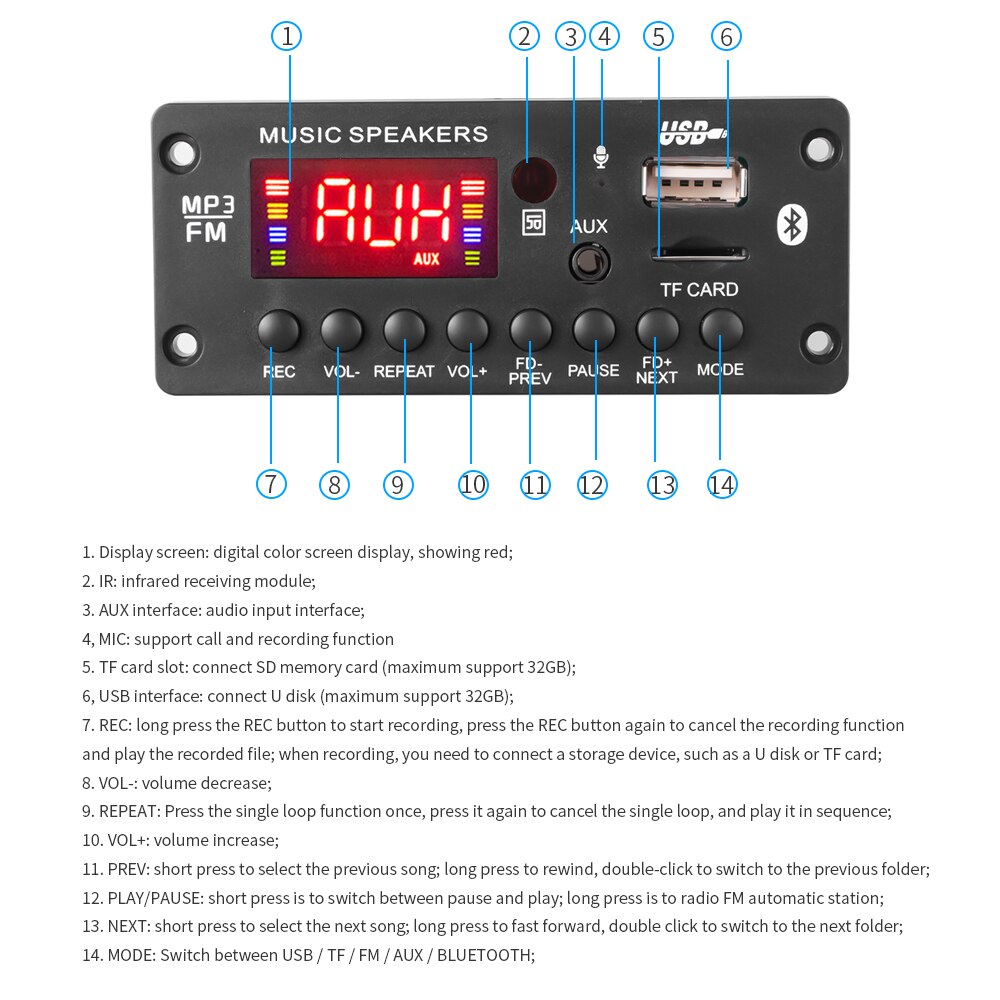

1. Button and interface function

1. Display screen: digital color screen display, showing red;

2. IR: infrared receiving module;

3. AUX interface: audio input interface;

4, MIC: support call and recording function

5. TF card slot: connect SD memory card (maximum support 32GB);

6, USB interface: connect U disk (maximum support 32GB);

7. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;

8. VOL-: volume decrease;

9. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;

10. VOL+: volume increase;

11. PREV: short press to select the previous song; long press to rewind, double-click to switch to the previous folder;

12. PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;

13. NEXT: short press to select the next song; long press to fast forward, double click to switch to the next folder;

14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;





1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and are for your reference only.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!1.You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!

2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.

3.We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from Cntronic. OR, you may choose to have a replacement.

4.We will bear all the shipping cost if the product are not as advertised.We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.

It is impossible to address issues if we do not know about them!


  • WIFI: No
  • DSP: Zhongke Nanxun AB5362B
  • Dimensions (WxHxD): 94*40MM
  • Body Material: Plastic
  • Bluetooth: Yes
  • Supports EBook Reading: No
  • Operation Mode: Touch Tone
  • Storage Type: Flash Memory
  • Have Speakers or not: Yes
  • Supports FM: Yes
  • Battery Specification: External Power
  • Signal Noise Ratio: ≥89dB
  • Supports Recording Function: Yes
  • Display Size: None
  • Package: No
  • Function: Voice Recorder,FM Radio,bluetooth
  • Model Number: MP3 Bluetooth Decoder Board
  • Style: Pure Audio MP3
  • Battery Life: > 20 hours
  • Screen: Yes
  • Balanced Out: Yes
  • External Memory: Yes
  • Audio Format Support: MP3, WAV,FLAC,ape,WMA
  • Brand Name: kebidu
  • Origin: Mainland China
  • Certification: CE
