ID: 70966

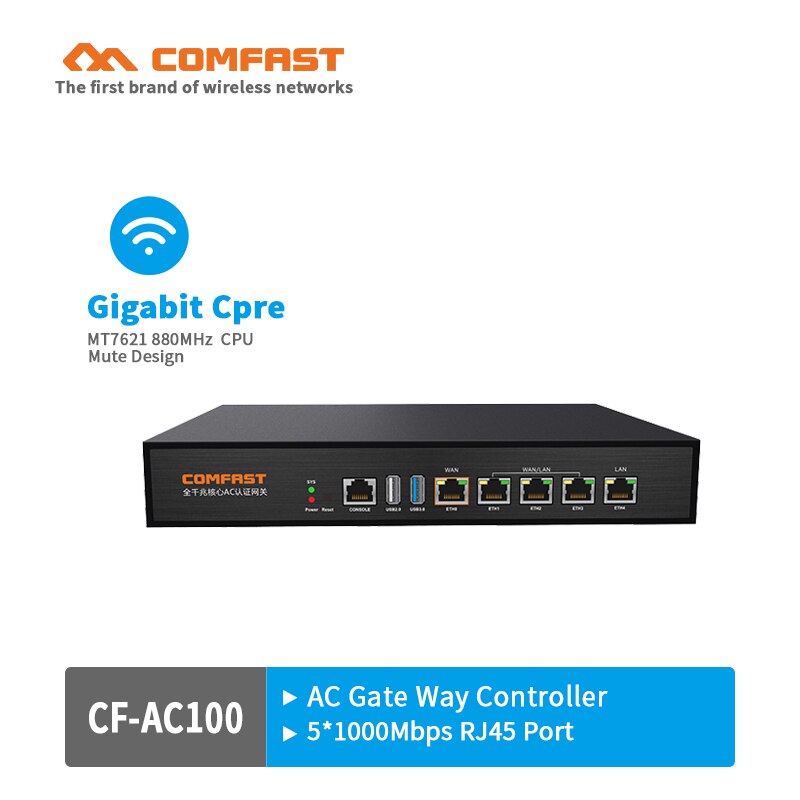

Comfast CF-AC100 880Mhz Gigabit AC Authentication Gateway Routing MT7621 Multi WAN Load balance Core Gateway wifi project router

0.0 (1 votes) | 2 orders
Price: US $379.72 / piece
Discount Price:
US $ 246.81 / piece
Ships From

Comfast CF-AC100 880Mhz Gigabit AC Authentication Gateway Routing MT7621 Multi WAN Load balance Core Gateway wifi project router

Model: CF-AC100
Colour: Black

Hardware specifications:MT7621 Dual-core 880MHz CPU , DDR3:512MB , Flash : 32MB ;

Physical interface :3*10/100/1000Mbps WAN/LAN ports + 1*10/100/1000Mbps WAN port + 1*10/100/1000Mbps LAN port , 1*DC Power connector , 1*USB3.0 port ,1*USB2.0 port ,1*console port ;

Button : 1*Reset button , 1* power ON /OFF button ;

Power : Built-in power supply 100~240V AC 50/60Hz ;
Indicator light :Power light ,System lights ;

Maximum power consumption :10W

Access support :The device can access and manage up to 128 units AP ;The device supports up to 500 terminal devices to access ;

Protection level :IP31

Installation method :Swing installation

Shell: Iron shell craft

Dimensions :280*180*44mm

Working Environment:
Working Temperature: -10'C~55"C
Storage Temperature: -40"C~70'C
Working Humidity : 10%~90%RH No-condensing

Storage humidity :5%~90%RH No-condensing

Software specification:

Cyber security ACL : Black and white list access control list based on IP and network segment ,MAC-based black and white list access control list ,Port filtering based on source port and destination port ;

Cyber security ARP defense :IP / MAC One-click binding ;  ARP Attack defense ; ARP Trust mechanism ;

Cyber security Attack defense : DDOS Anti-cyber attack ; Connection limit ,MAC filter ; prevent WAN portPing 、Prevent short bags、Prevent fragmentation of packages ;SNY 、UDP 、ICMP 、floodingAttack defense ;

Smart balance :Support multiple intelligent equalization of the same isp, bandwidth overlap ;

Policy routing :Support different ISP strategy routing, intelligent line selection ;

Fast continuity detection :Multiple WAN online status detection ,Automatically switch to other lines offline ;

Network address translation port mapping :Support port mapping ;

Network address translation DMZ : Support DMZ Host ;

Network address translation UPNP : Support UPNP ;

Network function DHCP server :Support DHCP dynamic address allocation and forwarding, support multiple address pools, support DHCP Sever ; support static address binding ;

Network function Static routing :Support Static routing , RIP V1 、RIP V2 ;OSPF Dynamic routing protocol function ;

Network function DSN set up : Unified configuration of DNS for each external network line ;

Network function Multi-line DNS :Configure the DNS of each external network line separately ;

Network function Chinese Network :Facilitate Chinese people to watch domestic video website resources abroad ;

Network function Directed routing :The equipment in the designated intranet takes the designated exit line ;

Network function Automatic redial :Configure external network line interval time redial, or fixed-point time redial ;

Network function One-line multi-dial :One external network port can support multiple dial-ups ;

Network function VLAN : Extend the intranet network, realize network isolation, and cooperate with the three-layer switch ;

Dynamic domain name update :Support 3322 .org 、dyndns .org 、 , Multi-WAN ports can update dynamic domain names independently ;

WEB management :Chinese and English WEB management ;

Configuration management :Support configuration file backup and loading;

Configuration file backup and loading :Support configuration file backup and loading ;

Local system upgrade :Support Local system upgrade ;

Partition backup :Prevent configuration loss due to unexpected circumstances, and can automatically restore the last configuration ;

AC management Group management :Unified configuration of AP's SSID, encryption method and other wireless configuration ;

AC managementEquipment management :Single and batch management equipment ;

AC management Batch upgrade :Batch firmware upgrade for single or multiple APs of the same model ;

Virtual Private Network(VPN):Support PPTV client, PPTV server supports borrowed lines ,Support L2TP client ;

Qos Intelligent flow control : Support four modes, balanced mode, web browsing priority, video, download priority and custom mode ;

Qos IP Speed limit : Support IP speed limit on the IP or IP segment in the network ;

Qos Intranet monitoring :Perform traffic statistics on devices in the network, view real-time upstream and downstream traffic and online time and other information;

WEB security :URL Keyword filtering ;

System log :Can view system log ;

System status monitoring :You can view the system usage status, CPU usage and traffic usage in the past week;

PING test : Support system ping ;

User settings: support to modify user management password ;

Time setting :Support copy system time, support network time synchronization, time server setting ;

System restart :Support time interval and time point to restart the device regularly ;

  • 5G Wi-Fi Transmission Rate: 867Mbps
  • Wired Transfer Rate: 10/100/1000Mbps
  • Wi-Fi Transmission Standard: 802.11n
  • 2.4G Wi-Fi Transmission Rate: 300 Mbps
  • Wi-Fi Supported Frequency: 2.4G & 5G
  • Supports WPS: Yes
  • Supports WDS: No
  • Number of USB Interfaces: 1 x USB 2.0
  • WAN Ports: 1 x10/100/1000Mbps
  • LAN Ports: 4
  • Function: Firewall,VPN
  • Application: Network Security
  • Package: Yes
  • Standards And Protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11g
  • Max. LAN Data Rate: 1000Mbps
  • With Modem Function: Yes
  • Type: WIRED
  • Brand Name: comfast
  • comfast Model: CF-AC100
  • Origin: Mainland China
  • Certification: CE,FCC
  • Products Status: Stock
  • WAN Ports: 1
  • Wireless: Wireless
  • VPN: Yes
  • Number of USB Interfaces: 1
  • Wi-Fi Transmission Speed: 10/100/1000Mbps
  • Max. LAN Data Rate: 1000Mbs
